eBOX100-51R-FL

Status : Available

Fanless Ultra Compact Embedded System with Intel® Core™ i5-7300U & Intel® Celeron® 3965U Processor, DisplayPort++, 2 COM, 4 USB and 2 GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX100-51R-FL
eBOX100-51R-FL
eBOX100-51R-FL
eBOX100-51R-FL
UL508

UL508

e13 & ISO7637

e13 & ISO7637

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Ultra compact size with high-performance
  • Intel® Core™ i5-7300U or Celeron® 3965U
  • M.2 Key E 2230 for Wi-Fi
  • M.2 Key B 2242 for storage
  • Supports Azure certified and AXView
  • Supports Intel® AMT 11
  • Multiple mounting designs: wall mount, DIN-rail, and VESA mount

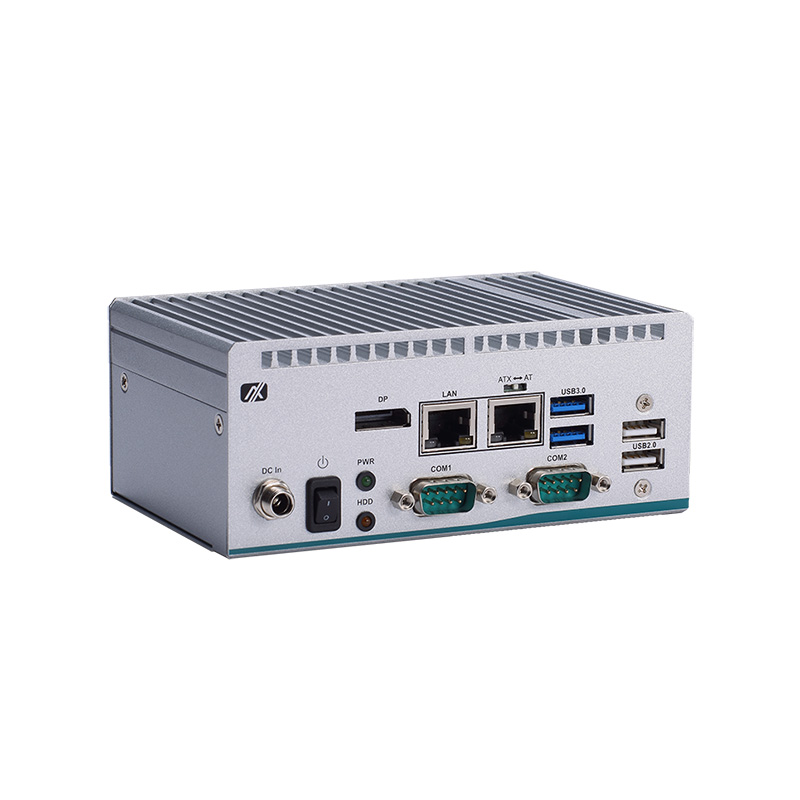

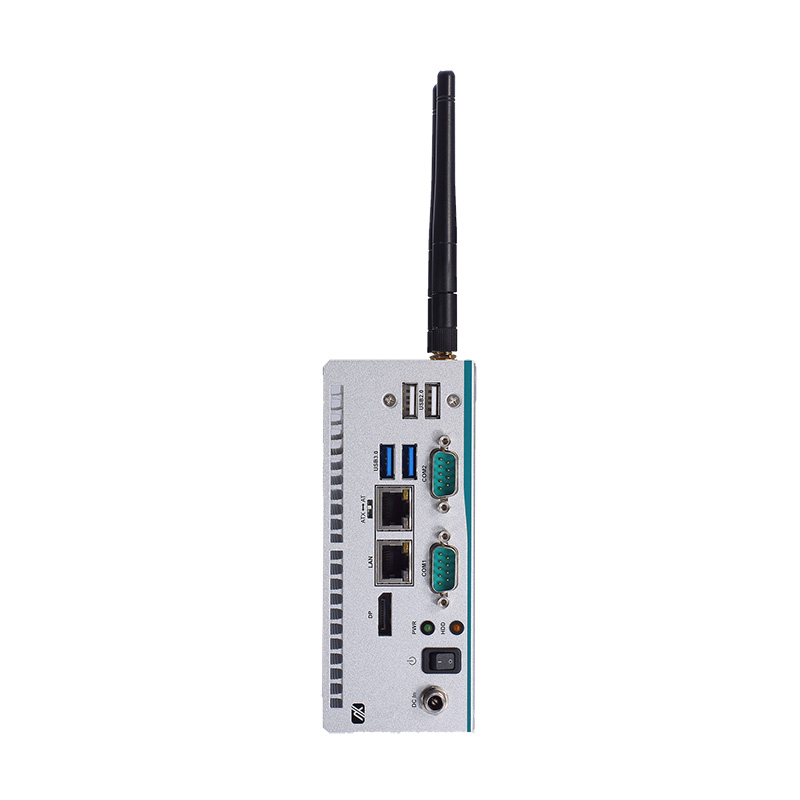

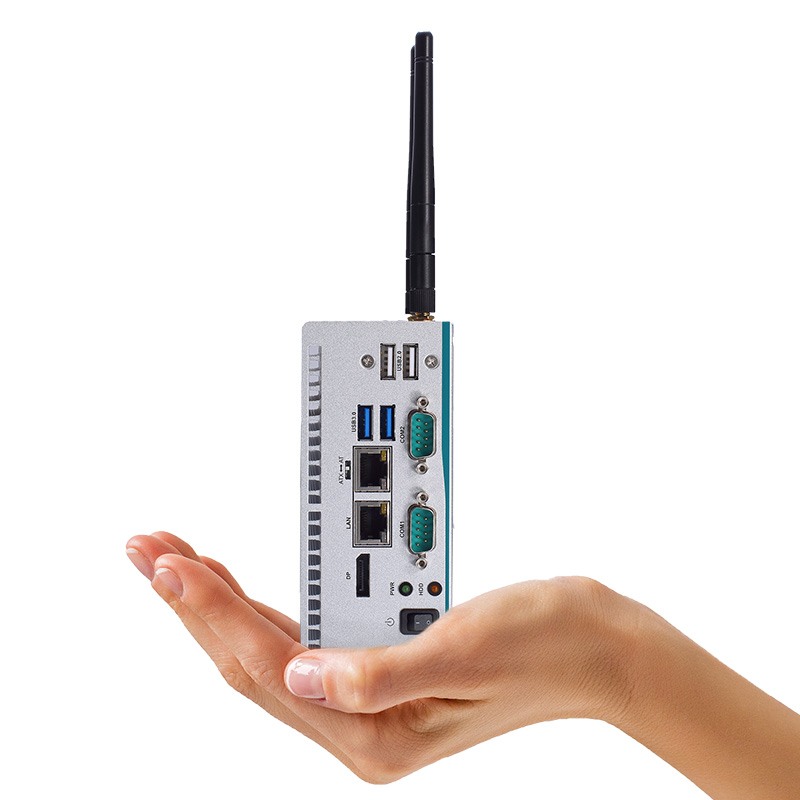

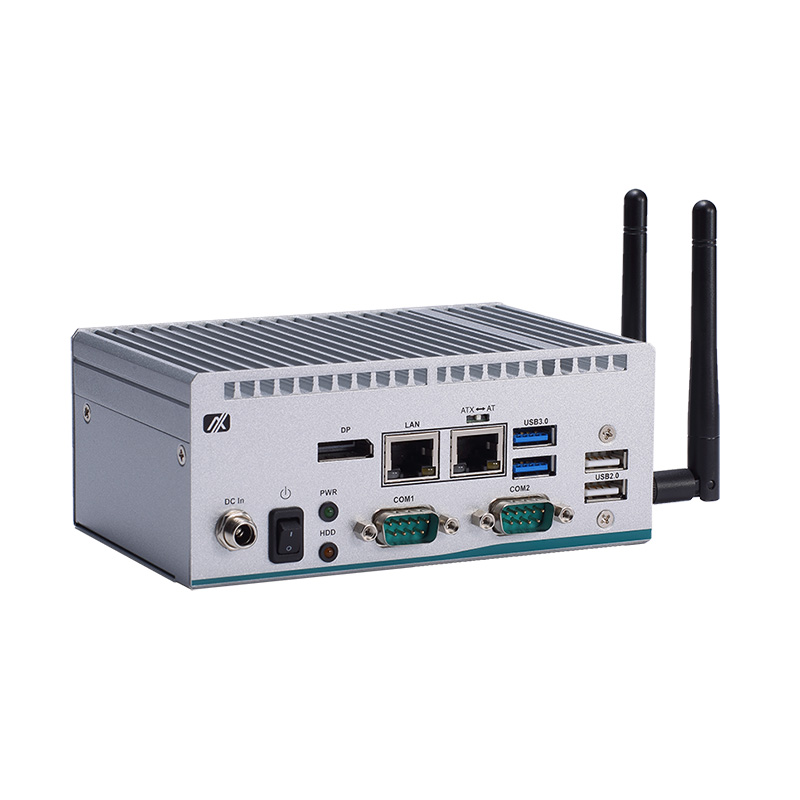

The eBOX100-51R-FL is a fanless ultra-compact embedded system with weight 600 grams only. As the smallest embedded system with Intel® Core™ ULT processor onboard, the eBOX100-51R-FL continues the design elements of eBOX100 series – ultra-slim form factor, rugged design, and rich I/O connectivity, allowing greater flexibility and a wider range of application in edge computing, IIoT gateway and extended fields. The eBOX100-51R-FL is powered by the high-performance Intel® Core™ i5-7300U or Intel® Celeron® 3965U processor. The front-facing I/O connectivity design provides convenient access for easy installation and maintenance. It comes with one DDR4-2133 SO-DIMM slot with system memory up to 16 GB. The eBOX100-51R-FL offers two RS-232/422/485, two USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one DisplayPort++, one AT/ATX quick switch, and two SMA type antenna openings; moreover, the embedded system is equipped with one M.2 Key E 2230 slot for Wi-Fi, one M.2 Key B 2242 for SATA storage, and one screw-type 12VDC power input connector.

Specifications

CPU
  • Intel® Core™ i5-7300U 2.6 GHz
  • Intel® Celeron® 3965U 2.2 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I219-LM, Intel® I210-AT)
Display
  • 1 x DisplayPort ++
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key B 2242 (for SATA storage)
Expansion
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • 1 x ATX power switch
  • 1 x AT/ATX quick switch
  • 1 x Screw type VDC power input connector
  • 2 x Antenna opening
Power
  • 12 VDC
Watchdog Timer
  • 65535 levels, 1 to 65536 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F) (with W.T. SSD/DRAM)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz,1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions
(W x D x H)
  • 142 x 87 x 58 mm (5.59" x 3.42" x 2.28")
Weight (net/gross)
  • 0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
Certifications
  • CE, FCC Class A, UKCA and IEC60945
EOS Support
  • Win 10 IoT, Linux
Software Support
  • AXView
Mounting
  • Wall mount kit
  • Din-rail kit
  • VESA mount Kit

Ordering Information

  • eBOX100-51R-FL-DC-7300U (P/N-E36K100108)
    Fanless ultra compact embedded system with Intel® Core™ i5-7300U, DisplayPort++, 2 COM, 4 USB, and 2 GbE LAN
  • eBOX100-51R-FL-DC-3965U (P/N-E36K100107)
    Fanless ultra compact embedded system with Intel® Celeron® 3965U, DisplayPort++, 2 COM, 4 USB, and 2 GbE LAN
  • DDDR4 SO-DIMM
    8G to 16GB
  • M.2 SATA SSD
    128GB or above
  • 8816K1004A0E
    Wall mount kit
  • 8816K1008A0E
    DIN-rail kit
  • 8816K1005A0E
    VESA mount kit
  • M.2 Wi-Fi module
  • 50966124050E
    12V 60W power adapter
  • Power cord
