eBOX560-52R-FL

Status : Available

Fanless Embedded System with Intel® Core™ i5-8365UE/Celeron® 4305UE Processor, HDMI/DisplayPort++, 2 GbE LAN, 2 COM, 4 USB, and 12VDC Power Input

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

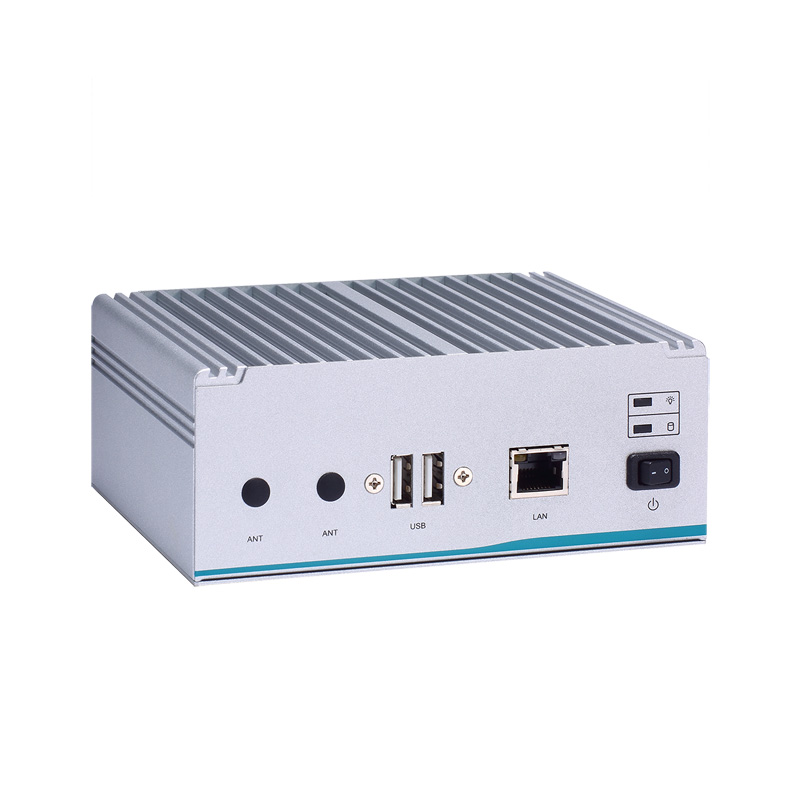

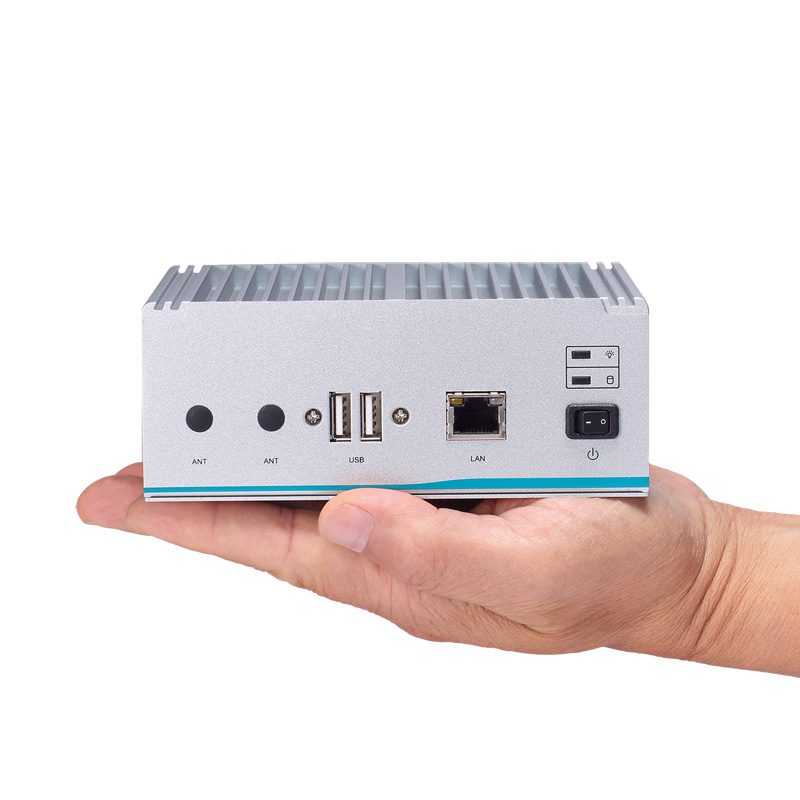

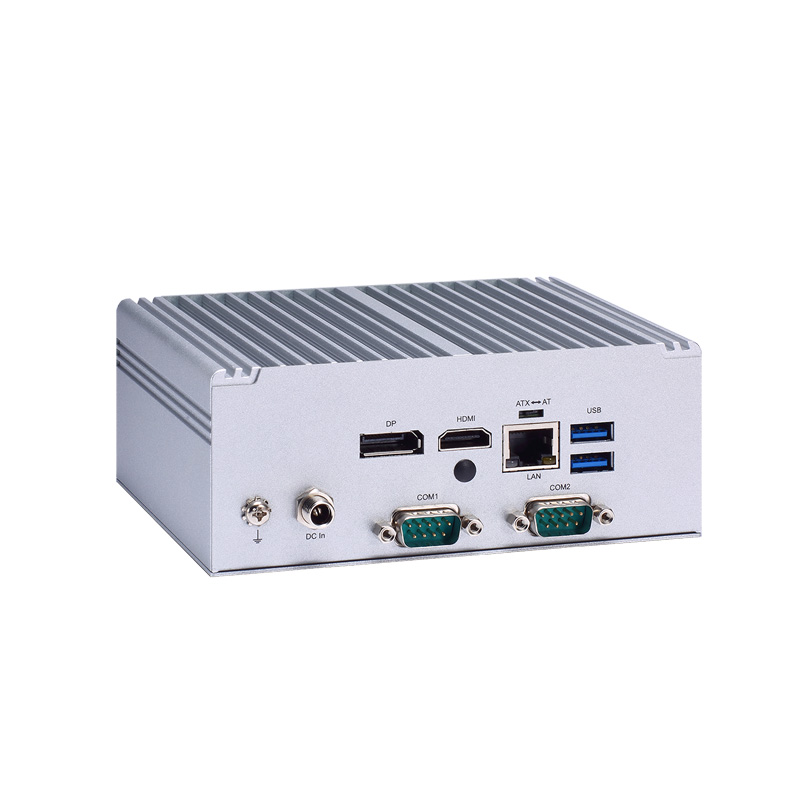

eBOX560-52R-FL
eBOX560-52R-FL
eBOX560-52R-FL
Fanless

Fanless

PoE

PoE

UL508

UL508

UL1604

UL1604

e13 & ISO7637

e13 & ISO7637

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 8th gen Intel® Core™ and Celeron® processor onboard
  • 1 M.2 Key E 2230 for Wi-Fi module
  • 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
  • 2 GbE LAN and 2 USB 3.1 Gen2
  • Supports DisplayPort++ and HDMI for dual independent displays
  • Multiple mounting designs: Wall mount, DIN-rail and VESA mount

The eBOX560-52R-FL. is powered by the onboard Intel® Core™ i5-8365UE or Intel® Celeron® 4305UE processors. It provides high-performance, power-efficient, and abundant I/O interfaces in a compact device. The fanless yet low-power embedded system can operate under wide temperatures ranging from -10°C to 50°C with 0.7 m/s airflows and endure up to 50G shock and 3Grms vibration. Moreover, it features two independent 4K Ultra HD displays through its DisplayPort++ and HDMI for multi-display applications. The eBOX560-52R-FL is highly suitable for space-constrained applications with strict performance requirements such as industrial equipment computers, in-cabinet equipment integration, collaborative robots, and more.

Specifications

CPU
  • Intel® Core™ i5-8365UE, 1.6 GHz
  • Intel® Celeron® 4305UE, 2.0 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen2
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I219-LM, Intel® I210-AT)
Display
  • 1 x DisplayPort++
  • 1 x HDMI
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA HDD drive bay (max. up 9.5 mm height)
Expansion
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • 1 x ATX power switch
  • 1 x AT/ATX quick switch
  • 1 x Screw type VDC power input connector
  • 2 x Antenna opening
Power
  • 12 VDC
Watchdog Timer
  • 65535 levels, 1 to 65536 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F) with 0.7 m/s air flow (with W.T. SSD/DRAM)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Shock
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Dimensions
(W x D x H)
  • 141.6 x 106 x 55 mm (5.57" x 4.17" x 2.17")
Weight (net/gross)
  • 0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
Certifications
  • CE, FCC Class A, UKCA
EOS Support
  • Win 10 IoT, Linux
Software Support
  • AXView
Mounting
  • Wall mount kit
  • VESA mount kit
  • DIN-rail kit

Ordering Information

  • eBOX560-52R-FL-DC-8365UE (P/N-E36K560156)
    Fanless embedded system with Intel® Core™ i5-8365UE, HDMI/DisplayPort++, 2 GbE LAN, 2 COM, 4 USB and 12 VDC
  • eBOX560-52R-FL-DC-4305UE (P/N-E36K560157)
    Fanless embedded system with Intel® Celeron® 4305UE, HDMI/DisplayPort++, 2 GbE LAN, 2 COM, 4 USB and 12 VDC
  • DDDR4 SO-DIMM
    8G to 32GB
  • 2.5" SATA HDD
    64GB or above
  • 2.5" SATA SSD
    100GB or above
  • 8816K560BA0E
    DIN-Rail kit
  • 8816K560AA0E
    VESA mount kit
  • 8816K560IA0E
    Wall mount kit
  • 50966124050E
    12V/60W power adapter
  • Power cord
  • M.2 Wi-Fi module

Download

Drivers

Date Description Version Download File
2022/04/22 2_Graphics A1.1
2022/04/22 1_Chipset A1.1
2022/04/22 3_Rapid Storage Technology A1.1
2022/04/22 4_Management Engine Firmware A1.1
2022/04/22 5_Intel Network Connection A1.1
2022/04/22 6_SerialPatch_v3.0.6.7MS A1.1

Software

Manual

Date Description Version Download File
2023/08/28 User Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/03/30 UKCA Declaration of Conformity
2022/03/30 FCC Verification
2022/03/30 CE LVD Verification
2022/03/30 CE-Conformity DeclarationA1
2022/03/30 CE EMC Verification

You Might Also Like

Picture of eBOX100-51R-FL

eBOX100-51R-FL

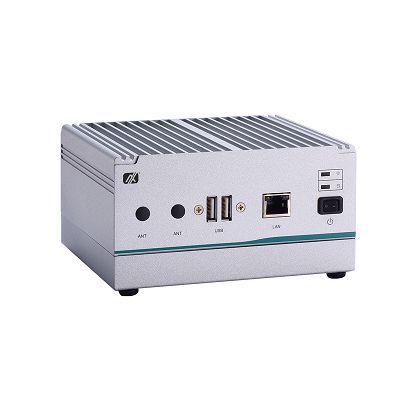

Picture of eBOX565-52R-FL
