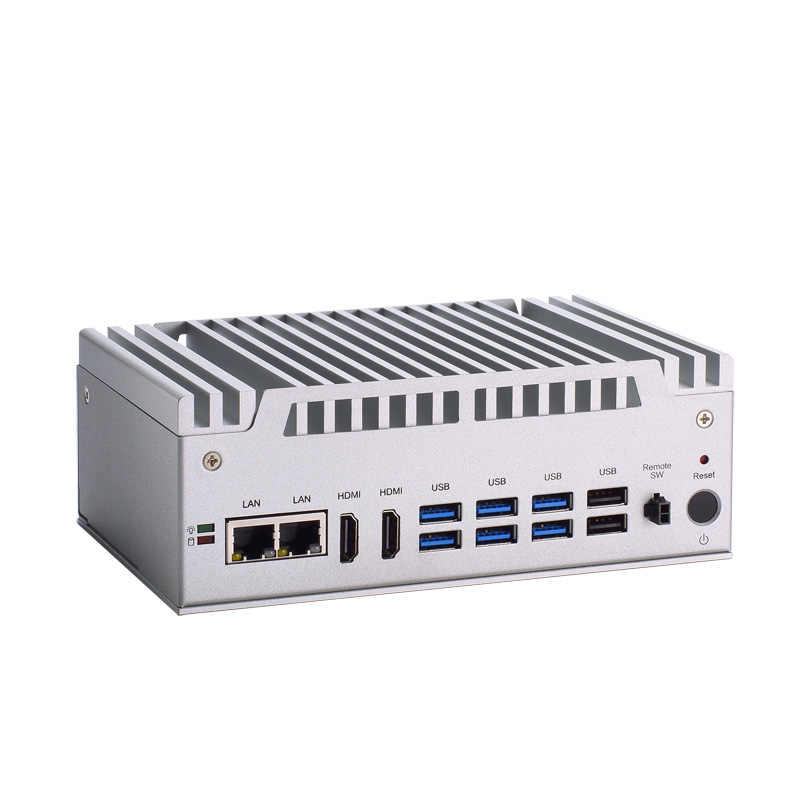

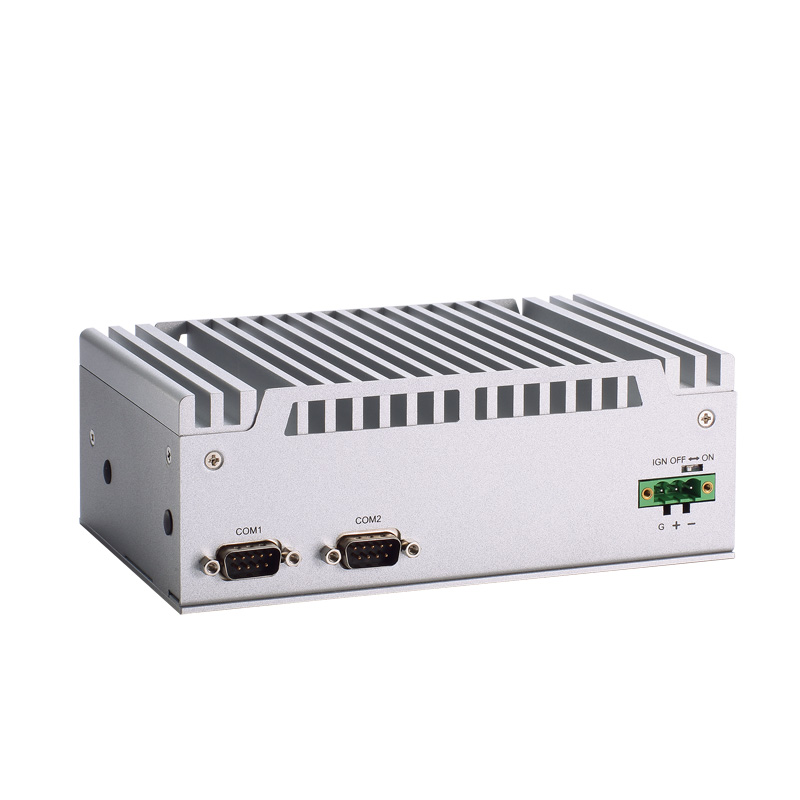

eBOX570

Status : Available

Fanless Embedded System with 13th Gen Intel® Core™ i7/i5/Celeron® Processor, 2 HDMI, 1 DisplayPort++, 2 LANs, 8 USB, 2 COM, and 12 VDC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX570
eBOX570
PoE

PoE

UL508

UL508

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 13th gen Intel® Core™ processor (Raptor Lake P)
  • Fanless design with operating temperature from -20°C to 60°C
  • 1 DDR4 SO-DIMM for up to 32GB of memory
  • Supports the USB power on/off control function

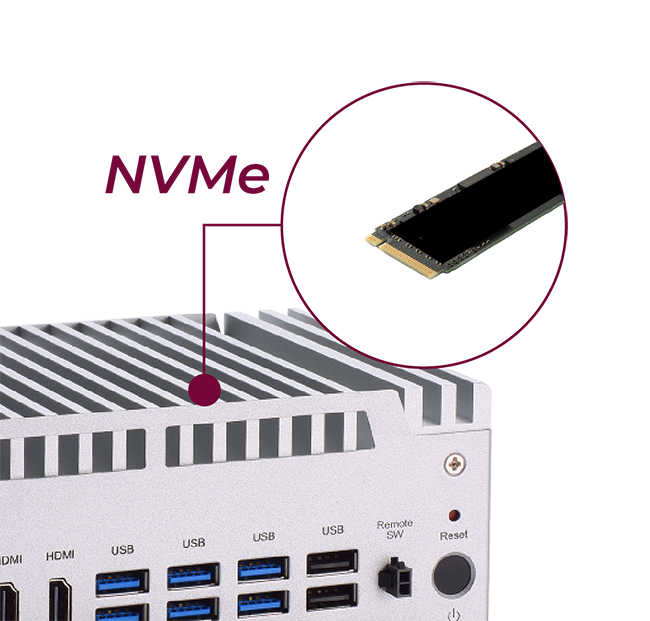

  • Supports high-speed NVMe storage (M.2 Key M 2280)
  • Supports Intel® vPro and TPM 2.0

Specifications

CPU
  • Intel® Core™ i7-1365UE, Core™ i5-1335UE or Celeron® U300E (TDP up to 15W)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM

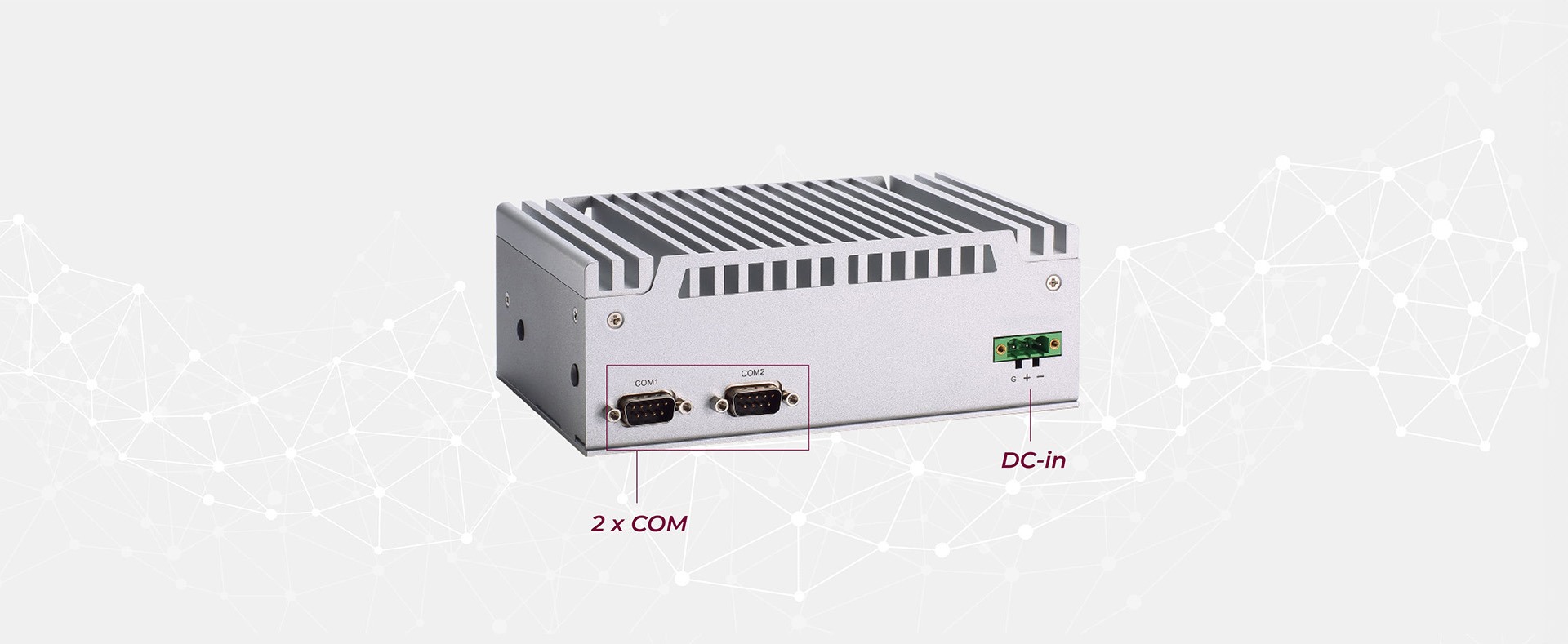

  • 2 x RS-232/422/485

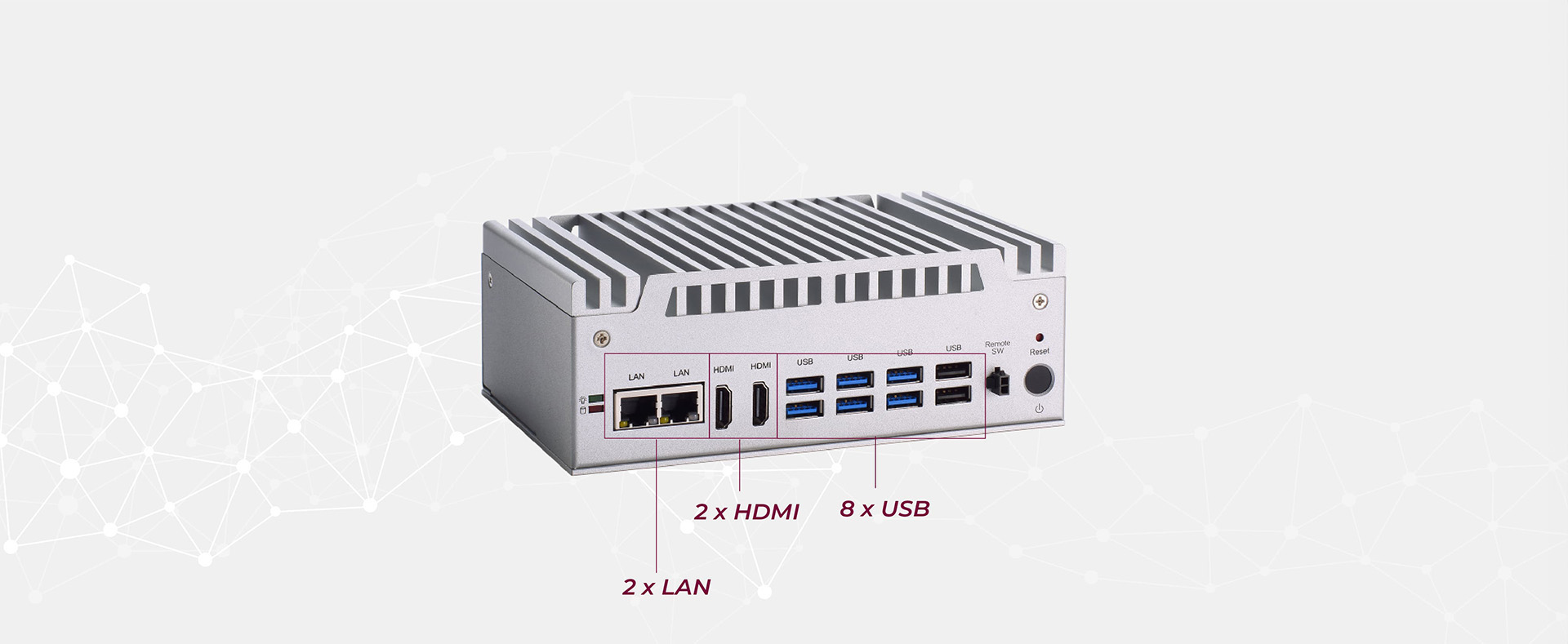

USB
  • 4 x USB 3.2 Gen2x1 (10G) type A
  • 2 x USB 3.2 Gen1x1 (5G) type A
  • 2 x USB 2.0
Ethernet/PoE
  • 1 x 10/100/1000 Mbps (Intel® I210-IT)
  • 1 x 10/100/1000 Mbps (Intel® I219-LM, supporting Intel® AMT)
Display
  • 2 x Lockable HDMI 1.4b @30Hz with 4096 x 2160 resolution
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 socket (for NVMe storage with PCIe x4 Gen3 or SATA signal, selectable through the BIOS)
Expansion
  • 1 x Full-size PCI Express Mini Card with SIM slot
  • 1 x M.2 Key E 2230 slot (for Wi-Fi)
Others
  • 1 x Power button
  • 1 x Reset switch connector
  • 1 x Remote switch
  • 2 x Antenna Opening
  • TPM 2.0
Power
  • 12 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F) (with W.T. DRAM & SSD, CPU TDP 15W)
Relative Humidity
  • 10% to 95%, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions
(W x D x H)
  • 120 x 178 x 65 mm (4.72" x 7.01" x 2.56")
Weight (net/gross)
  • 2 kg/2.5 kg
Certifications
  • CE (EN 61000-6-4/EN 61000-6-2), FCC Class A, UKCA
EOS Support
  • Win 11 IoT, Linux
Software Support
  • N/A
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit

Ordering Information

  • eBOX570-13P-i7 (P/N-E36K570100)
    Fanless embedded system with Intel® Core™ i7-1365UE, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
  • eBOX570-13P-i5 (P/N-E36K570101)
    Fanless embedded system with Intel® Core™ i5-1335UE, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
  • eBOX570-13P-Cel (P/N-E36K570102)
    Fanless embedded system with Intel® Celeron® U300E, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
  • M.2 NVMe
  • DDR4 SO-DIMM
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit
