eBOX630A

Status : Available

Fanless Embedded System with 11th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, 2 HDMI, 1 DisplayPort++, 3 LANs, 6 USB, 4 COM, and 9 to 48 VDC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX630A
eBOX630A
eBOX630A
eBOX630A
PoE

PoE

UL508

UL508

e13 & ISO7637

e13 & ISO7637

AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 11th gen Intel® Core™ i7/i5/i3 or Celeron® Quad-core ULT processor (Tiger Lake UP3)
  • Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
  • Supports three 2.5 GbE, 6 USB, and 4 COM
  • Wide operating temperatures: -40°C to +60°C
  • Wide range DC power input: 9 to 48 VDC
  • Supports triple displays with 2 HDMI and 1 DisplayPort++
  • Intel® Iris® Xe integrated graphics (i7 & i5 SKUs)
  • Trusted Platform Module (TPM) 2.0 onboard

Specifications

CPU
  • Intel® Core™ i7-1185G7E/i5-1145G7E/i3-1115G4E or Celeron® 6305E (TDP up to 15W)
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 2 x RS-232
USB
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1
Ethernet/PoE
  • 3 x 2.5GbE (2 x Intel® I226-IT, 1 x Intel® I226-LM)
  • PoE by option
Display
  • 2 x HDMI 1.4b
  • 1 x DisplayPort++ 1.2a
Digital I/O
  • 1 x 8-CH TTL DIO (DB9 female connector, 4 in/4 out)
Audio
  • N/A
Storage
  • 2 x 2.5" swappable SSD/HDD drive bay (up to 9.5 mm height with RAID 0,1 supported)
  • 1 x NVMe M.2 Key M 2280 (for NVMe storage, PCIex4 signal only)
Expansion
  • 1 x Full-size PCI Express Mini Card (USB + PCIe signal)
  • 1 x M.2 Key E 2230 (for Wi-Fi)
  • 1 x Front-access SIM slot
Others
  • TPM 2.0
  • 1 x ATX power switch
  • 1 x Remote power switch
  • 1 x Reset switch
  • 1 x AT/ATX quick switch
  • 4 x Antenna opening
Power
  • 9 to 48 VDC
  • Phoenix-type VDC power input connector
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • Ethernet version :
  • -40°C to +60°C (-40°F to +140°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W)
  • PoE version (optional) :
  • -40°C to +50°C (-40°F to +122°F) with 0.7 m/s air flow (CPU TDP 15W) (with W.T. DRAM & SSD)
Relative Humidity
  • 10% - 95%, non-condensing
Shock
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Dimensions
(W x D x H)
  • 250 x 170 x 60 mm (9.84” x 6.69” x 2.36”)
Weight (net/gross)
  • 2.4 kg (5.29 lb)/3.2 kg (7.0 lb)
Certifications
  • CE, FCC Class A , UKCA
EOS Support
  • Win 10 IoT
Software Support
  • N/A
Mounting
  • Wall mount kit
  • DIN-rail kit

Ordering Information

  • eBOX630A-11U-i7 (P/N-E360630A00)
    Fanless embedded system with Intel® Core™ i7-1185G7E, 2 HDMI, 1 DisplayPort, three 2.5GbE LAN, 6 USB, 4 COM, and 9 to 48 VDC
  • eBOX630A-11U-i5 (P/N-E360630A01)
    Fanless embedded system with Intel® Core™ i5-1145G7E, 2 HDMI, 1 DisplayPort, three 2.5GbE LAN, 6 USB, 4 COM, and 9 to 48 VDC
  • eBOX630A-11U-i3 (P/N-E360630A02)
    Fanless embedded system with Intel® Core™ i3-1115G4E, 2 HDMI, 1 DisplayPort, three 2.5GbE LAN, 6 USB, 4 COM, and 9 to 48 VDC
  • eBOX630A-11U-Cel (P/N-E360630A03)
    Fanless embedded system with Intel® Celeron® 6305E, 2 HDMI, 1 DisplayPort, three 2.5GbE LAN, 6 USB, 4 COM, and 9 to 48 VDC
  • 2.5" SATA HDD
    256GB or above
  • 2.5" SATA SSD
    100GB or above
  • DDR4 SO-DIMM
    8GB to 32GB
  • 881606302A0E
    Wall mount kit
  • 886K630A0A0E
    DIN-rail kit
  • 509000001500
    24V 120W power adapter
  • Power cord
  • Wi-Fi/LTE module

Download

Drivers

Date Description Version Download File
2024/01/22 Intel RST Driver VA1.1
2024/01/22 Intel ME Driver VA1.1
2024/01/22 LAN Driver VA1.1
2024/01/22 Graphic Driver VA1.1
2024/01/22 Audio Driver VA1.1
2024/01/22 Chipset Driver VA1.1

Software

Manual

Date Description Version Download File
2024/01/22 User Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/08/23 FCC Verification
2023/08/23 UKCA Declaration of Conformity
2023/08/23 CE-Conformity Declaration
2023/08/23 CE EMC Verification

You Might Also Like

Picture of eBOX630-528-FL

eBOX630-528-FL

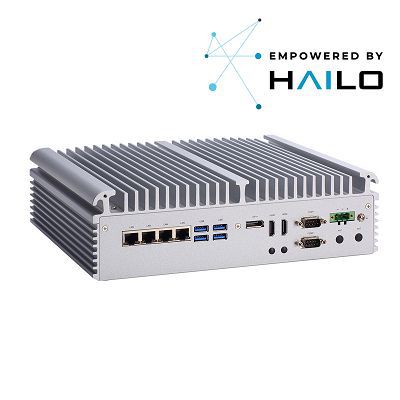

Picture of eBOX671A
