eBOX671A

Status : Available

Fanless Embedded System with LGA1200 Socket 11th/10th Gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® W480E, 2 HDMI, DisplayPort, 6 USB, 4 LAN, and 9 to 48 VDC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

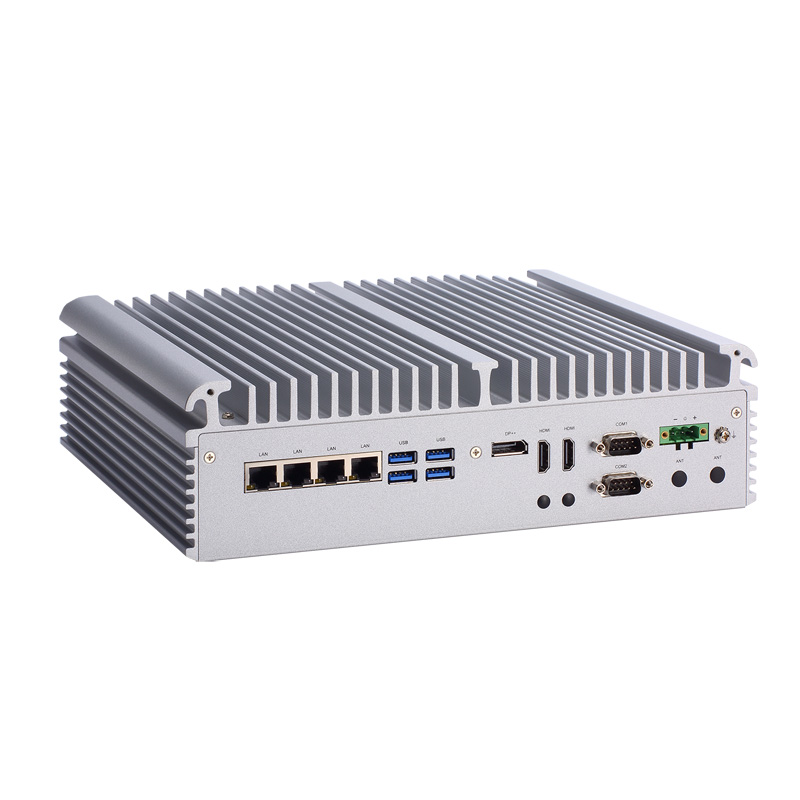

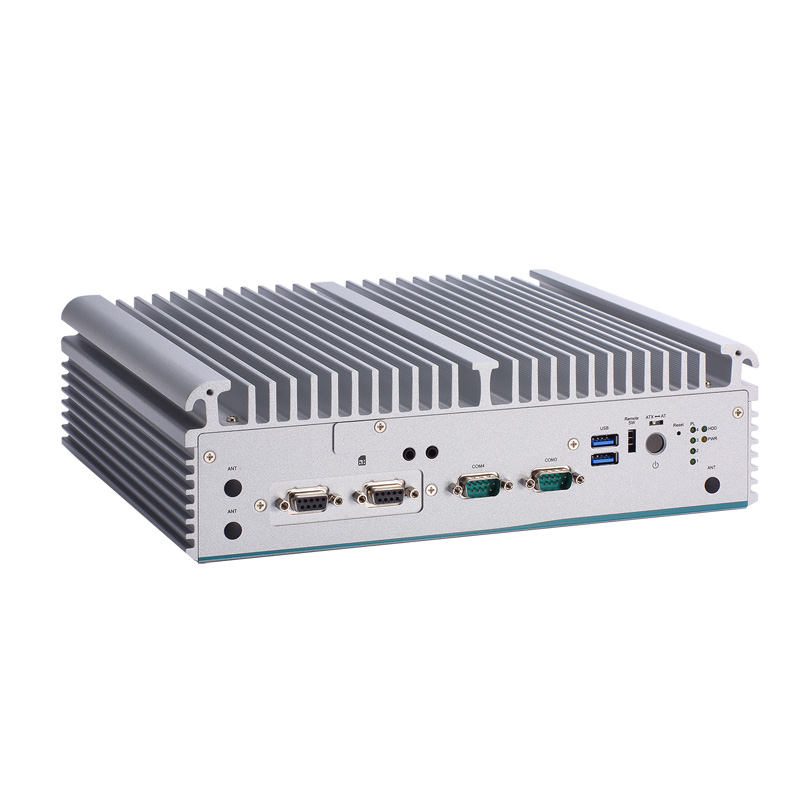

eBOX671A
eBOX671A
UL508

UL508

e13 & ISO7637

e13 & ISO7637

AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1200 11th/10th gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® with Intel® W480E chipset (Comet Lake-S)
  • 4 GbE LAN with optional PoE supported
  • Dual 2.5" SATA HDD drive bays with RAID 0 & 1
  • 2 HDMI and 1 DisplayPort for triple-view
  • -40°C to +70°C wide range operation temperature
  • Wide range power input from 9 to 48 VDC
  • Flexible I/O window supported via mPCIe modules

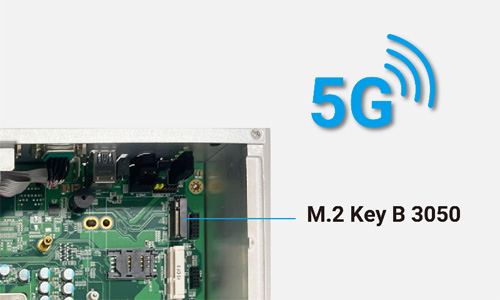

5G-IoT Business Potential
The outstanding embedded system has one M.2 Key B 3050 slot for 5G module.
eBOX671A 5G
eBOX671A

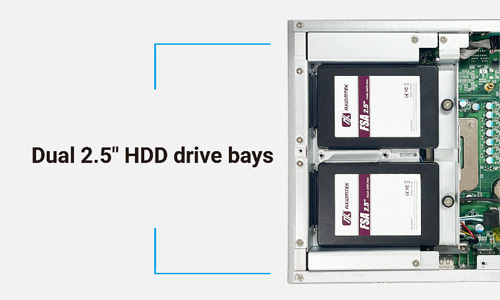

Additional Storage
Two 2.5” SATA HDD drive bays with Intel® RAID 0 & 1 are for extensive storage needs. It also comes with two mSATA supported.
Propelling A Smarter Path to Industry 4.0
The eBOX671A is powered by the high-performance Intel® Xeon®, 11th/10th generation Intel® Core™ i9/i7/i5/i3 or Celeron® processor with the Intel® W480E chipset. With its IP40-rated heavy-duty aluminum extrusion and steel case, the durable eBOX671A can run in harsh environments with a wide operating temperature range of -40°C to +70°C and vibration endurance for up to 3G. The 9 to 48 VDC power input allows it can be used for factory automation. Leveraging up to 10 computing cores to enhance AI inference capabilities, the eBOX617A presents high performance for a wide range of applications in the AIoT fields such as edge computing, machine vision, deep learning, and robotic control.
eBOX671A

eBOX671A
Optimized Performance
The new fanless embedded system is powered by the high-performance Intel® Xeon®, 10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor with the Intel® W480E chipset.
AI Vision at the Edge
Four GbE LAN ports with optional PoE are supported to allow the eBOX671A to connect IP cameras or any PoE-powered device. It also has sufficient USB interfaces which are available for industrial cameras.
Rich I/O Interfaces

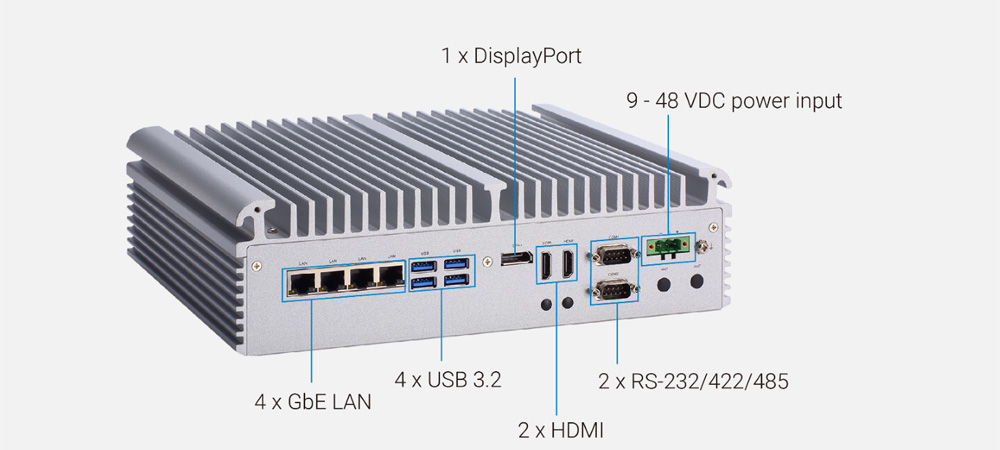

The system has two lockable HDMI 1.4b, one DisplayPort 1.2++, five USB 3.2 Gen2 ports, one USB 3.2 Gen1 port, four GbE PoE/LAN ports, two RS-232/422/485, two RS-323, and two 10GbE LAN (optional).

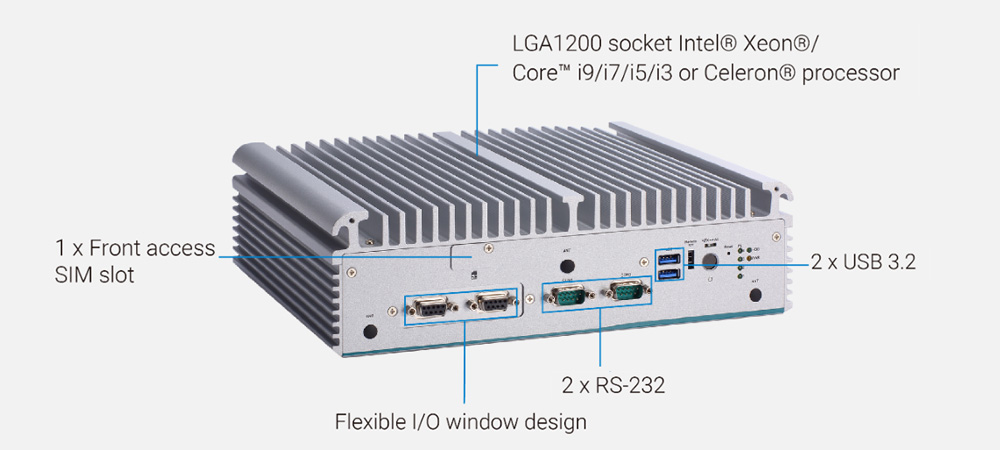

User-friendly Design
On the front, the easy-customized eBOX671A has one easy-to-access SIM slot and one flexible I/O window which support diverse I/O choices thru Axiomtek’s PCI Express Mini modules.

Specifications

CPU
  • LGA1200 socket 11th/10th Gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
Chipset
  • Intel® W480E
System Memory
  • 2 x 260 pin DDR4-2933 ECC/non-ECC SO-DIMM, up to 64GB
  • ECC memory is available with Intel®Xeon® processor
BIOS
  • AMI
COM
  • 2 x RS-232
  • 2 x RS-232/422/485
USB
  • 5 x USB 3.2 Gen2
  • 1 x USB 3.2 Gen1
Ethernet/PoE
  • 4 x GbE LAN (PoE by option) (3 x Intel® I210-IT, 1 x Intel® I219-LM)
Display
  • 2 x HDMI 1.4b (lockable)
  • 1 x DisplayPort 1.2 ++
Digital I/O
  • Optional
Audio
  • Optional
Storage
  • 2 x 2.5” SATA HDD/SSD (up to 15 mm height & RAID 0 & 1)
  • 2 x mSATA (enabled in BIOS setting & RAID 0 &1)
Expansion
  • 2 x Full-size PCI Express Mini Card slot (USB + PCIe + SATA signal)
  • 1 x M.2 Key B 3050 slot (for 5G)
  • 1 x Internal SIM slot for PCIe Mini Card slot
Others
  • TPM 2.0
  • 1 x Flexible I/O window
  • 5 x Antenna opening
  • 1 x Power button
  • 1 x AT/ATX quick switch
  • 1 x Remote switch connector
  • 1 x Reset switch connector
  • 1 x Grounding screw
Power
  • 9 to 48V DC input for standard
  • Optional PoE function only supports 24V DC input
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • Ethernet version
  • -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 35W) (with W.T. DRAM & SSD)
  • -40°C to +60°C (-40°F to +140°F) with 0.7 m/s air flow (CPU TDP 65W) (with W.T. DRAM & SSD)
  • PoE version (optional)
  • -40°C to +60°C (-40°F to +140°F) with 0.7 m/s air flow (CPU TDP 35W) (with W.T. DRAM & SSD)
  • -40°C to +50°C (-40°F to +122°F) with 0.7 m/s air flow (CPU TDP 65W) (with W.T. DRAM & SSD)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
Dimensions
(W x D x H)
  • 280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight (net/gross)
  • 4.9 kg (10.8 lb)/7 kg (15.43 lb)
Certifications
  • CE, FCC Class A, UKCA
EOS Support
  • Win 11/10 IoT, Linux
Software Support
  • N/A
Mounting
  • Wall mount kit
  • DIN-rail kit

Ordering Information

  • eBOX671A-CML-GbE (P/N-E36K671A00)
    Fanless embedded system with LGA1200 socket 11th/10th Gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® processor, Intel® W480E, 2 HDMI, DisplayPort, 6 USB, 4 LAN, and 9 to 48 VDC
  • 2.5" SATA HDD
    80GB or above
  • 2.5" SATA SSD
    100GB or above
  • DDR4 SO-DIMM
    8GB to 32GB
  • mSATA
    64GB or above
  • 8816K6718A0E
    Wall mount kit
  • 886K671A0A0E
    DIN-rail kit
  • Wi-Fi/LTE module
  • 509000001500
    24V 120W power adapter
  • Power cord
  • E392906101
    AX92906 COM Mini PCIe Module
  • E392903102
    AX92903 CANbus PCI Express Mini module
  • E392902103
    AX92902 LAN PCI Express Mini module
  • E392918103
    AX92918 Dual LAN PCI Express Mini module

Download

Drivers

Date Description Version Download File
2023/10/30 Nuvoton Serial Driver_Windows 11 VA1.2
2023/10/30 Intel ME Driver_Windows 11 VA1.2
2023/10/30 Intel RST Driver_Windows 11 VA1.2
2023/10/30 Intel LAN Driver_Windows 11 VA1.2
2023/10/30 Realtek Audio Driver_Windows 11 VA1.2
2023/10/30 Intel Graphics Driver_Windows 11 VA1.2
2023/10/30 Intel Chipset Driver_Windows 11 VA1.2
2023/10/30 Nuvoton Serial Driver_Windows 10 VA1.2
2023/10/30 Intel RST Driver_Windows 10 VA1.2
2023/10/30 Intel ME Driver_Windows 10 VA1.2
2023/10/30 Intel LAN Driver_Windows 10 VA1.2
2023/10/30 Realtek Audio Driver_Windows 10 VA1.2
2023/10/30 Intel Graphics Driver_Windows 10 VA1.2
2023/10/30 Intel Chipset Driver_Windows 10 A1.2

Software

Manual

Date Description Version Download File
2023/10/30 User Manual VA4

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/09/16 FCC Verification
2022/09/16 UKCA Declaration of Conformity
2022/09/16 CE EMC Verification
2022/09/16 CE-Conformity Declaration

You Might Also Like

Picture of eBOX671-521-FL

eBOX671-521-FL

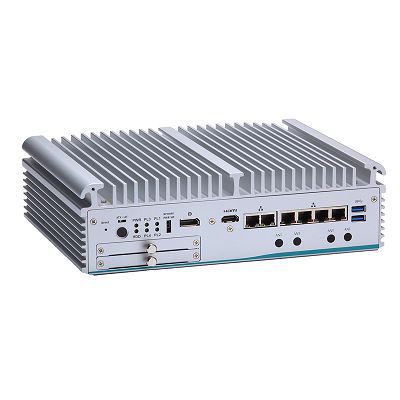

Picture of eBOX710-521-FL
