| CPU |
- LGA1700 socket 13th/12th Gen Intel® Core™ i9/i7/i5/i3 & Celeron® processor (35W/65W)
|
| Chipset |
|
| System Memory |
- 2 x 262-pin DDR5-4800 SO-DIMM, up to 64GB
|
| BIOS |
|
| COM |
- 2 x RS-232/422/485 with autoflow
- 2 x RS-232
|
| USB |
|
| Ethernet/PoE |

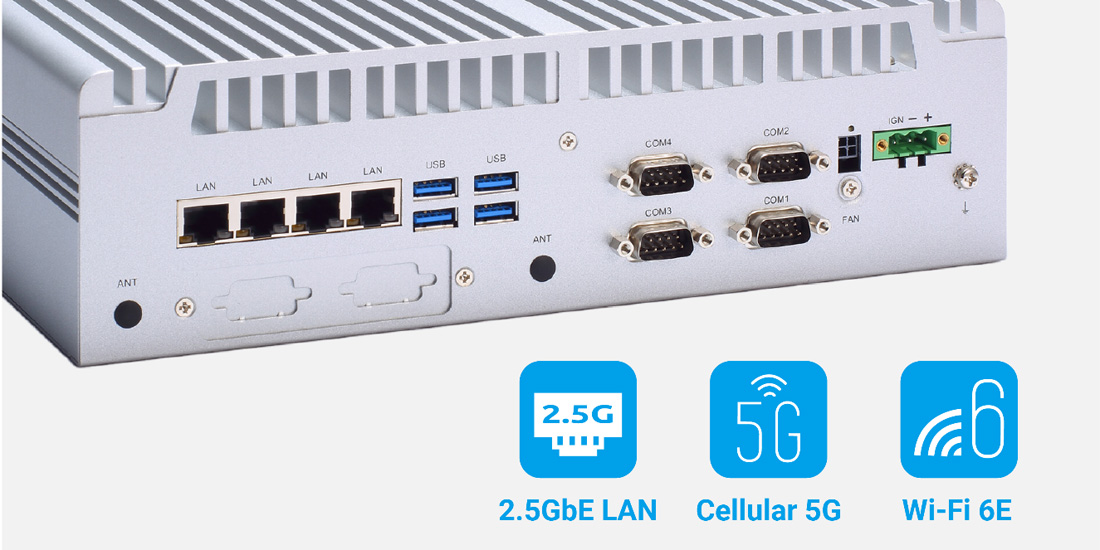

- 3 x 2.5 GbE* LAN (Intel® I226-IT)
- 1 x GbE* LAN (Intel® I219-LM)
- *4 x PoE by option (IEEE802.3at, up to 60W)
|
| Display |

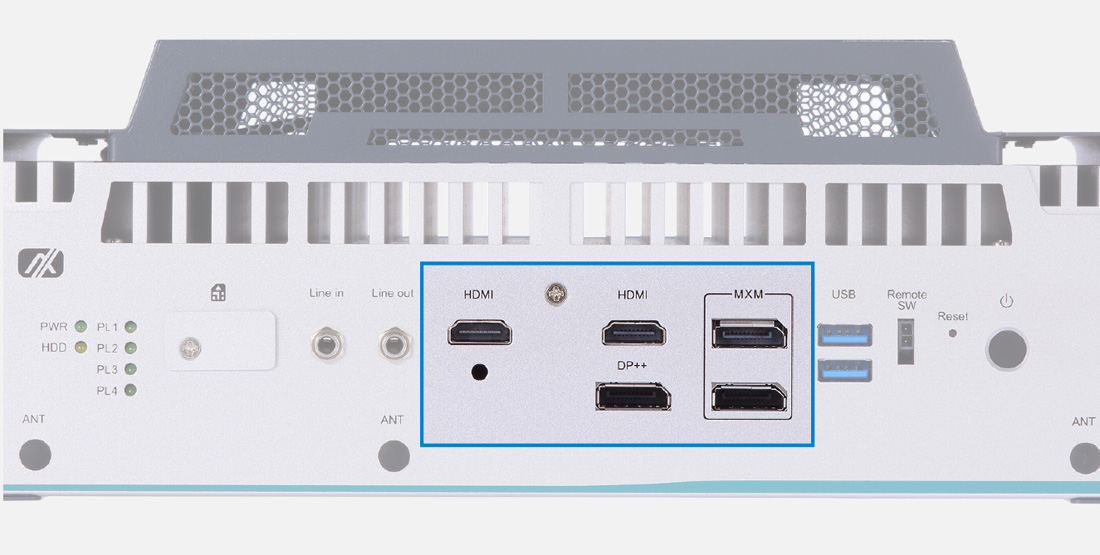

- 2 x HDMI 1.4b (1 x lockable)
- 1 x DisplayPort 1.2a
- 2 x DisplayPort 1.4a via optional MXM kit
|
| Digital I/O |
|
| Audio |
- 1 x Audio (MIC-in/Line-out)
|
| Storage |
- 2 x 2.5" SATA HDD/SSD (up to 15 mm height; RAID 0,1 supported)
- 1 x NVMe by M.2 Key M 2280
- 1 x mSATA (enable in BIOS setting)
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot (USB 2.0 + PCIe + SIM + mSATA signal)
- 1 x M.2 Key M 2280 socket (for storage)
- 1 x M.2 Key E 2230 socket (for Wi-Fi 6E)
- 1 x M.2 Key B 3052 socket (for 5G)
- 1 x Internal SIM slot for PCIe Mini Card slot
- 1 x MXM3.1 type A connector
- 1 x Flexible IO window (Default: 2 x DB9 half-cut bracket)
|
| Others |
- TPM 2.0
- 1 x Power button
- 1 x Remote switch
- 1 x Front access SIM slot with cover (for M.2 Key B)
- 1 x Reset switch connector
- 5 x Antenna opening
- 1 x Grounding screw
|
| Power |
- 9 to 36VDC with ignition for standard
- Optional PoE function only supports 24V DC input
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- Without MXM module (for CPU 35W/65W)
- -40°C to +65°C (-40°F to +140°F) (with W.T. DRAM & SSD)
- With MXM module (only for CPU 35W)(For W.T. MXM T1000 & A500 )
- -40°C to +50°C (-40°F to +122°F) (with W.T. DRAM & SSD)

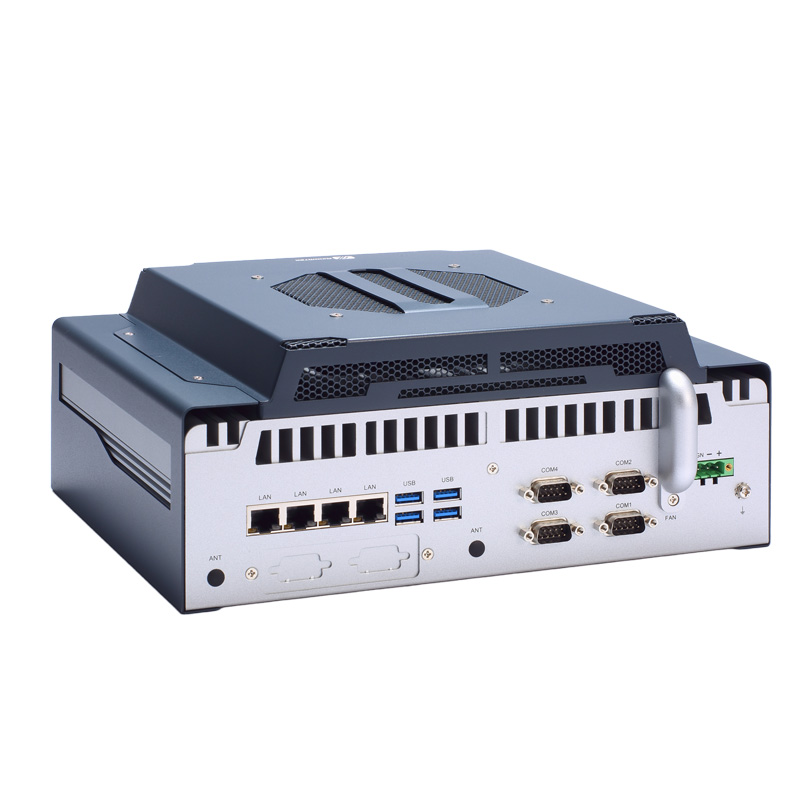

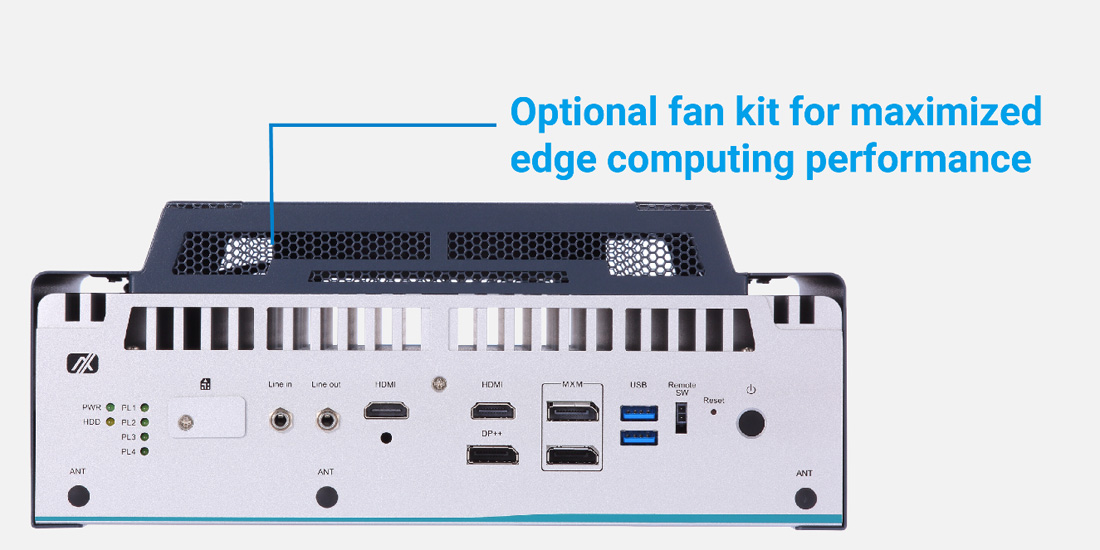

- With MXM module (only for CPU 35W) (For W.T. MXM A2000 and must with optional fan kit)
- -40°C to +50°C (-40°F to +122°F) (with W.T. DRAM & SSD)
|
| Relative Humidity |
- 10% - 90%, non-condensing
|
| Vibration |
- IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
|
| Shock |
- IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
|
Dimensions
(W x D x H) |
- 280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
|
| Weight (net/gross) |
- 4.2 kg (9.25 lb)/5 kg (11.02 lb)
|
| Certifications |
|
| EOS Support |
- Win 10 IoT, Win 11 IoT, Linux
|
| Software Support |
|
| Mounting |
- Wall mount kit
- DIN-rail kit
|
