FAB105

Status : Available

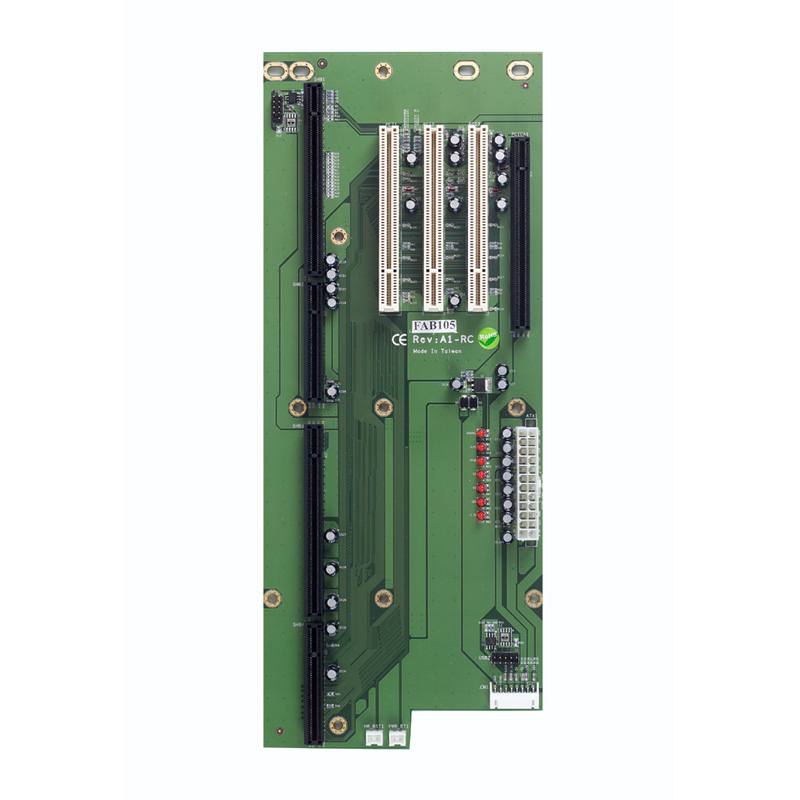

5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
FAB105
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Designed for PICMG 1.3 SBC
  • Compatible with the AX60501 chassis
  • Supports one PICMG 1.3 CPU card slot, one PCIe x16 slot, and three 32bit/33MHz PCI slots
The FAB105 features a PICMG 1.3 CPU card slot, one PCI Express x16 slot, three 32bit/33MHz PCI slots, and built in a 24-pin ATX power connector and 8-pin connector for thermal detected board. The FAB105 is perfect fit for AXIOMTEK's SHB100 and SHB110, which are built around the PICMG 1.3 form factor. The FAB105 is compatible with the AX60501 chassis.

Specifications

The object is temporarily unavailable, please check back later.

Ordering Information

  • FAB105
    5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Download

Drivers

Software

Manual

Date Description Version Download File
2023/05/25 Quick manual A1

Design Guide

Technical Announcement

Certificates
