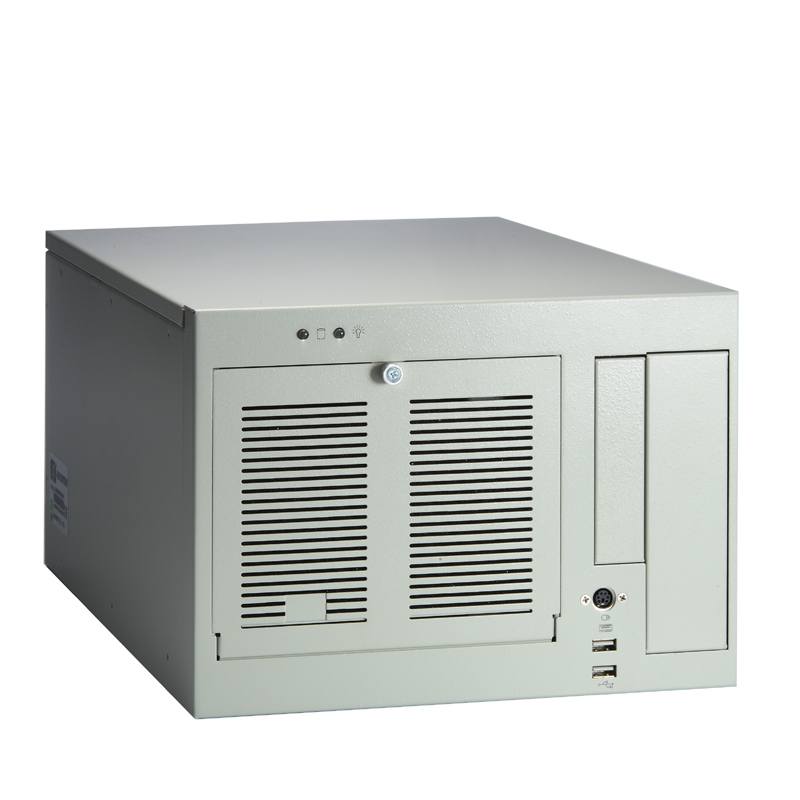

AX60501

Status : Available

6-slot ShoeBox Chassis

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

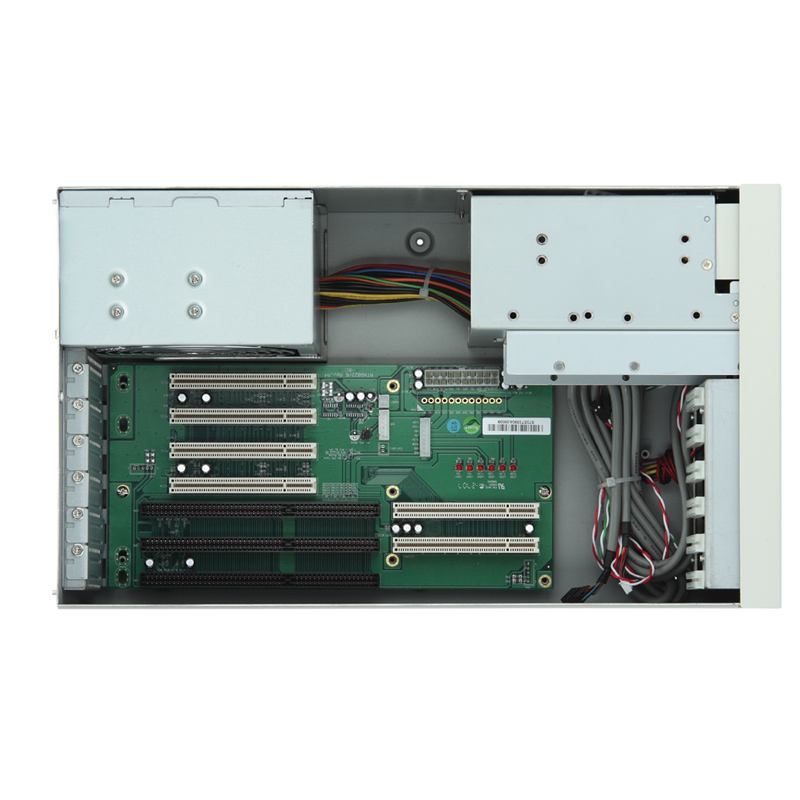

AX60501
AX60501
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Desktop or wallmount industrial computer chassis
  • One 5.25" and two 3.5" HDD drive bays
  • Equipped with a PS/2 type power supply

Specifications


Height
  • N/A
Expansion
  • 6-slot backplane
Drive Bay
  • 1 x 5.25" HDD drive bay
  • 2 x 3.5" HDD drive bay
Cooling System
  • 1 x 9 cm ball-bearing fan (51 CFM/each) with a removable filter
System Board
  • SBCs
Backplane Options
  • FAB109, FAB110, FAB105, HAB206, ATX6022/6
I/O Interface
  • 1 x PS/2 6-pin keyboard & mouse
  • 2 x USB
Front Panel Indicators
  • 1 x Power on/off
Front Panel Controls
  • 1 x Power on/off
  • 1 x System reset
Power
  • PS/2 type
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(W x D x H)
  • 235 ± 1.0 x 400.5 ± 1.0 x 154.7 ±1.0 mm (9.25" x 15.77" x 6.09")
Weight (net/gross)
  • 9 kg (19.84 lb)/10.3 kg (22.7 lb)
Certifications
  • CE

Ordering Information

  • AX60501 (P/N-E260501109)
    6-slot black shoesbox chassis for full-size SBC W/O PSU
  • AX60501 (P/N-E260501116)
    6-slot beige shoesbox chassis for full-size SBC W/O PSU
  • 50904B24010E
    ATX 400W FSP-400-70PFL (SK)
  • 50916A06000E
    ATX 600W SS-600ES2
  • 50787861200E
    LGA1151/1155/1156 CPU cooler
  • 72061560000E
    3.5" to 5.25" HDD bracket (Need to buy a pair)
  • Backplane Options
    ATX6022/6, FAB109, FAB110, FAB105, HAB206

Download

This object is currently under update, please visit later.

You Might Also Like

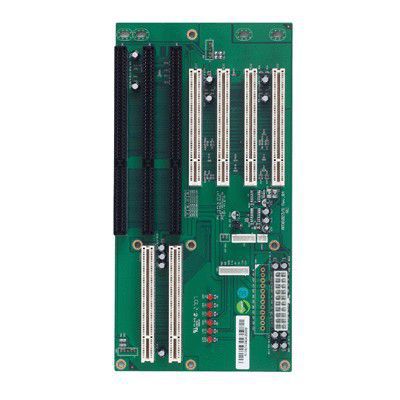

Picture of ATX6022/6
