Features
- Designed for PICMG 1.3 half-size SBC
- Compatible with the AX60501/AX60530 chassis
- Supports one PICMG 1.3 CPU card slot, one PCIe x16 slot and three 32bit/33MHz PCI slots

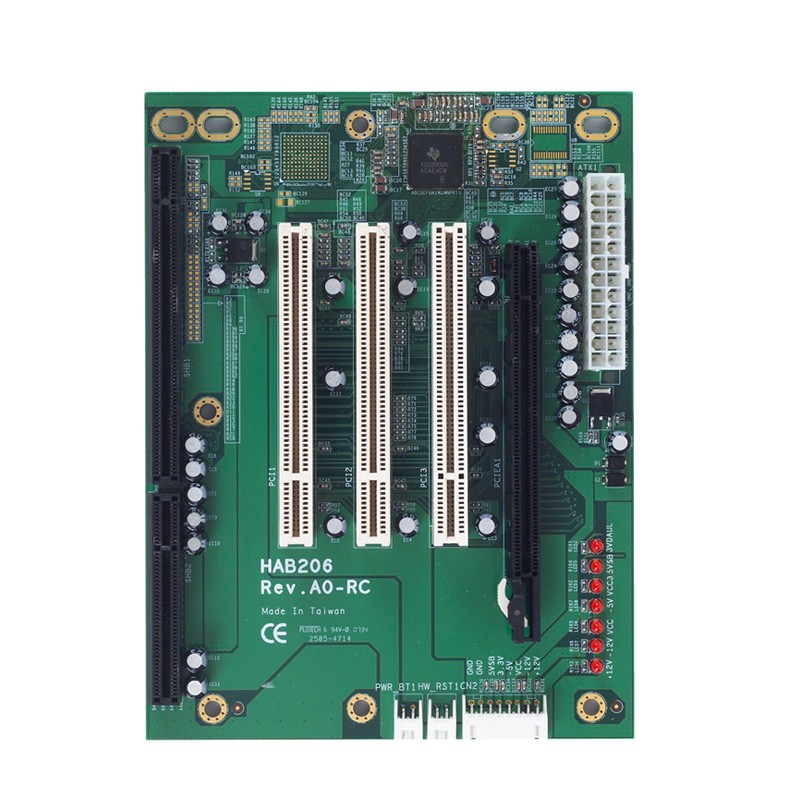

The HAB206 has a PICMG 1.3 CPU card slot, a PCIe x 16 slot and a total of three 32bit/33MHz PCI slots. The onboard 24-pin ATX power connector and 8-pin connector for thermal detected board are featured. Furthermore, the backplane supports two onboard SATA ports (optional function). The HAB206 is perfect fit for AXIOMTEK's half-size CPU cards, the SHB210 and SHB211, which are built around the PICMG 1.3 form factor. We have an enclosure, the AX60501 and AX60530, to house the backplane.
