FAB109

Status : Available

5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
FAB109
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Designed for PICMG 1.3 SBC
  • Compatible with the AX60501 chassis
  • Supports one PICMG 1.3 CPU card slot, three PCIe x1 slot, and one PCIe x16 slot

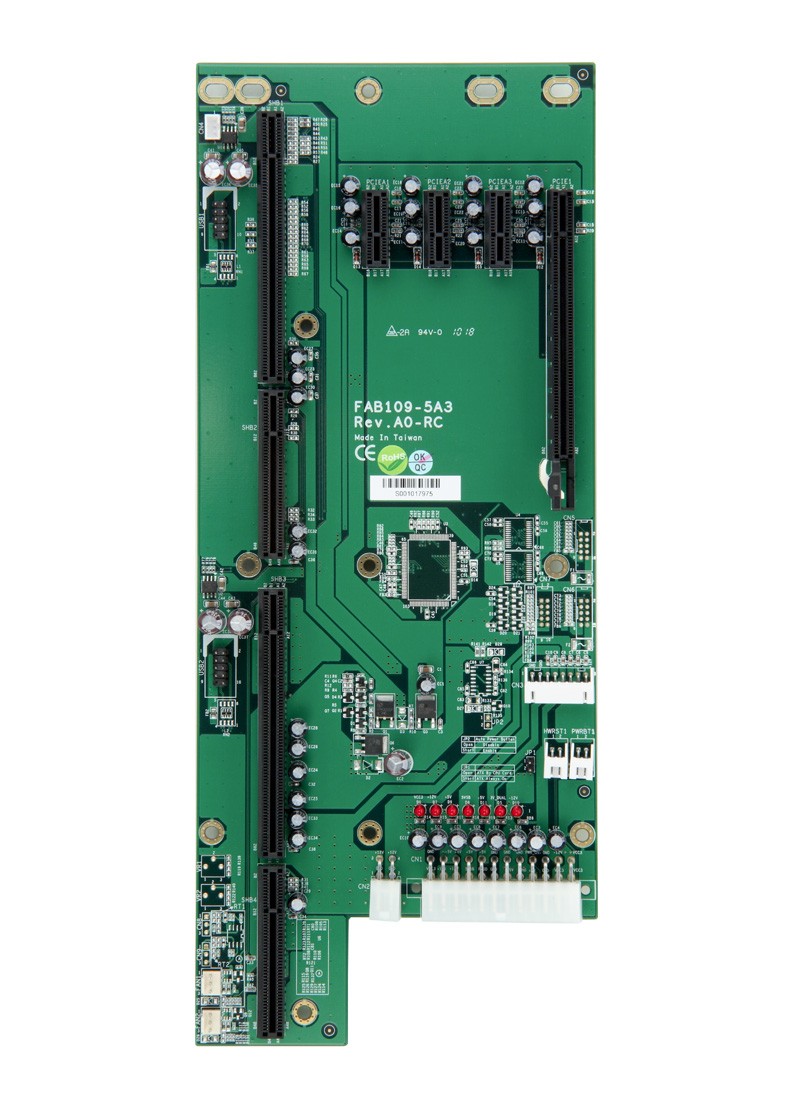

The FAB109 features a PICMG 1.3 CPU card slot, one PCIe x16 slot and three PCIe x1 slots, and built in a 24-pin ATX power connector and 8-pin connector for thermal detected board. Two high speed USB 2.0 ports are featured. The FAB109 is compatible with Axiomtek's AX60501 and AX6052 chassis.

Specifications

The object is temporarily unavailable, please check back later.

Ordering Information

  • FAB109
    5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Download

Drivers

Software

Manual

Date Description Version Download File
2022/04/12 Quick Manual V1.0

Design Guide

Technical Announcement
