FAB110

Status : Available

5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
FAB110
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Designed for PICMG 1.3 SBC
  • Compatible with the AX60501 chassis
  • Supports one PICMG 1.3 CPU card slot, one PCIe x4 slot, one PCIe x16 slot, and two 32bit/33MHz PCI slots

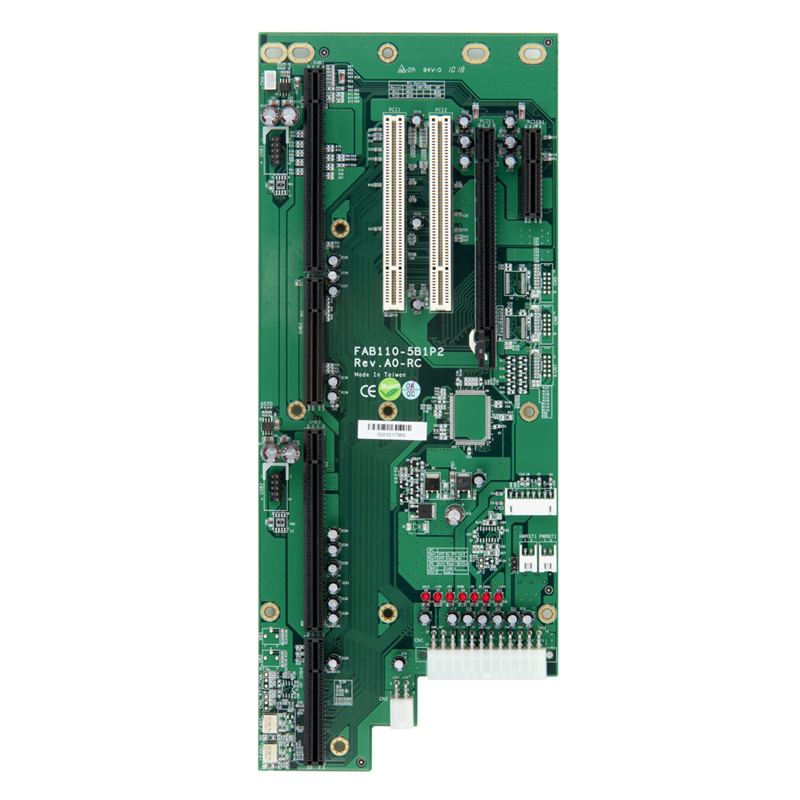

The FAB110 offers one PCIe x16 slot, one PCIe x4 slots and two 32bit/33MHz PCI slots as well as the PICMG 1.3 slot for the SHB (system host board). The onboard 24-pi ATX power connector and 8-pin connector for thermal detected board are featured. Furthermore, the backplane supports two high speed USB 2.0 ports. The FAB110 is designed for the 6-slot industrial chassis, such as Axiomtek's AX60501 and AX6052.

Specifications

The object is temporarily unavailable, please check back later.

Ordering Information

  • FAB110
    5-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Download

Drivers

Software

Manual

Date Description Version Download File
2022/04/12 Quick Manual V1.0
