Features
- Designed for PICMG 1.3 SBC
- Compatible with AX6145, AX61400, and AX6156LE chassis
- Supports one PICMG 1.3 CPU card slot, five PCIe x4 slots, one PCIe x16 slot, and seven 32bit/33MHz PCI slots

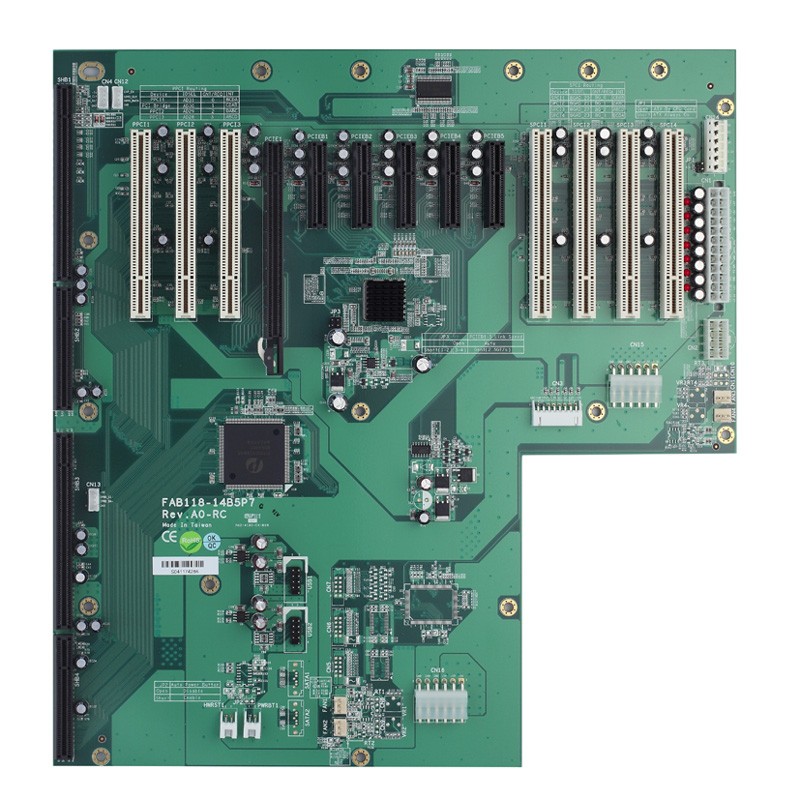

The FAB118 offers one PCIe x16 slot, five PCIe x4 slots and six 32bit/33MHz PCI slots as well as the PICMG 1.3 slot for the SHB (system host board). The onboard 24-pin ATX power connector and 8-pin connector for thermal detected board are featured. Furthermore, the backplane supports two high speed USB 2.0 ports. The FAB118 is designed for the 14-slot industrial chassis, such as Axiomtek's AX61460, AX6145, AX61400, AX6156E/LE/LLE, and AX61491.
Specifications
| The object is temporarily unavailable, please check back later. |
Ordering Information
-
FAB118
14-slot ATX-supported PICMG 1.3 Bus Passive Backplane
