AX6156LE

Status : Available

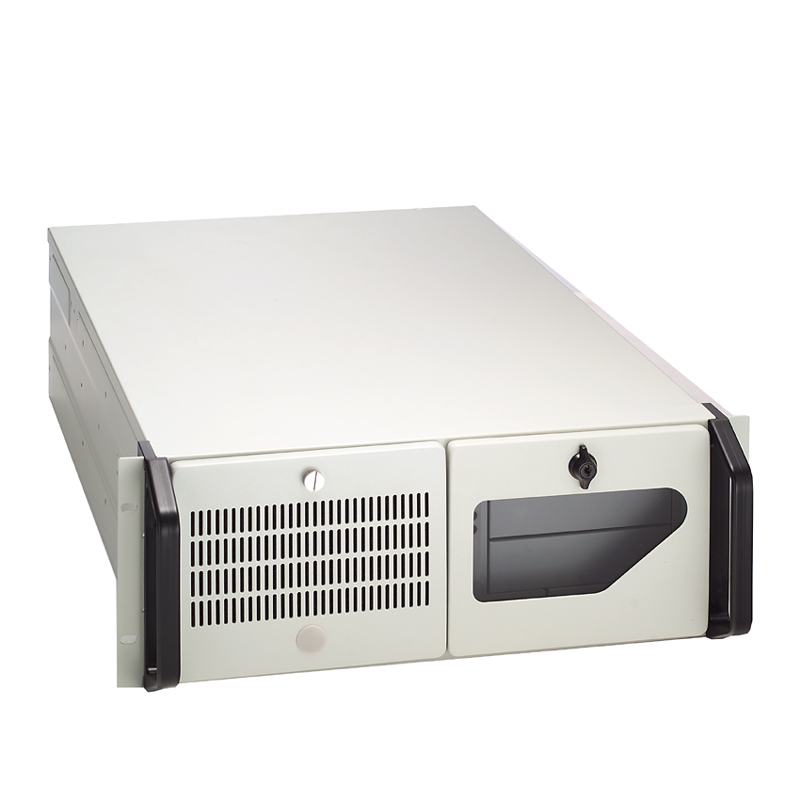

4U 14-slot Rackmount Chassis

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AX6156LE
AX6156LE
AX6156LE
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Three 5.25" and one 3.5" HDD drive bays
  • One 12 cm ball-bearing fan (two 12 cm fans for optional)
  • Supports maximum 14 slot backplane via PICMG SBCs or ATX motherboards
  • Hot-swap redundant power supply supported

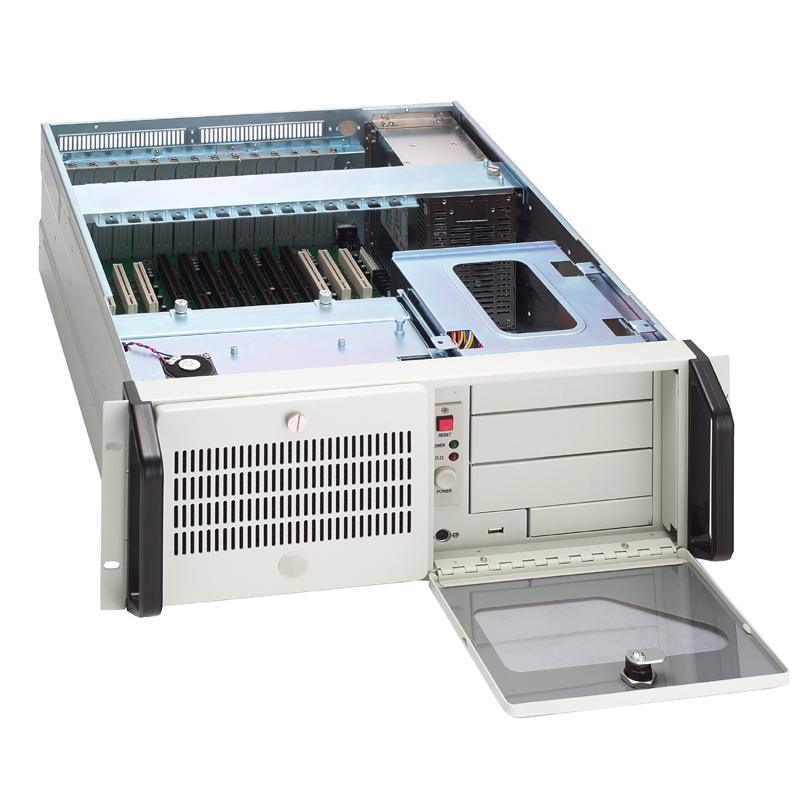

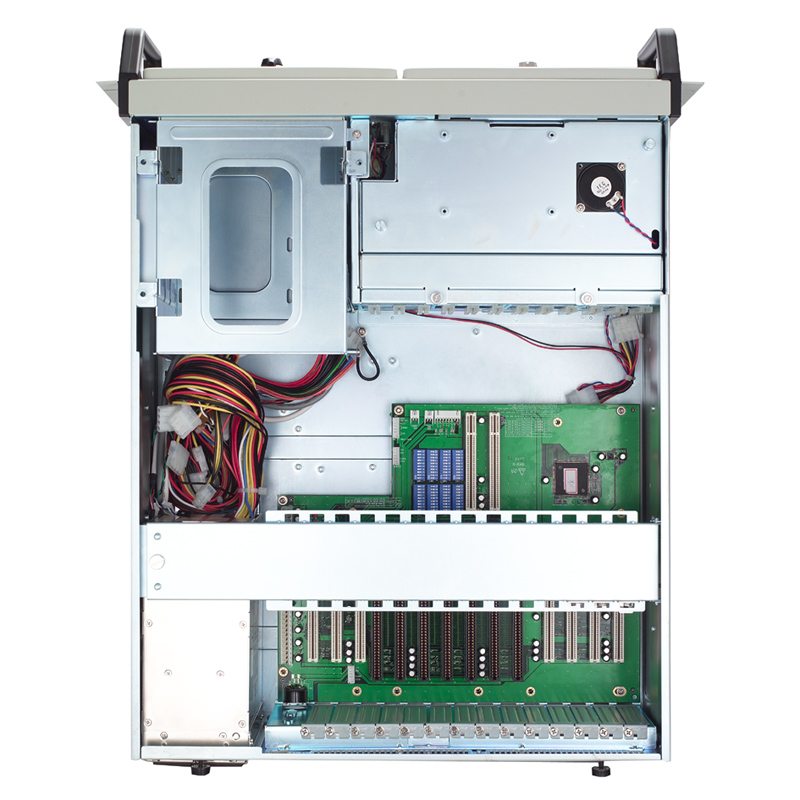

The AX6156LE is a 4U-high rackmount industrial computer chassis which can hold a 14-slot PCI/ISA backplane and supports ATX Motherboard form factor. One 12cm ball-bearing cooling fan maintains positive air circulation through the whole chassis. The front access I/O ports are designed for ease access and maintenance. Furthermore, this industrial chassis features three 5.25" and one 3.5" disk drive bays. A wide range of standard computing peripherals can be integrated with the chassis to meet different application requirements.

Specifications


Height
  • 4U
Expansion
  • 14-slot backplane
Drive Bay
  • 3 x 5.25" HDD drive bay
  • 1 x 3.5" HDD drive bay
Cooling System
  • 1 x 12 cm ball-bearing fan (88 CFM/each) with a removable filter (optional two fans)
  • Front Panel Indicators 1 x power on/off; 1 x HDD
System Board
  • PICMG SBCs
  • ATX motherboards
Backplane Options
  • FAB100, FAB101, FAB112, FAB113, FAB114, FAB119
I/O Interface
  • 1 x USB
  • 1 x PS/2 5-pin keyboard
  • 1 x 0.3W speaker
Front Panel Indicators
  • 1 x Power on/off
  • 1 x HDD
Front Panel Controls
  • 1 x Power on/off
  • 1 x System reset
Power
  • PS/2 type (optional HRP)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(W x D x H)
  • 484.7 x 537.6 x 176.7 mm (19.08" x 21.16" x 6.96")
Weight (net/gross)
  • 18 kg (39.68 lb)/19.5 kg (43 lb)
Certifications
  • CE

Ordering Information

  • AX6156LEWB (P/N-E206156500)
    4U 14-slot beige rackmount chassis for full-size SBC w/o PSU
  • AX6156LETB (P/N-E206156501)
    4U 14-slot black rackmount chassis for full-size SBC w/o PSU
  • AX6156LETM (P/N-E206156502)
    4U 7-slot black rackmount chassis for ATX w/o PSU
  • AX6156LEWM (P/N-E206156525)
    4U 7-slot beige rackmount chassis for ATX SBC w/o PSU
  • Backplane Options
    FAB100, FAB101, FAB112, FAB113, FAB114, FAB119
  • 50904B24010E
    ATX 400W FSP-400-70PFL (SK)
  • 50916A06000E
    ATX 600W SS-600ES2
  • 50914B09620E
    ATX AC_AUTO 400W-HRP MRW-6400P (RC)

Download

This object is currently under update, please visit later.
