FAB205

Status : Available

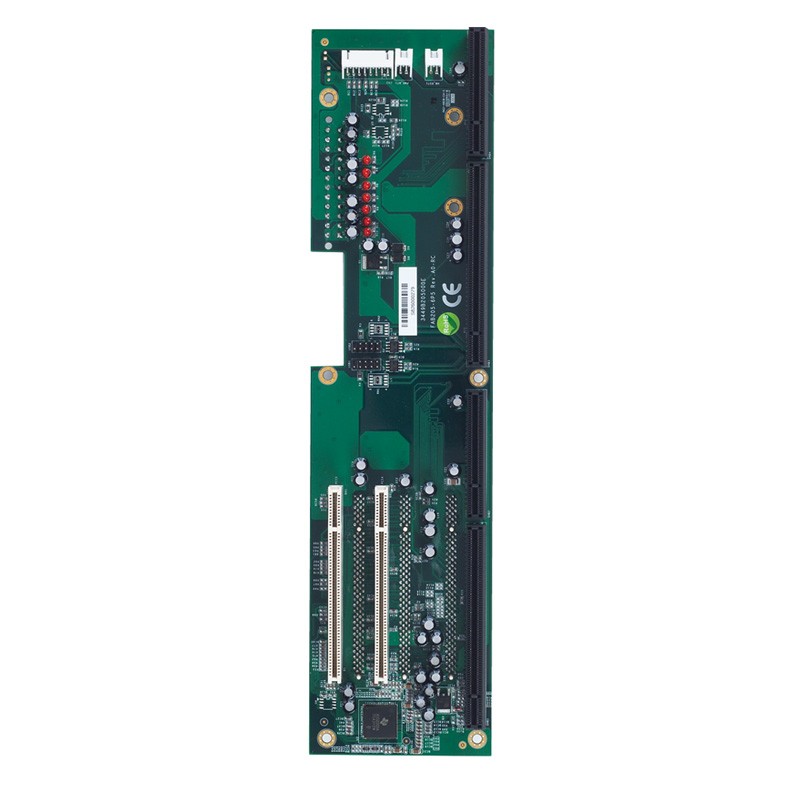

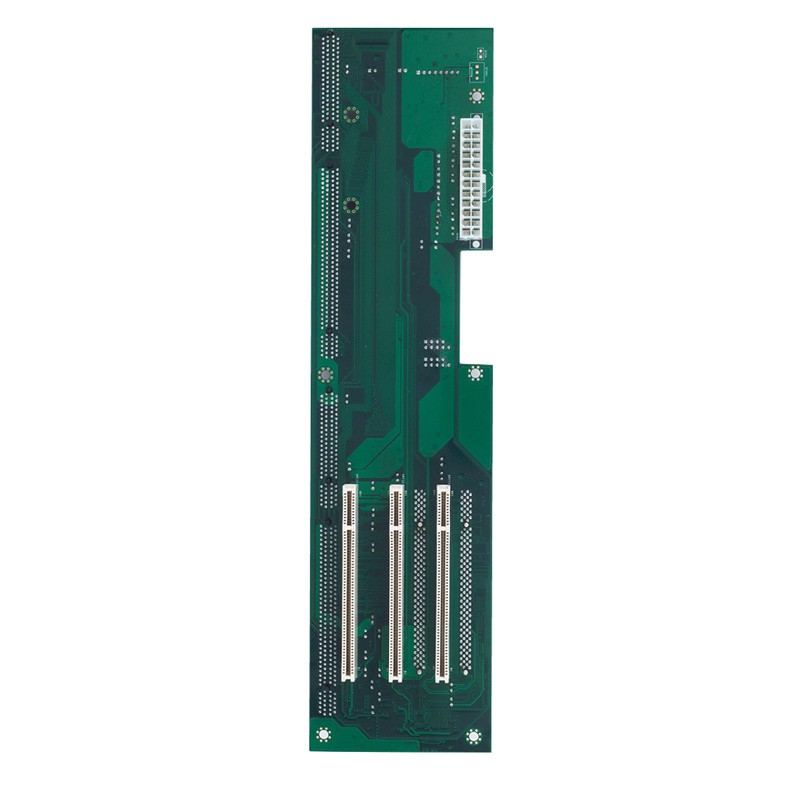

5-slot ATX-supported 2U Butterfly PICMG 1.3 Bus Passive Backplane

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
FAB205
FAB205
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Designed for PICMG 1.3 SBC
  • Compatible with AX61220TP/AX61222TP chassis
  • Supports one PICMG 1.3 CPU card slot and five 32bit/33MHz PCI slots
The FAB205 features a PICMG 1.3 CPU card slot, five 32bit/33MHz PCI slots, and built in a 24-pin ATX power connector and 8-pin connector for thermal detected board. The FAB205 is optimized to support AXIOMTEK's PICMG 1.3 system host boards, the SHB100 and SHB110, which are built around the PICMG 1.3 form factor. The FAB205 is compatible with the AX61220/AX61222 chassis.

Specifications

The object is temporarily unavailable, please check back later.

Ordering Information

  • FAB205
    5-slot ATX-supported 2U Butterfly PICMG 1.3 Bus Passive Backplane

Download

Drivers

Software

Manual

Date Description Version Download File
2022/04/12 Quick Manual V1.0
