Features
- Designed for PICMG 1.3 half-size SBC
- Compatible with the AX60551, AX60552 chassis
- Supports one PICMG 1.3 CPU card slot, one PCI Express x16 slot, and six 32bit/33MHz PCI slots

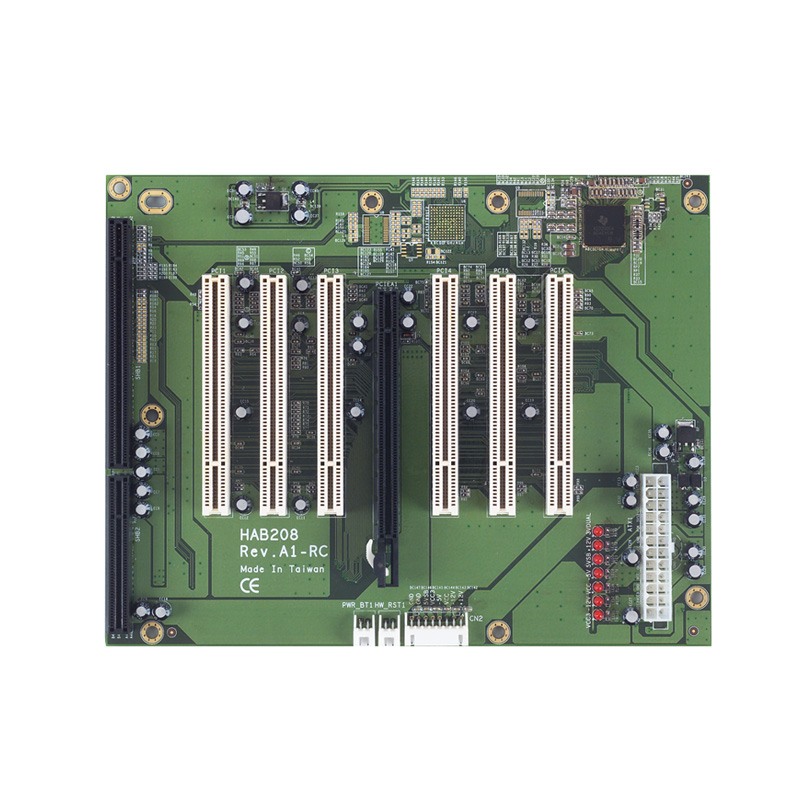

The HAB208 has a PICMG 1.3 CPU card slot, a PCIe x 16 slot and a total of six 32bit/33MHz PCI slots. The onboard 24-pin ATX power connector and 8-pin connector for thermal detected board are featured. Furthermore, the backplane supports two onboard SATA ports (optional function). The HAB208 is perfect fit for AXIOMTEK's half-size CPU cards, the SHB210 and SHB211, which are built around the PICMG 1.3 form factor. We have enclosures, the AX60551 & AX60552, to house the backplane.
Specifications
| The object is temporarily unavailable, please check back later. |
Ordering Information
-
HAB208
8-slot ATX-supported PICMG 1.3 Bus Half-size Backplane
Download
Drivers
Software
Manual
| Date |
Description |
Version |
Download File |
|
2022/04/12
|
Quick Manual
|
V1.0
|
|
