AX60551

Status : Available

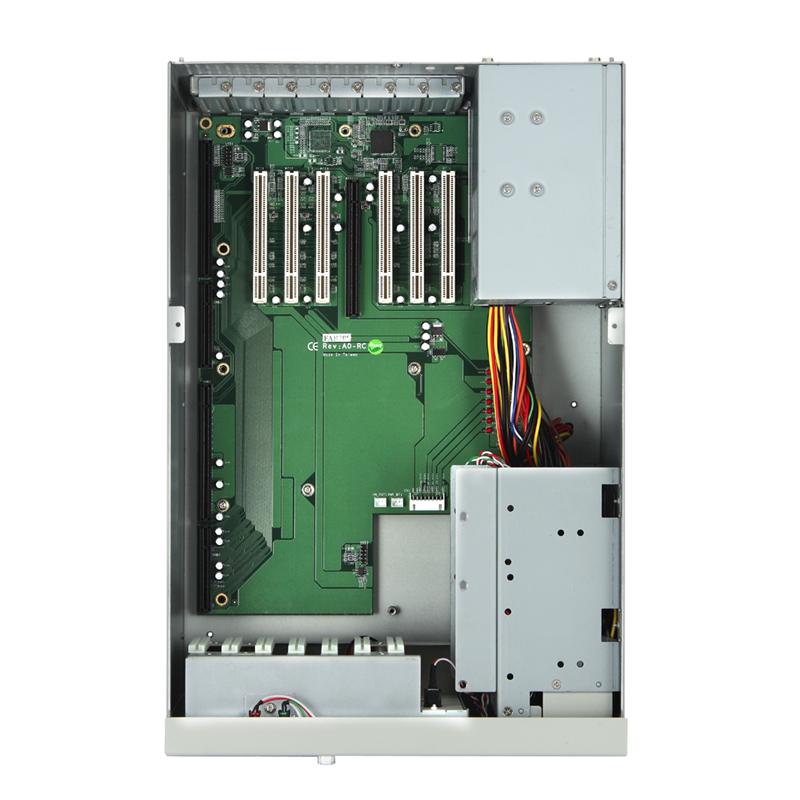

8-slot ShoeBox Chassis

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AX60551
AX60551
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Desktop or wallmount industrial computer chassis
  • One 5.25" and two 3.5" HDD drive bays
  • Equipped with a PS/2 type power supply

Specifications


Height
  • N/A
Expansion
  • 8-slot
  • 8-slot backplane
  • 0°C ~ 40°C (32°F ~ 104°F)
  • 280.2 mm (11") (W) x 415.8 mm (16.37") (D) x 197.3 mm
  • (7.77") (H)
  • 10.9 kg (24.03 lb)/11.2 kg (24.67 lb)
Drive Bay
  • 1 x 5.25" HDD drive bay
  • 2 x 3.5" HDD drive bay
Cooling System
  • 1 x 9 cm ball-bearing fan (51 CFM/each) with a removable filter
System Board
  • SBCs
Backplane Options
  • ATX6022/8, ATX6022/8GP7
  • FAB111, FAB116, FAB208
  • HAB208
I/O Interface
  • 2 x USB
  • 1 x PS/2 6-pin keyboard & mouse
Front Panel Indicators
  • 1 x power on/off
  • 1 x HDD
Front Panel Controls
  • 1 x power on/off
  • 1 x system reset
Power
  • PS/2 type
Operating Temperature
  • 0°C ~ 40°C (32°F ~ 104°F)
Dimensions
(W x D x H)
  • 280.2 x 415.8 x 197.3 mm (11" x 16.37" x 7.77")
Weight (net/gross)
  • 10.9 kg (24.03 lb)/11.2 kg (24.67 lb)
Certifications
  • CE

Ordering Information

  • AX60551WB/X300
    With ATX 300W power supply
  • AX60551WB/X400
    With ATX 400W power supply
  • AX60551WB/X500
    With ATX 500W power supply
  • Backplane Options
    ATX6022/8,ATX6022/8GP7,FAB111,FAB116,FAB208,HAB208
  • Power Supply Options
    PS300-XP2
