AX61135TM

Status : Available

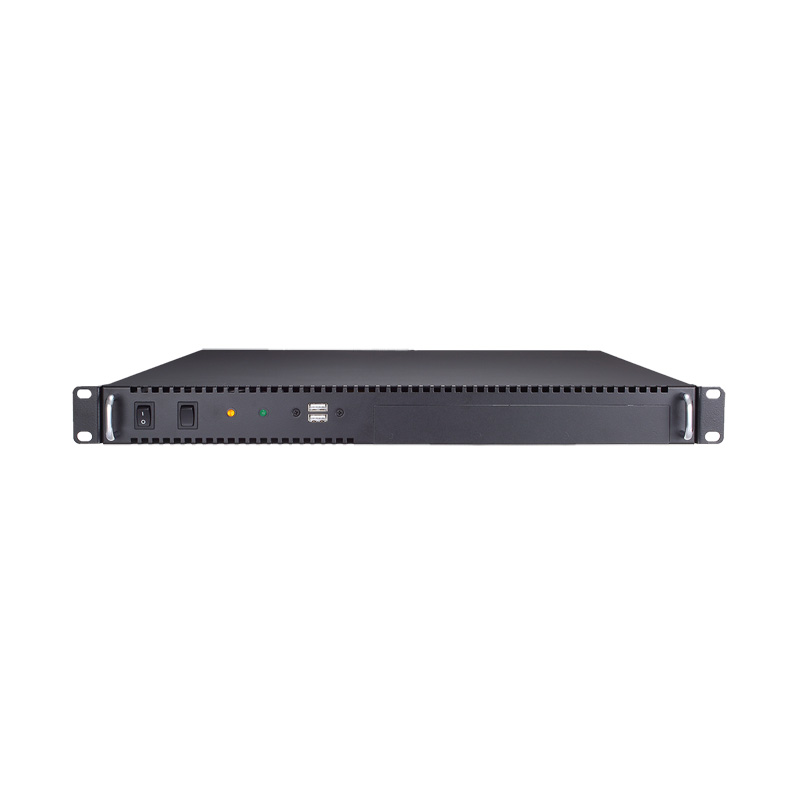

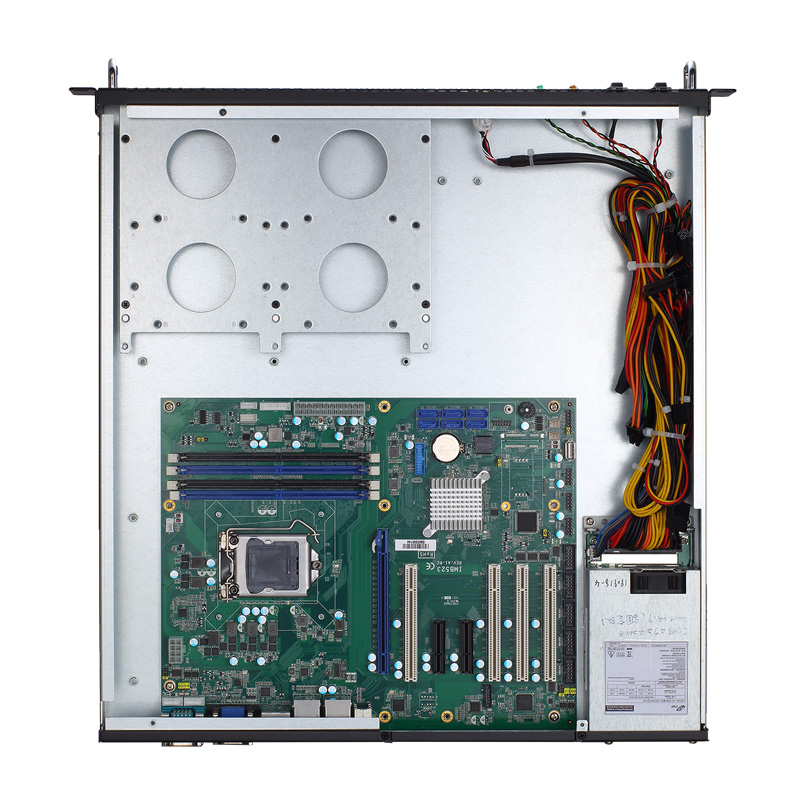

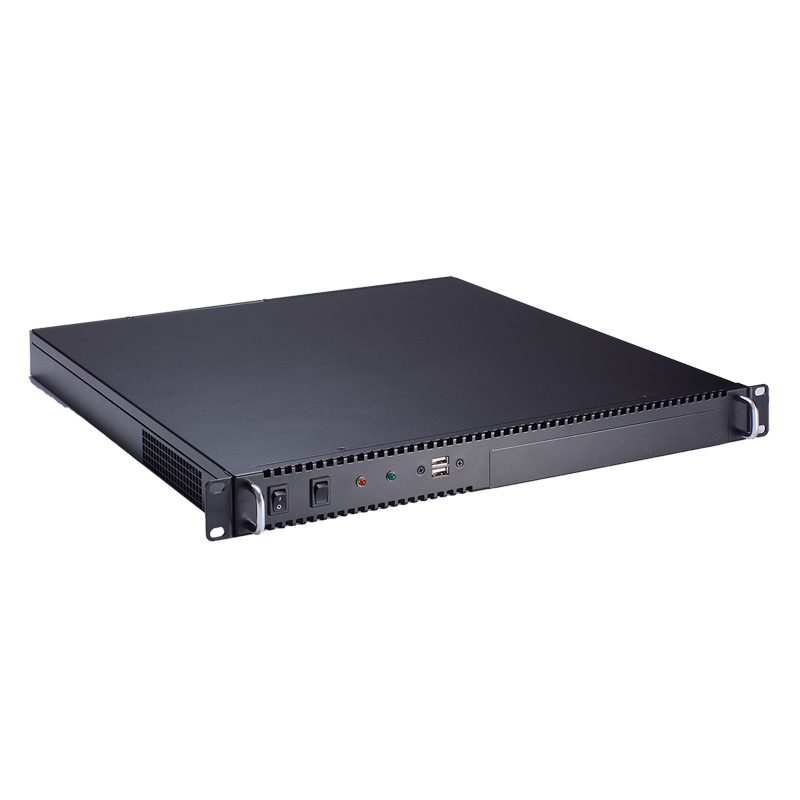

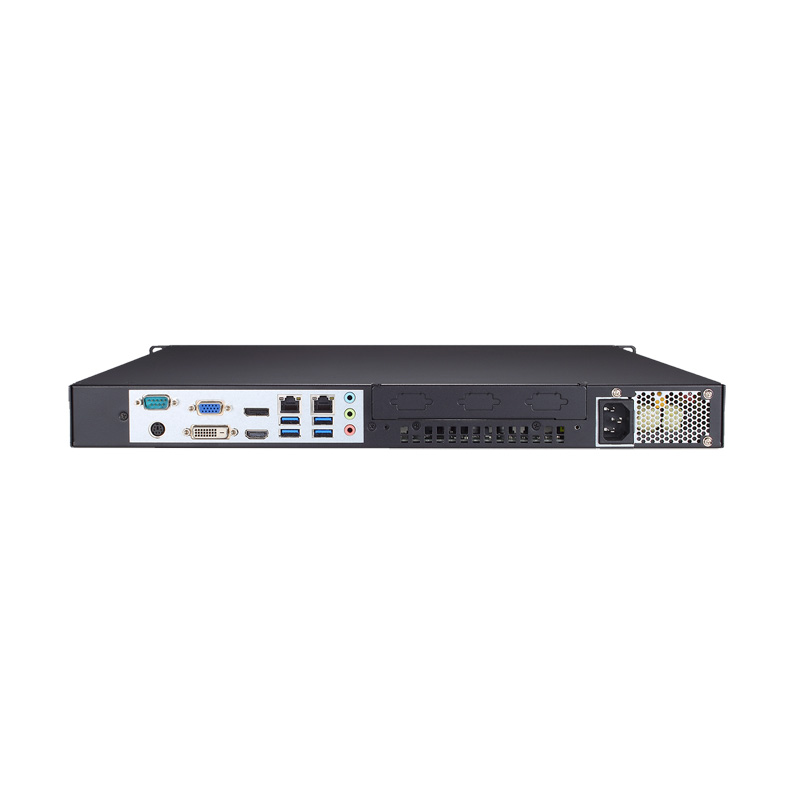

1U Rackmount Chassis for ATX Motherboard

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AX61135TM
AX61135TM
AX61135TM
AX61135TM
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Supports 12" x 9.6" standard ATX motherboard
  • Two 4 cm system fan
  • Supports 1U Flex ATX power supply
  • Internal 2 3.5" HDD or 2 2.5" HDD

Specifications


Height
  • 1U
Expansion
  • 1 x PCIe x16 slot via riser card
Drive Bay
  • Internal 2 x 3.5" HDD or internal 2 x 2.5" HDD
Cooling System
  • 2 x 4 cm ball-bearing fan
System Board
  • 12" x 9.6" ATX motherboard
Backplane Options
  • N/A
I/O Interface
  • 2 x USB 2.0
Front Panel Indicators
  • 1 x Power on/off
  • 1 x HDD
Front Panel Controls
  • 1 x Power on/off
Power
  • 1U Flex ATX
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(W x D x H)
  • 440 ± 1.0 x 471.50 ± 1.0 x 44 ± 1.0 mm (18.98" x 18.48" x 1.73")
Weight (net/gross)
  • 4.2 kg (9.26 lb)/6.7 kg (14.77 lb)
Certifications
  • CE

Ordering Information

  • AX61135TM (P/N-E261135100)
    1U rackmount chassis for ATX motherboard w/o PSU
  • 50954724200E
    ATX 300W FSP300-57FCB, L=750 mm
  • Motherboard options
    IMB540, IMB530, IMB520(R), IMB521(R), IMB523(R), IMB524(R), IMB525(R)
  • 881611352A0E
    AX61135TM, PCI riser card (slot 7) kit (E)
  • 881611351A0E
    AX61135TM, PCIe riser card (slot 1 and 3) kit (E)
  • 881611350A0E
    Hot-swappable HDD tray set (Need to buy 594L3220B00E)
  • 594L3220B00E
    Hot-swappable HDD power cable
  • 594G5208010E
    SATA3 Cable 180D w/B.sleeve L=50cm
  • 594G5208000E
    SATA3 Cable 180D w/lock & B.sleeve L=50cm
  • 59401210530E
    Power cable 6 x 2 to 4P x 2/SATA x 2/AT x 8, L=65 cm
  • 5076E510000E
    LGA1151/LGA1200 CPU heatsink
  • 59380703000E
    COM Cable x2 w/BKT (,40), P=2.54 mm, L=300 mm
  • 59380402010E
    COM Cable x1 w/Bracket, P=2.54 mm, L=300 mm
  • 59384500100E
    SBC84500 Audio Cable w/BKT, P=2, L=420 mm
  • 5938A808020E
    USB Cable w/BKT USB x 2, 2 x 5 (10P-KEY) 400 mm

Download

This object is currently under update, please visit later.
