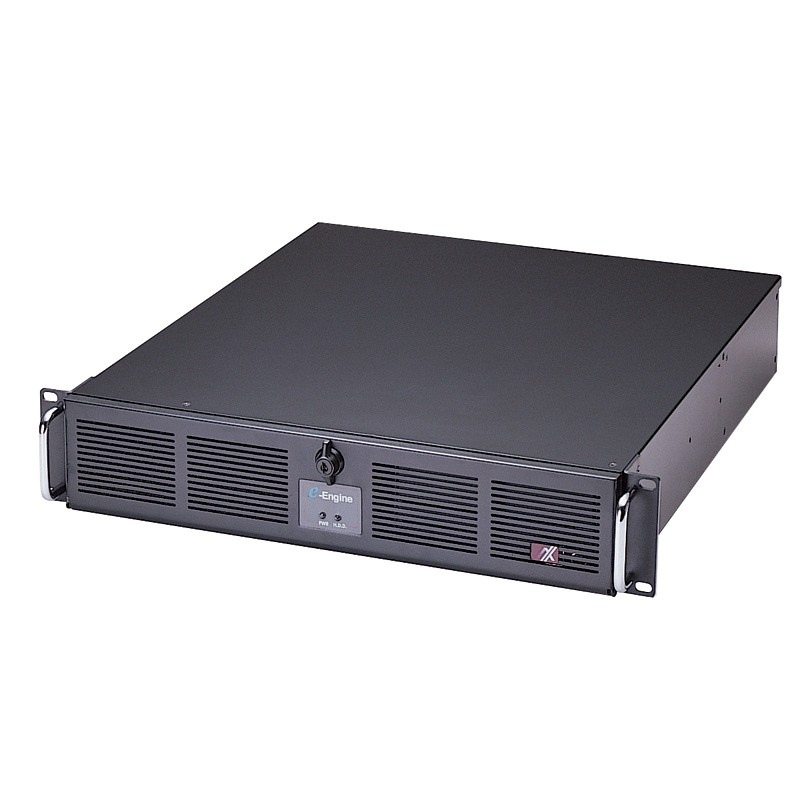

AX61221TM

Status : Available

2U Rackmount Chassis for ATX Motherboard

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AX61221TM
AX61221TM
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Supports 12" x 9.6" standard ATX Motherboard
  • Internal one 3.5" HDD drive bays
  • Front-accessible one 3.5", one 5.25" and one slim CD-ROM

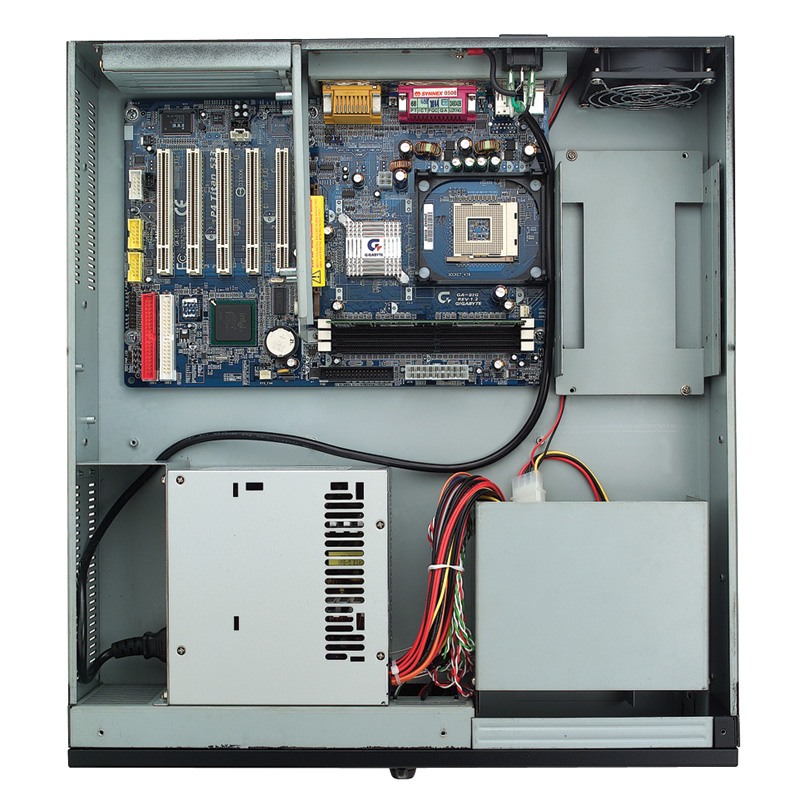

The AX61221TM is a 2U-high rackmount industrial computer chassis. The unit includes a 3-slot riser card (optional), and supports ATX Motherboard form factor. The front access I/O ports and drive bays are designed for ease access and maintenance. A wide range of standard computing peripherals can be integrated with the chassis to meet different application requirements.

Specifications


Height
  • 2U
Expansion
  • 3-slot
Drive Bay
  • 1 x 3.5" HDD drive bay & 1 x 5.25" HDD drive bay; internal 1 x 3.5" HDD drive bay
Cooling System
  • 1 x 8 cm ball-bearing fan (38.6 CFM/each)
System Board
  • 12" x 9.6" ATX Motherbard
Backplane Options
  • N/A
I/O Interface
  • 2 x USB
  • 1 x Slim-line CD-ROM
Front Panel Indicators
  • 1 x Power on/off
  • 1 x HDD
Front Panel Controls
  • 1 x Power on/off
  • 1 x System reset
Power
  • PS/2 type
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(W x D x H)
  • 481.4 x 450 x 88.9 mm (19" x 17.7" x 3.5")
Weight (net/gross)
  • 12 kg (26.45 lb)/13.5 kg (29.77 lb)
Certifications
  • CE

Ordering Information

  • AX61221TM/X400
    With ATX 400W power supply
  • AX61221TM/X600
    With ATX 600W power supply
  • Power Supply Options
    PS400-XP2, PS600-XP2

Download

This object is currently under update, please visit later.
