AX61222TB/AX61220TB

Status : Available

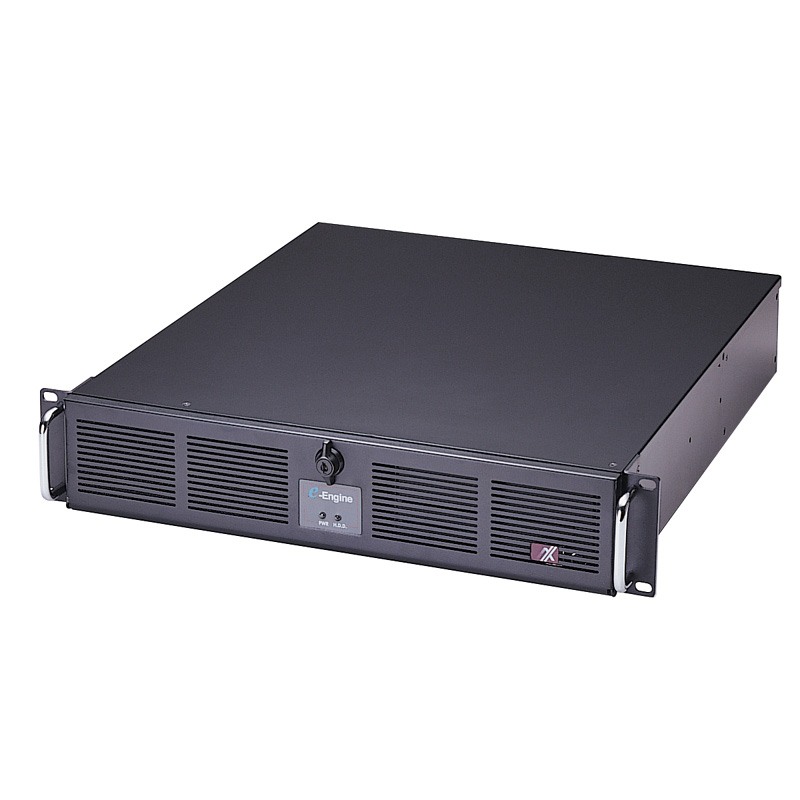

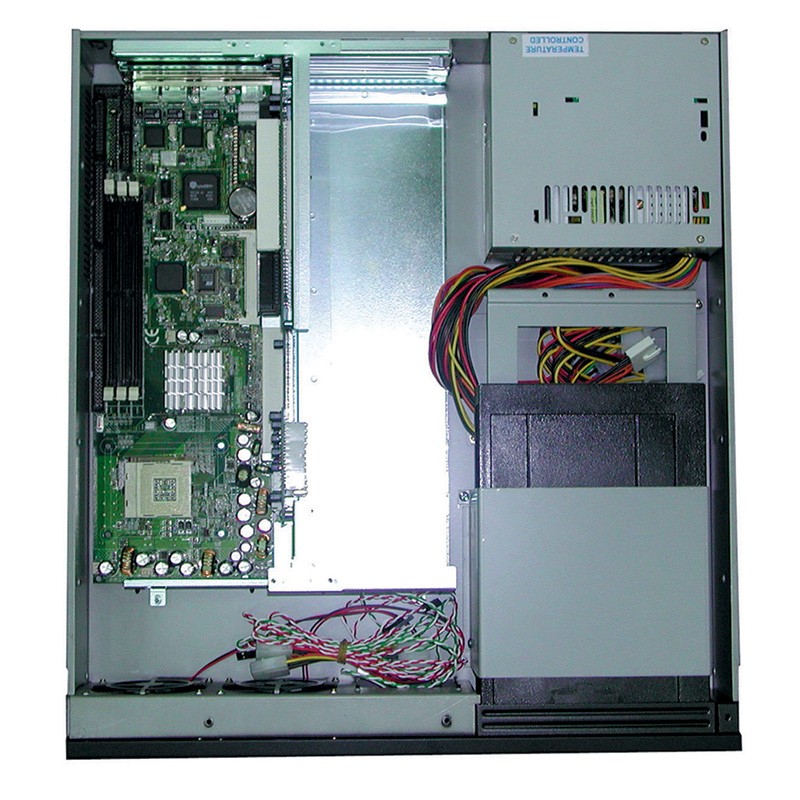

2U Compact Rackmount Chassis for Full-size SHB/SBC Series

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AX61222TB/AX61220TB
AX61222TB/AX61220TB
AX61222TB/AX61220TB
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 2U rackmount design in depth of 450 mm (AX61222TB)/475 mm (AX61220TB)
  • PICMG SBC structure with 5 free slots for expansion
  • Front-accessible one 5.25" HDD drive bay, one slim-line
  • CD-ROM, one 3.5" HDD drive bay and one internal HDD drive bay

Specifications


Height
  • 2U
Expansion
  • 5-slot
Drive Bay
  • 2 x 3.5" HDD drive bay
  • 1 x 5.25" HDD drive bay
Cooling System
  • 2 x 8 cm ball-bearing fans (42.5 CFM/each) with a removable filter
System Board
  • PICMG 1.0 & PICMG 1.3 SBCs
Backplane Options
  • ATX6022/6VP4
  • FAB105-V1
  • FAB205
  • FAB210
I/O Interface
  • 2 x USB
  • 1 x PS/2 6-pin
  • 1 x Slim-line CD-ROM
Front Panel Indicators
  • Power on/off
  • HDD
Front Panel Controls
  • 1 x Power on/off
  • 1 x System reset
Power
  • PS/2 type (optional HRP for AX61220TP)
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +104°F)
Dimensions
(W x D x H)
  • 481.40±1.0 x 450.00±1.0 x 88.90±1.0 mm (18.95" x 17.7" x 3.5") (AX61222TB)
  • 481.40±1.0 x 475.00±1.0 x 88.90±1.0 mm (18.95" x 18.7" x 3.5") (AX61220TB)
Weight (net/gross)
  • 8.22 kg (18.12 lb)/10.26 kg (22.62 lb) (AX61222TB)
  • 8.6 kg (18.96 lb)/12.02 kg (26.49 lb) (AX61220TB)
Certifications
  • CE

Ordering Information

  • AX61222TB(AX61220TB)/400
    With ATX 400W power Supply
  • AX61222TB(AX61220TB)/600
    With ATX 600W power Supply
  • AX61220TB

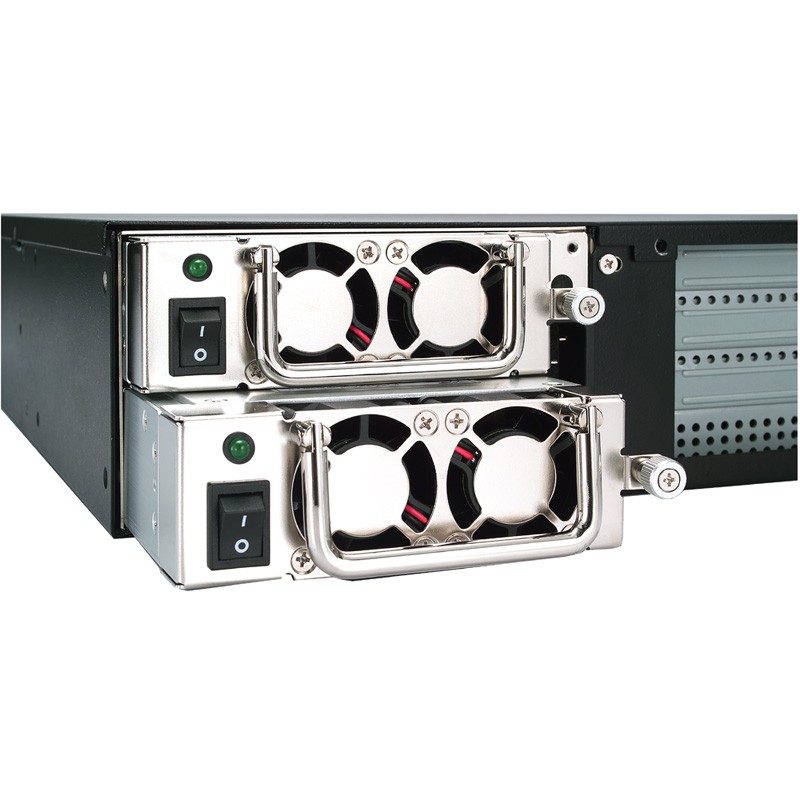

    ATX400W redundant power supply with PFC
  • Backplane Options
    ATX6022/6VP4, FAB105-V1, FAB205, FAB210
  • Power Supply Options
    PS400-XP2, PS600-XP2, PS400-HRP

Download

Drivers

Date Description Version Download File
2023/06/19 aaa V1.0

Software

Manual

Design Guide

Technical Announcement

Certificates

You Might Also Like

Picture of ATX6022/6VP4

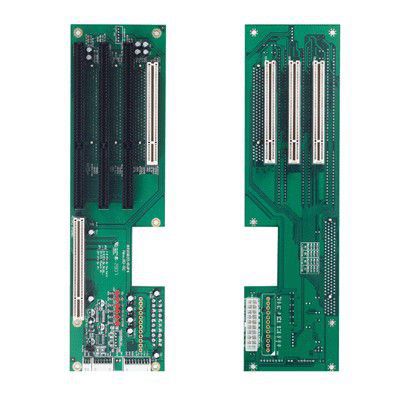

ATX6022/6VP4
