AX61223TM

Status : Available

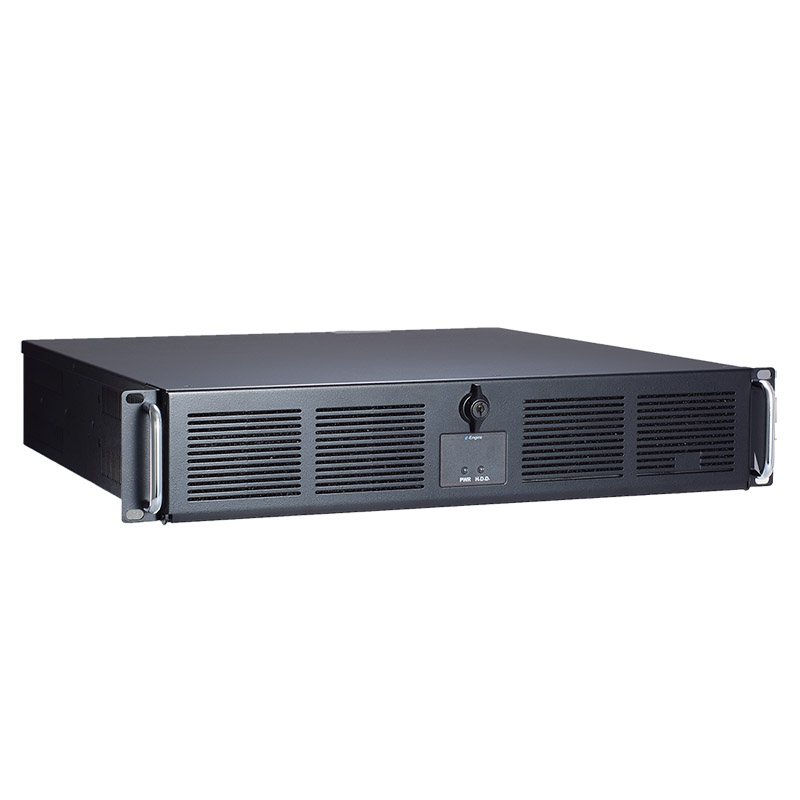

2U Rackmount Chassis for ATX/Micro ATX Motherboard

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AX61223TM
AX61223TM
AX61223TM
AX61223TM
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

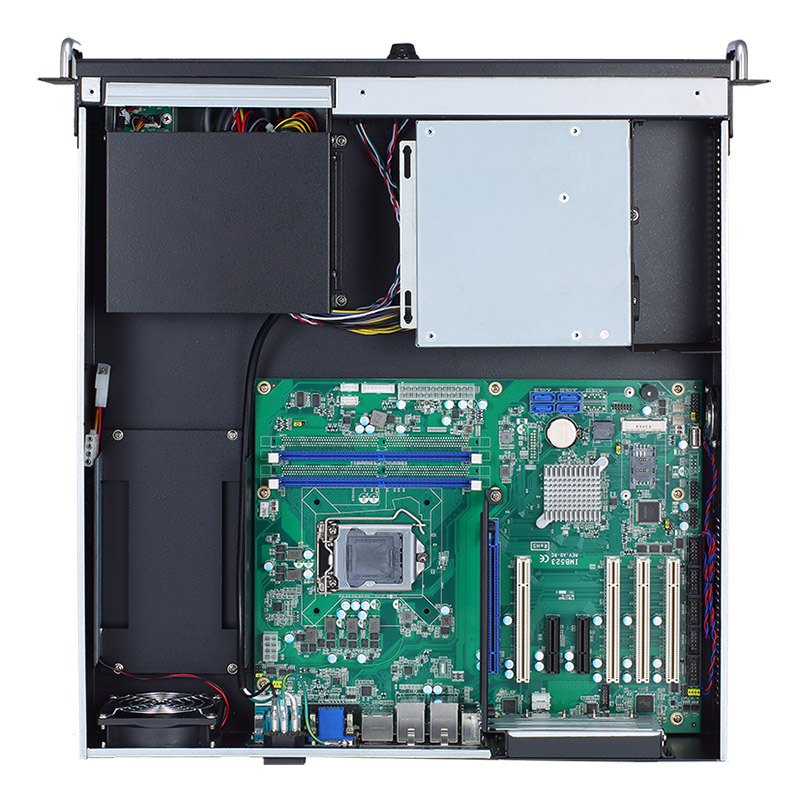

  • Supports ATX/Micro ATX motherboard
  • Supports ATX power supply
  • Internal one 3.5" HDD drive bays

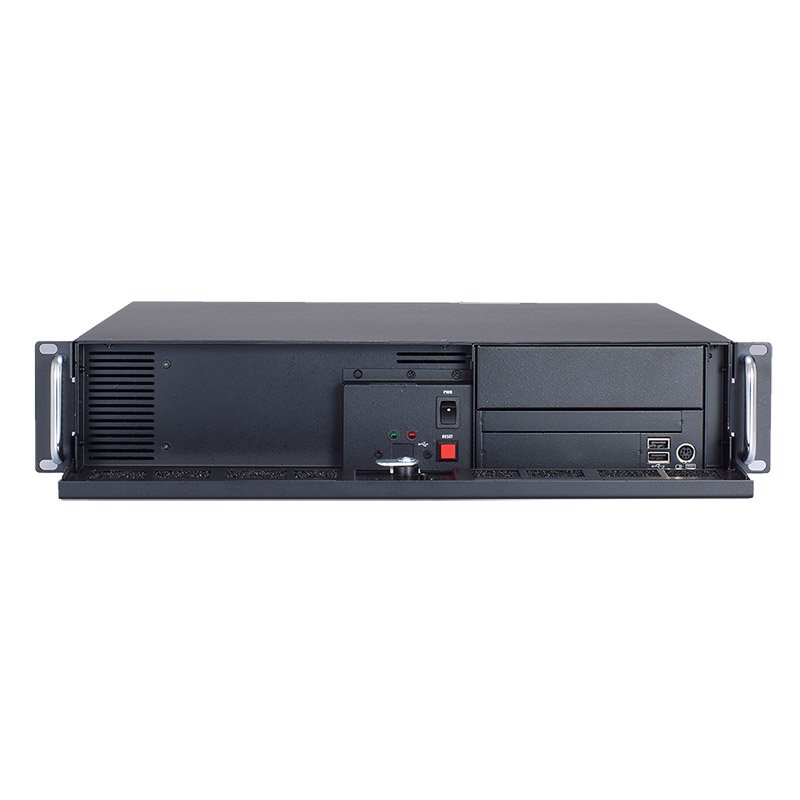

  • Front-accessible one 3.5", one 5.25" HDD drive bays and one slim CD-ROM bay

Specifications


Height
  • 2U
Expansion
  • By riser card (optional)
Drive Bay
  • 1 x Slim-line CD-ROM bay
  • 1 x 3.5" HDD drive bay
  • 1 x 5.25" HDD drive bay
  • 1 x 3.5" HDD drive bay (Internal)
Cooling System
  • 1 x 8 cm ball-bearing fan (38.6 CFM/each)
System Board
  • ATX/Micro ATX Motherboard
Backplane Options
  • N/A

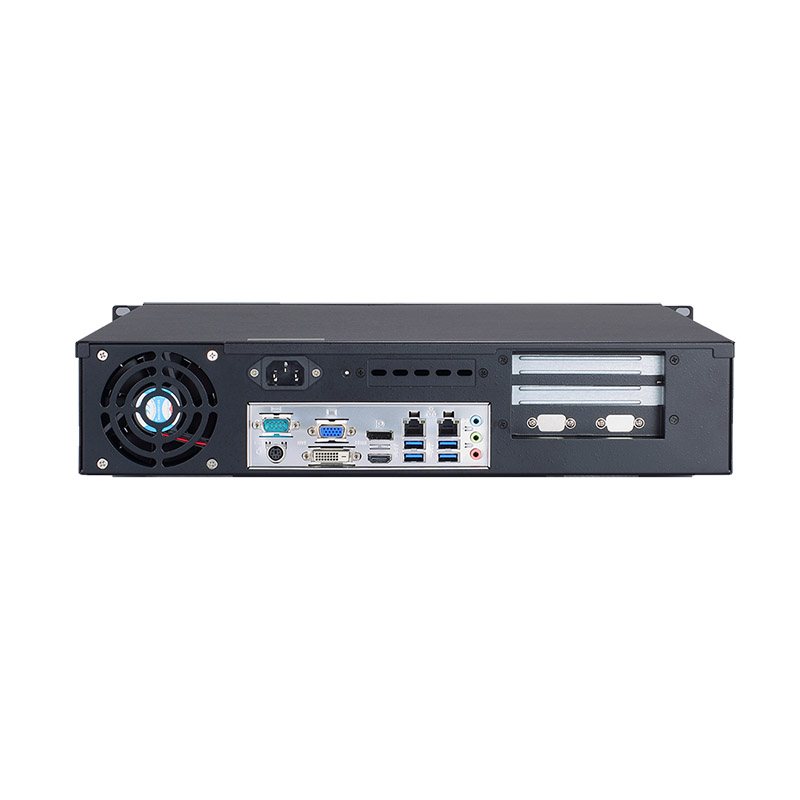

I/O Interface
  • 2 x USB
  • 1 x PS/2
  • 2 x USB (flexible USB kit, optional)
  • 2 x COM opening
  • 1 x I/O bracket space
Front Panel Indicators
  • 1 x Power on/off
  • 1 x HDD
Front Panel Controls
  • 1 x Power on/off
  • 1 x System reset
Power
  • PS/2 Type
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(W x D x H)
  • 481.4±1.0 x 450±1.0 x 88.5±1.0 mm (18.95" x 17.72" x 3.52")
Weight (net/gross)
  • 12 kg (26.45 lb)/13.5 kg (29.77 lb)
Certifications
  • CE

Ordering Information

  • AX61223TM (P/N-E261223100)
    2U black rackmount chassis for ATX/Micro-ATX motherboard w/o PSU
  • 50904B24010E
    ATX 400W FSP-400-70PFL (SK)
  • 50916A06000E
    ATX 600W SS-600ES2
