iNA110

Status : Available

DIN-Rail Cybersecurity Gateway with Intel Atom® x5-E3930/E3940 Processor and 4 LAN with LAN Bypass

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
iNA110
iNA110
iNA110
iNA110
UL508

UL508

UL1604

UL1604

+5V

+5V

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Cost-effective with fanless design
  • Intel Atom® x5-E3930/E3940 processor (Apollo Lake)
  • 4 GbE RJ-45 (Intel® I210-IT) with LAN Bypass
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
  • Supports TPM 2.0
  • Ideal for ICS cybersecurity and critical infrastructure protection

Specifications


Form Factor

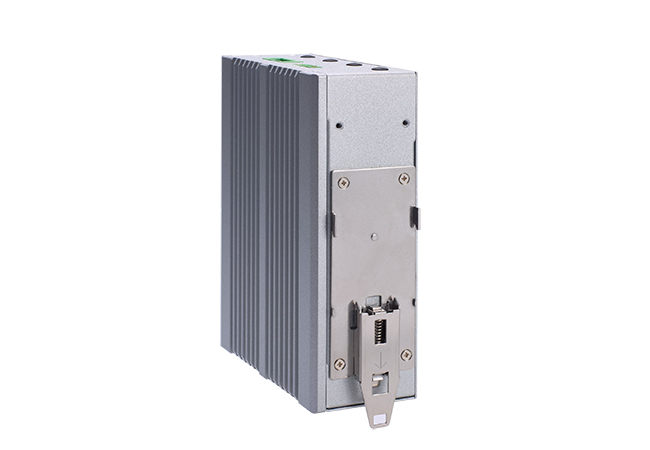

  • DIN-rail, wall mount (optional)
CPU
  • Intel Atom® x5-E3930/E3940 processor (Apollo Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB non-ECC memory
BIOS
  • AMI
Ethernet
  • 4 x GbE RJ-45 (Intel® I210-IT) with 1-pair LAN Bypass
Storage
  • 1 x 2.5" SATA 3.0 SSD
  • 1 x Half-size mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion
  • 1 x Half-size PCIe Mini Card slot with SATA/USB signal
  • 1 x Full-size PCIe Mini Card slot with USB signal (with 1 x SIM slot)

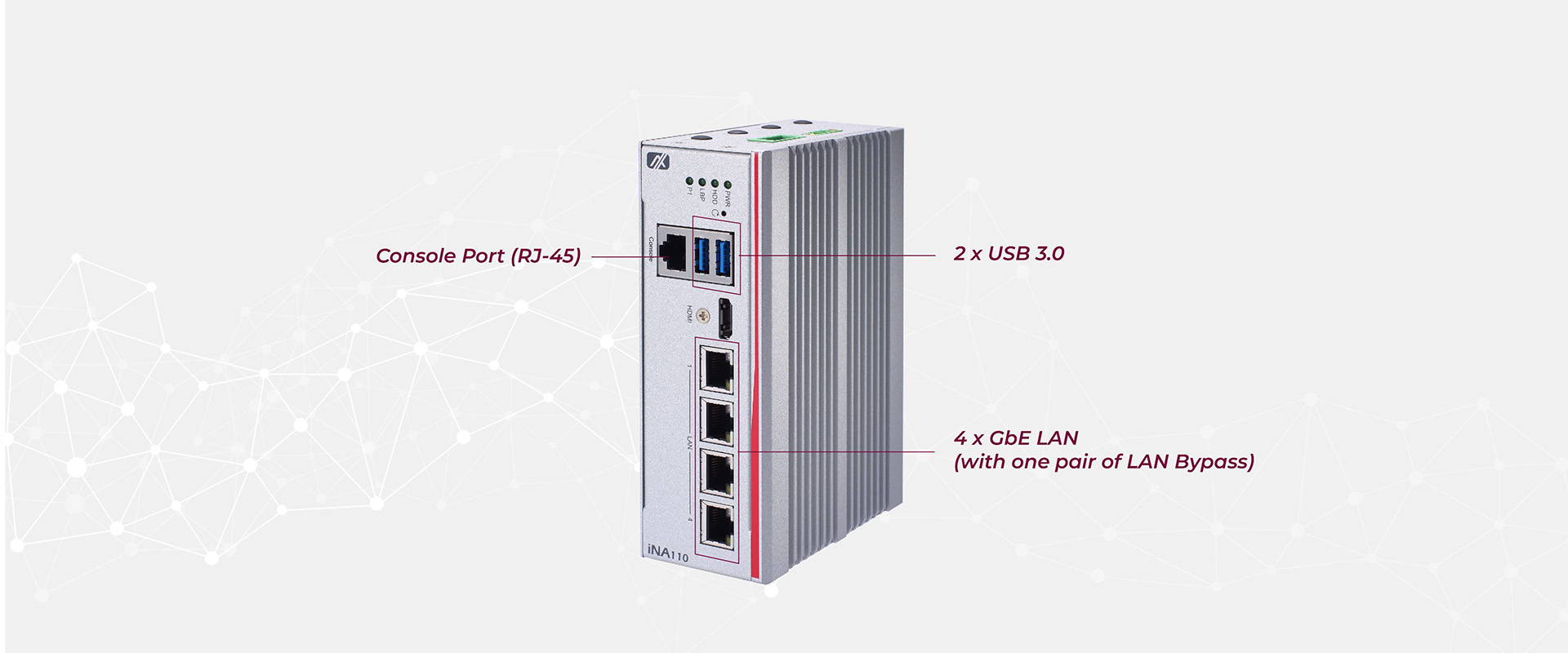

I/O Interface
  • 4 x GbE RJ-45 (Intel® I210-IT) with 1-pair LAN Bypass
  • 1 x HDMI
  • 2 x USB 3.0
  • 1 x Console port (RJ-45)
  • 4 x Copper LAN port

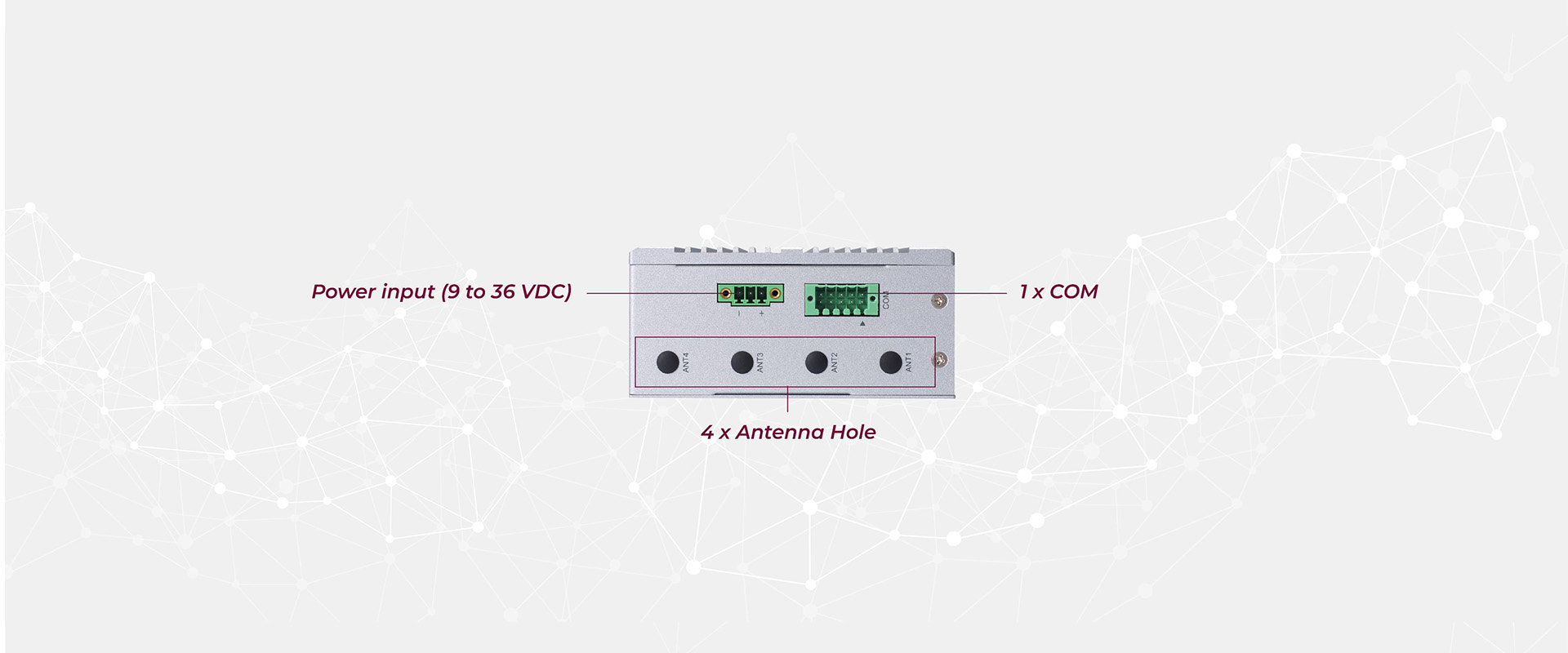

  • 1 x COM port (RS-232/422/485) with terminal block
  • 1 x Power input connector
  • 1 x Tact switch for H/W reset
  • 4 x Antenna hole
Power Supply
  • 1 x Terminal block, 9 to 36 VDC (typical 12/24V)
Others
  • TPM 2.0
Watchdog Timer
  • 255 stepping for system reset
Dimensions
(W x D x H)
  • 51 x 110 x 155 mm (2.01" x 4.33" x 6.10")
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Weight (net/gross)
  • TBD
OS
  • Linux, Windows® 10
Certifications
  • CE (Class A), FCC (Class A)

Ordering Information

  • iNA110-E3930-A
    DIN-rail cybersecurity gateway with Intel Atom® x5-E3930 processor and 4 GbE LAN
  • iNA110-E3940-A
    DIN-rail cybersecurity gateway with Intel Atom® x5-E3940 processor and 4 GbE LAN
  • 2.5" SATA SSD or HDD
  • DDR3L SO-DIMM
  • mSATA
  • Wall mount kits
  • Wi-Fi module
  • 3G/LTE module
  • 12V, 36W adapter
  • Power cord
