Features
- Intel®XL710-BM1 Ethernet controller
- Four 10 GbE SFP+ ports
- PCIe 3.0 x8 golden finger
- RoHS compliant

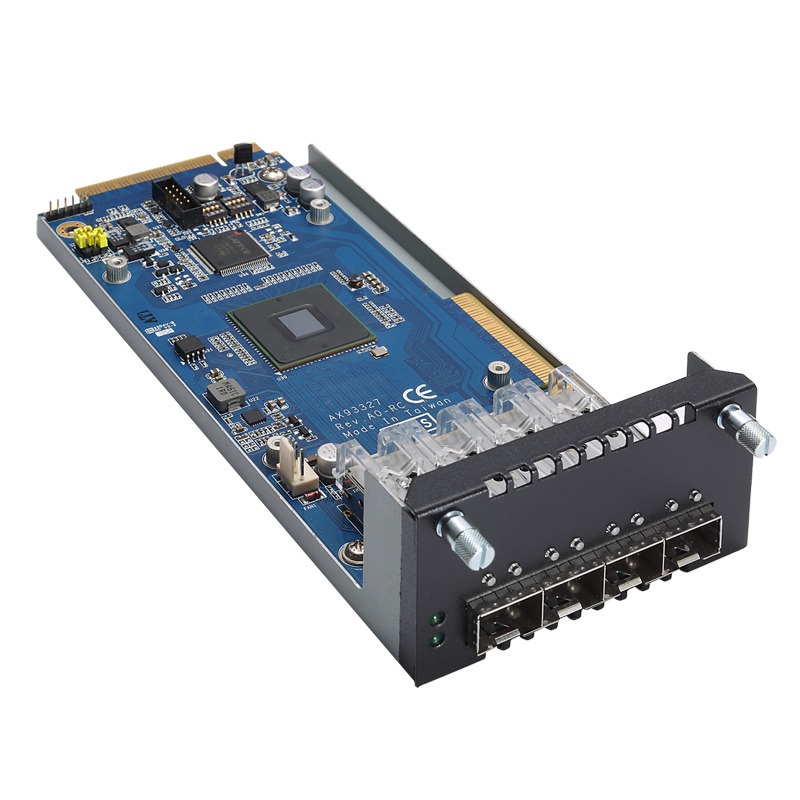

The AX93327 LAN module is built with an Intel® XL710-BM1 10 GbE Ethernet controller, incorporating the Intel® DPDK, Jumbo Frames, SR-IOV and VMDq technologies to optimize the processing of network data traffic. This LAN module’s high-density design is specifically adapted for Axiomtek’s 1U and 2U rackmount network appliances, also featuring four 10 GbE SFP+ ports plus a PCIe 3.0 x8 golden finger for high-speed transmission needs, giving customers the freedom to streamline their individual network infrastructure deployments to fulfill fast-changing networking demands quickly and cost-effectively.
Specifications
| Controller |
|
| Speed/Connector |
|
| Interface |
|
| LAN Bypass |
|
| Jumbo Frames |
|
| Virtualization |
|
| Acceleration |
|
| Watchdog Timer |
|
| Available Models |
- NA361R, NA362R, NA552, NA570, NA590, NA580, NA720, NA850, NA860, NA861
|
| Operation Temperature |
- 0°C ~ +40°C (+32°F ~ +104°F)
|
| Humidity |
- 0°C ~ +40°C (+32°F ~ +104°F)
- 10% ~ 90% RH, non-condensing
- 78.9 mm (3.11") x 175 mm (6.89") x 42.8 mm (1.69")
|
| Dimensions |
- 78.9 x 175 x 42.8 mm (3.11" x 6.89" x 1.69")
|
Ordering Information
-
AX93327-4FI 10G XL710 w/ LAN Tray (P/N-E393327101)
LAN module with Intel® XL710, 4 10Gbe fiber ports
