1U Rackmount Network Appliance with Intel Xeon D-1700

Tel	+886-2-8646-2111
E-mail	info@axiomtek.com.tw

Features

Intel® Xeon® processor D-1700 family
6 DDR4-2933 R-DIMM/U-DIMM, up to 384GB memory
Four 10GbE SFP+, four 2.5GbE and four 1GbE RJ-45 onboard
2 expandable LAN modules in support of 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass (optional)
Supports 1U redundant power supply (optional)
Supports IPMI (optional)
Suitable for enterprise firewall, network bandwidth controller, and UTM applications

Form Factor	1U rackmount
CPU	Intel® Xeon® processor D-1700 family (Ice Lake D)
Chipset	SoC integrated
System Memory	6 x DDR4-2933 R-DIMM/U-DIMM, up to 384GB non-buffer non-ECC/ECC memory
BIOS	AMI
Ethernet	4 x 2.5 GbE and 4 x 1GbE RJ45 4 x 10GbE SFP+ 2 x LAN module, up to 28 LAN ports (optional)
LAN Bypass	LAN Bypass function through latch relay (2 pairs)
LAN Module	2 x LAN module, up to 28 LAN ports (optional)
Storage	2 x 2.5" SATA HDD/SSD bay 1 x M.2 2280 Key M slot
Expansion	N/A

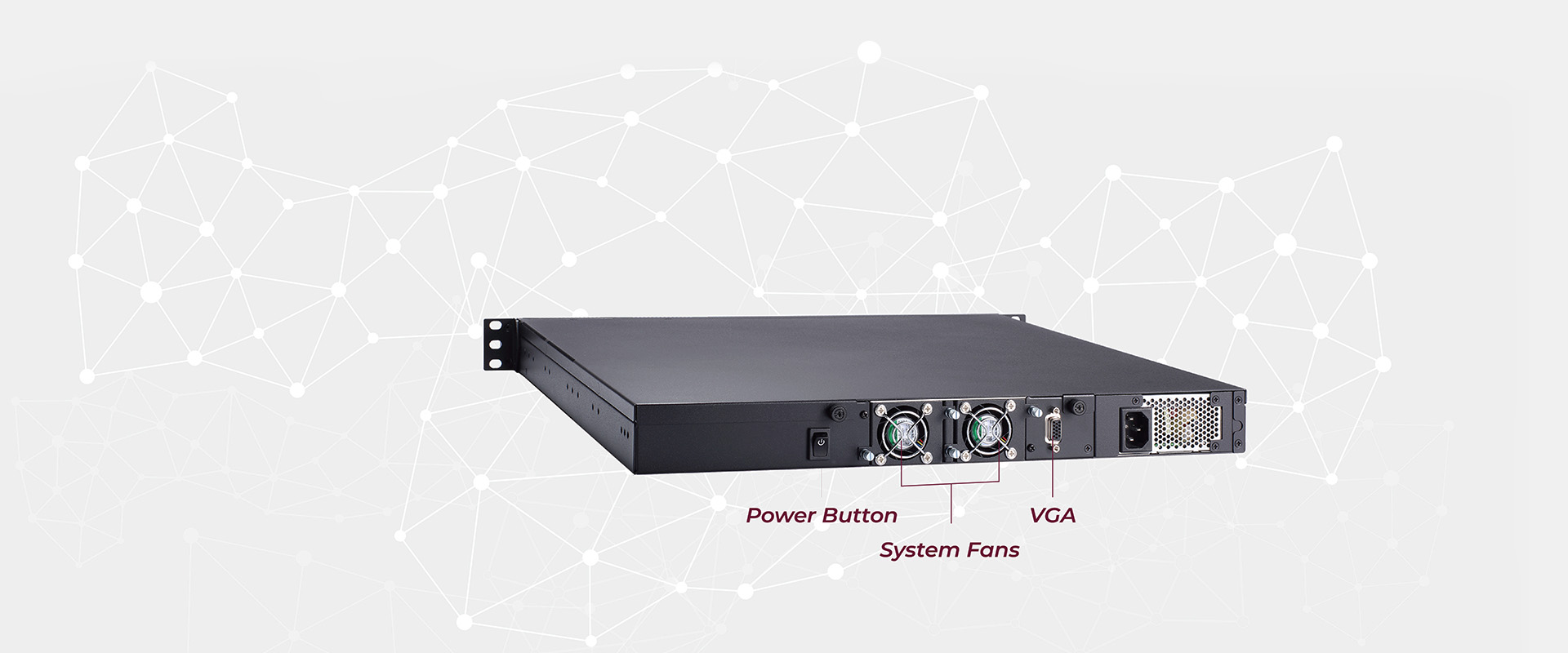

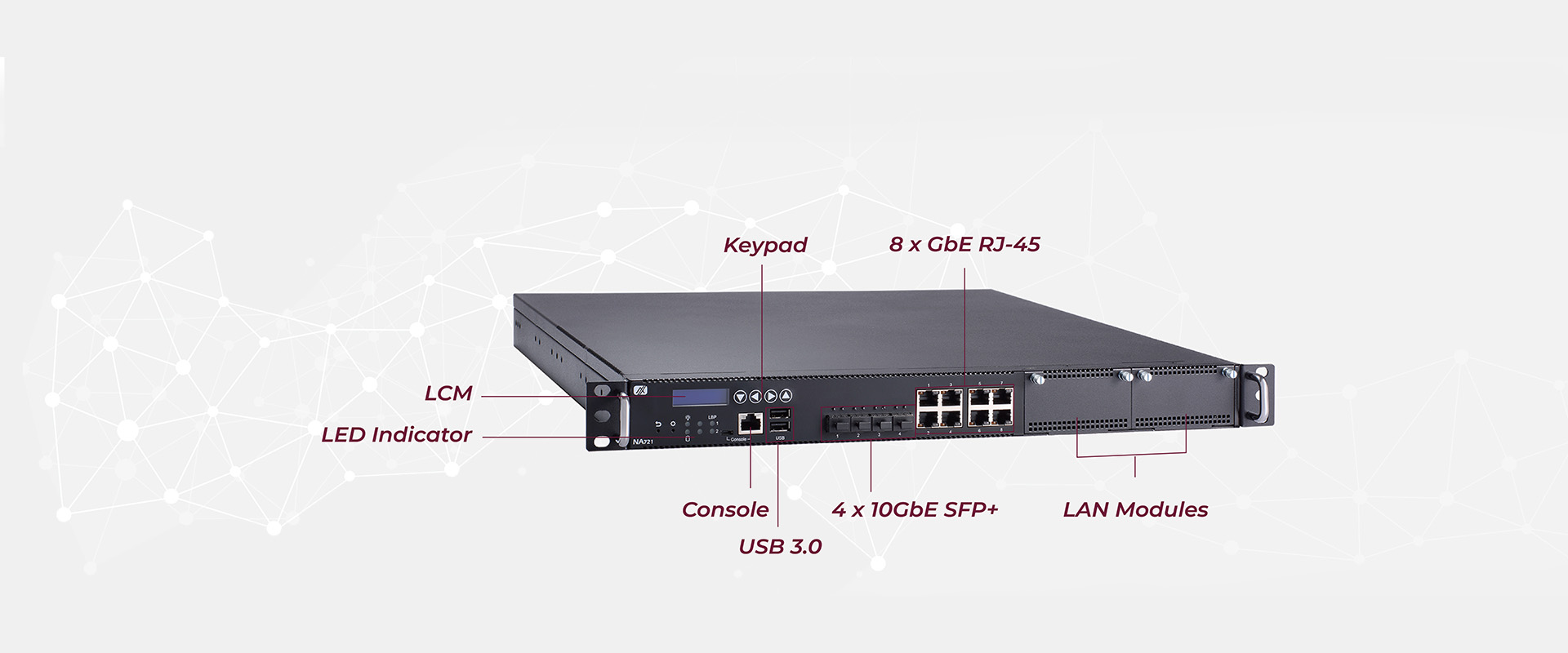

I/O Interface	1 x Console (RJ-type) 2 x USB 3.0 8 x RJ-45 + 4 x SFP+ 1x VGA (optional)
Power Supply	300W ATX power supply 400W 1U redundant power supply (optional)
LCM Module	Yes
Watchdog Timer	255 stepping for system reset 8 stepping for LAN Bypass
Operating Temperature	0°C to +45°C (+32°F to +113°F)
Dimensions (H x W x D)	44 x 430 x 450 mm (1.73" x 16.93" x 17.1")
Weight (net/gross)	8.5 kg (18.74 lb)/9.8 kg (21.61 lb)
OS	Linux
Certifications	CE/FCC Class A
Others	Onboard TPM 2.0 (optional) Onboard BMC AST2500, IPMI 2.0 (optional)

NA721-A (P/N-E26E721100)
1U rackmount network appliance platform with Intel® Xeon® processor D-1700 family, 4 2.5GbE LAN, 4 GbE LAN, 4 10GbE SFP+, 2-pair LAN Bypass, TPM 2.0, 2 optional NIC slots, AC single 300W
NA721-B (P/N-E26E721101)
1U rackmount network appliance platform with Intel® Xeon® processor D-1700 family, 4 2.5GbE LAN, 4 GbE LAN, 4 10GbE SFP+, 2-pair LAN Bypass, TPM 2.0, 2 optional NIC slots, AC redundant 400W
5916E552000E
DB9F-RJ-45 1.8M console cable for Cisco
594E8602000E
VGA cable IDC 16P 2.0/D_SUB 15P L=37cm
59906000010E
Power cord YP-12/YC-12 (Japan)
59903000000E
Power cord YP-22/YC-12 (Europe)
59905000000E
Power cord YP-35/YC-12 (Australia)
59904010000E
Power cord/UK YP-61A/YC-12 L=1830 mm
E393316109
AX93316-8GI-i350 with LAN tray
E393322102
AX93322-8FI-350 with LAN tray　
E393322103
AX93322-8MIL-350 with LAN tray　
E393336102
AX93336-4GIL-i350 2 LBP with LAN tray
E393336103
AX93336-4FI-i350 with LAN tray
E393307100
AX93307-2FI 10G 82599ES with LAN tray
E393327101
AX93327-4FI 10G XL710 with LAN tray
E393331100
AX93331-2QFI dual-port 40GbE with LAN tray
E393332100
AX93332-25FI dual-port 25GbE with LAN tray
