tBOX110

Status : Available

Vehicle and Rail-grade Fanless Embedded System with Intel Atom® x5-E3940 Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

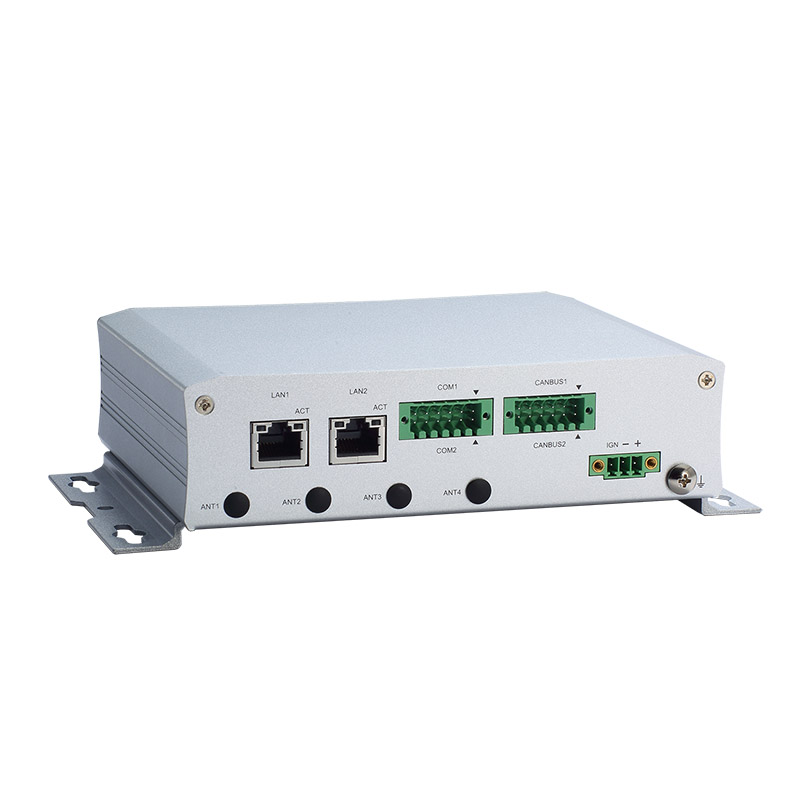

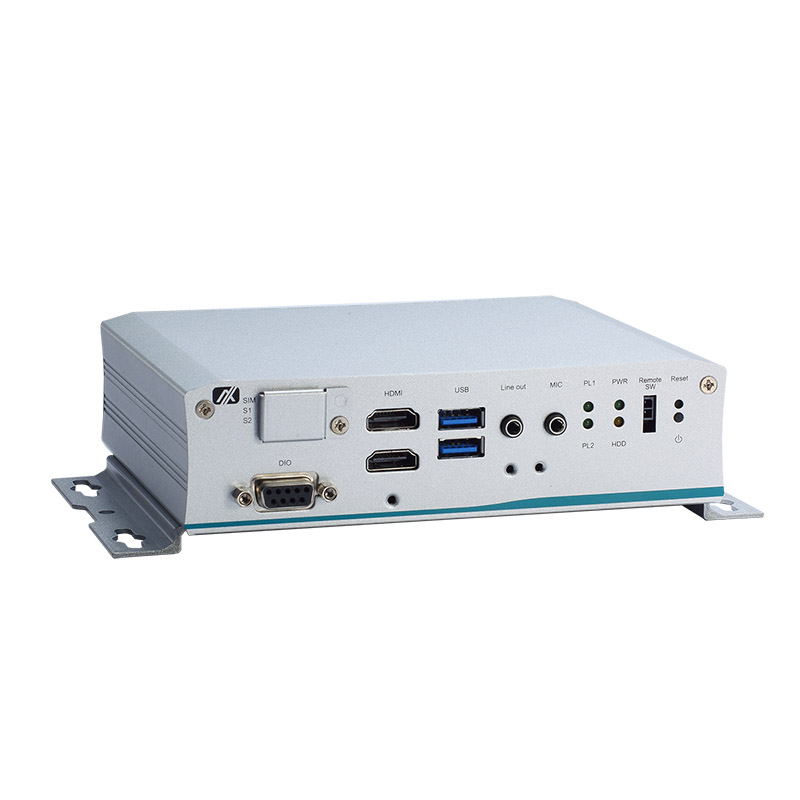

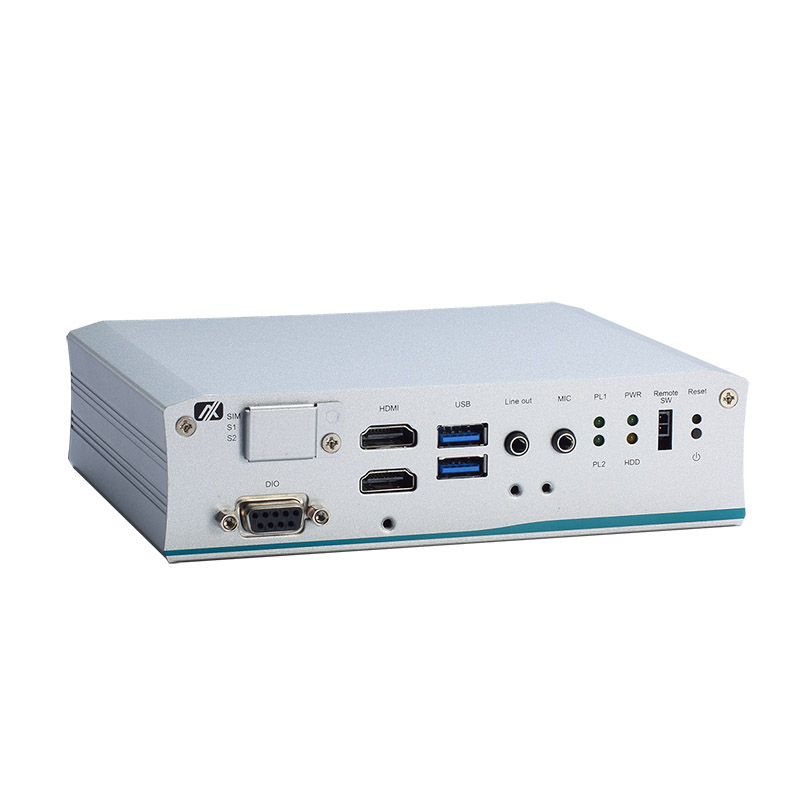

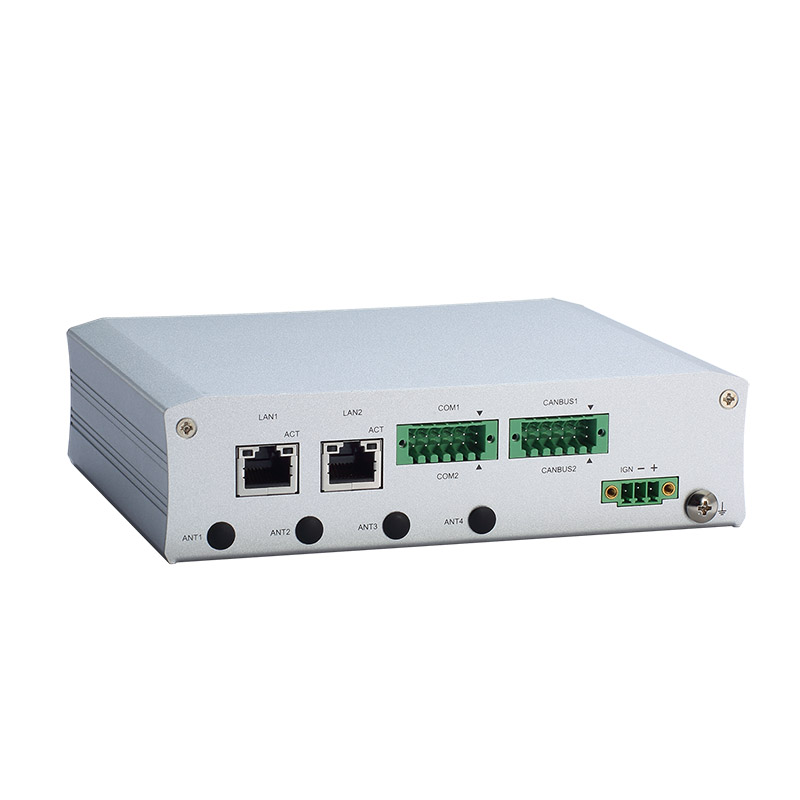

tBOX110
tBOX110
tBOX110
tBOX110
tBOX110
tBOX110
PoE

PoE

UL508

UL508

IP65

IP65

OPS

OPS

+5V

+5V

E-Mark

E-Mark

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • CE, FCC, LVD, EN 45545-2 and EN 50155 certified; ISO7637-2 compliant
  • Wide operating temperatures from -40°C to +70°C (EN 50155 OT4)
  • Wide range 9 to 36VDC and full range 24 to 110VDC (EN 50155 compliant) power input
  • Smart ignition for safe shutdown and vehicle battery protection
  • Compact size with rich I/O connectivity, TPM2.0 supported
Diverse Communication Options

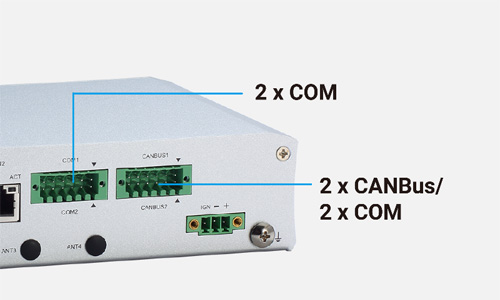

The highly integrated transportation PC combines diverse communication interfaces, including two COM, two CANBus (two COM for option), and one DIO.
tBOX110
tBOX110
Smart Ignition Support

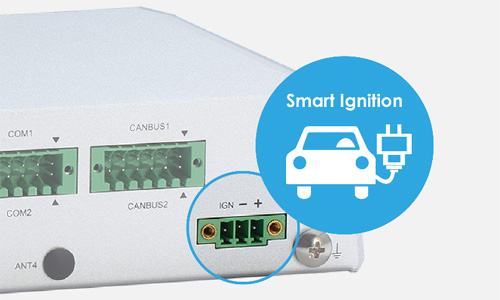

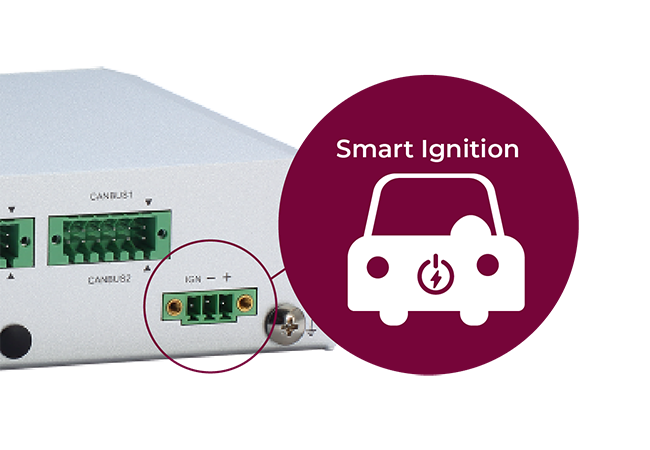

Equipped with smart ignition power control, the tBOX110 enables to schedule power on/off events to protect the vehicle battery from unstable voltage and supports different power modes.
Comprehensive Transportation Gateway Solutions
Axiomtek's tBOX110 offers comprehensive transportation gateway solutions, catering to a wide range of applications, from in-vehicle to railway. This transportation-grade embedded system not only meets ISO 7637-2 standards but also has full certification to EN 45545-2 and EN 50155. By choosing the tBOX110, customers can benefit from significant cost savings and reduced waiting time, since they have no longer needed to bear verification fees or lengthy certification processes. This makes the tBOX110 a highly efficient and reliable choice for transportation-related projects
tBOX110
Compact Size and Low Power
The tBOX110 is designed with low power consumption and heavy-duty construction that can withstand challenging day-to-day operational conditions. The DIN-rail and wall-mountable tBOX110 measures only 164 x 128 x 44 mm and weighs 1.0 kg.
Rugged Design
The tBOX110 has a wide operating temperature range of -40°C to +70°C and 3Grms vibration resistance. It supports 12/24 VDC typical automotive power input with smart ignition, or 24 to 110 VDC for railway use, and a wide-range 9 to 36V DC power input for general purposes. Equipped with smart ignition power control, the tBOX110 enables to schedule power on/off events to protect the vehicle battery from unstable voltage and supports different power modes.
Rich I/O Interfaces

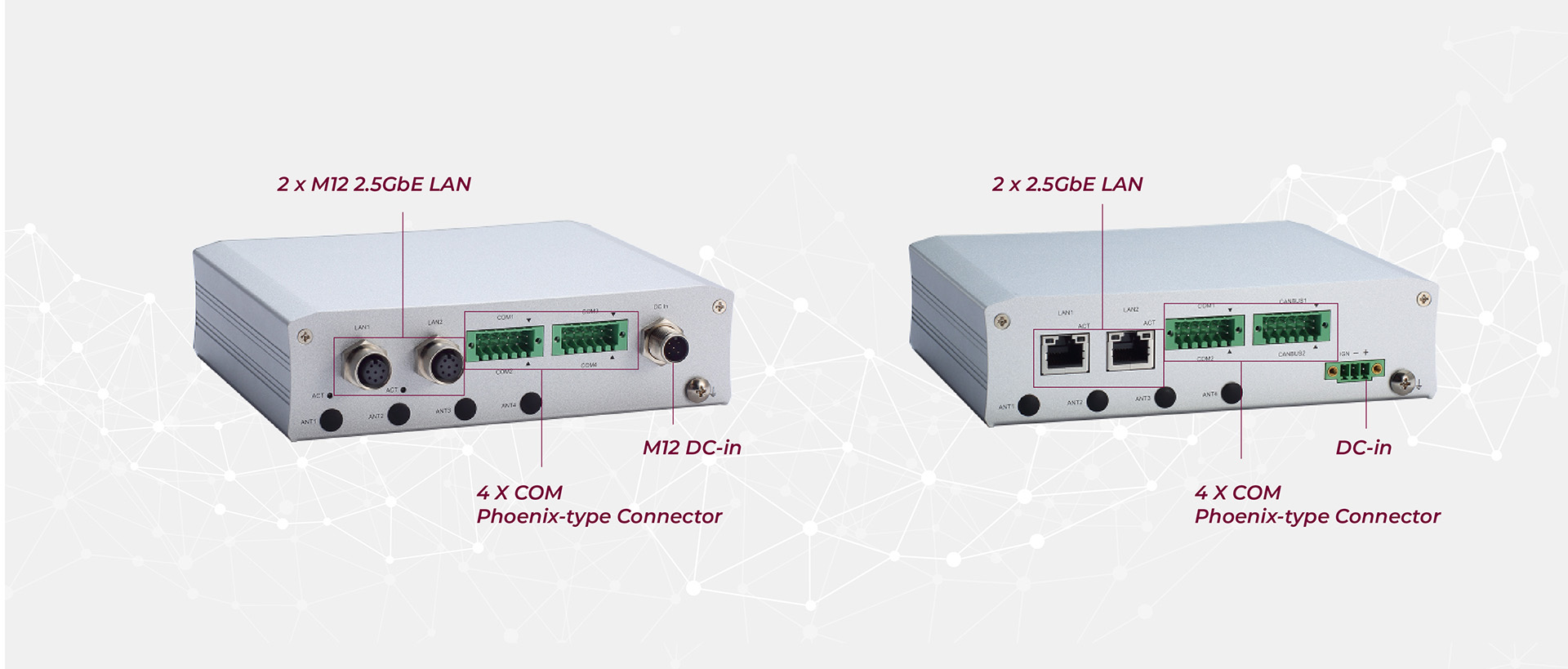

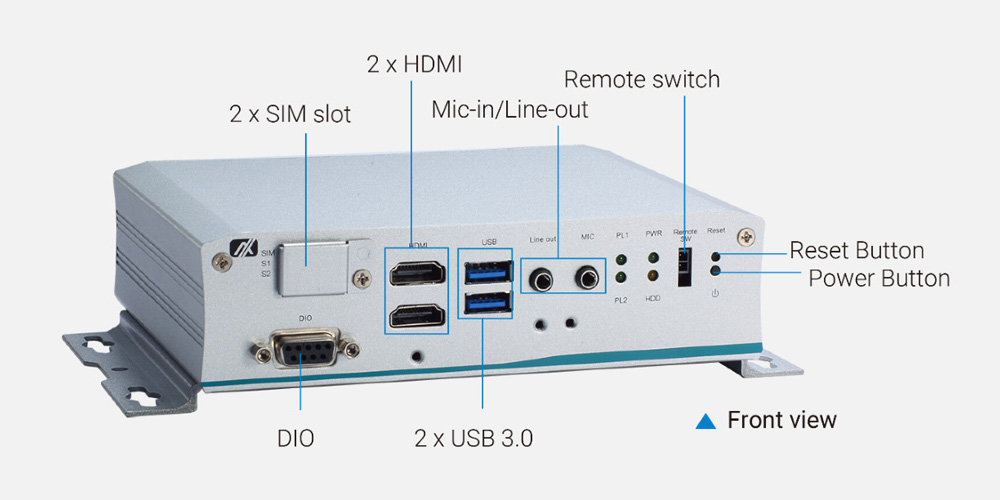

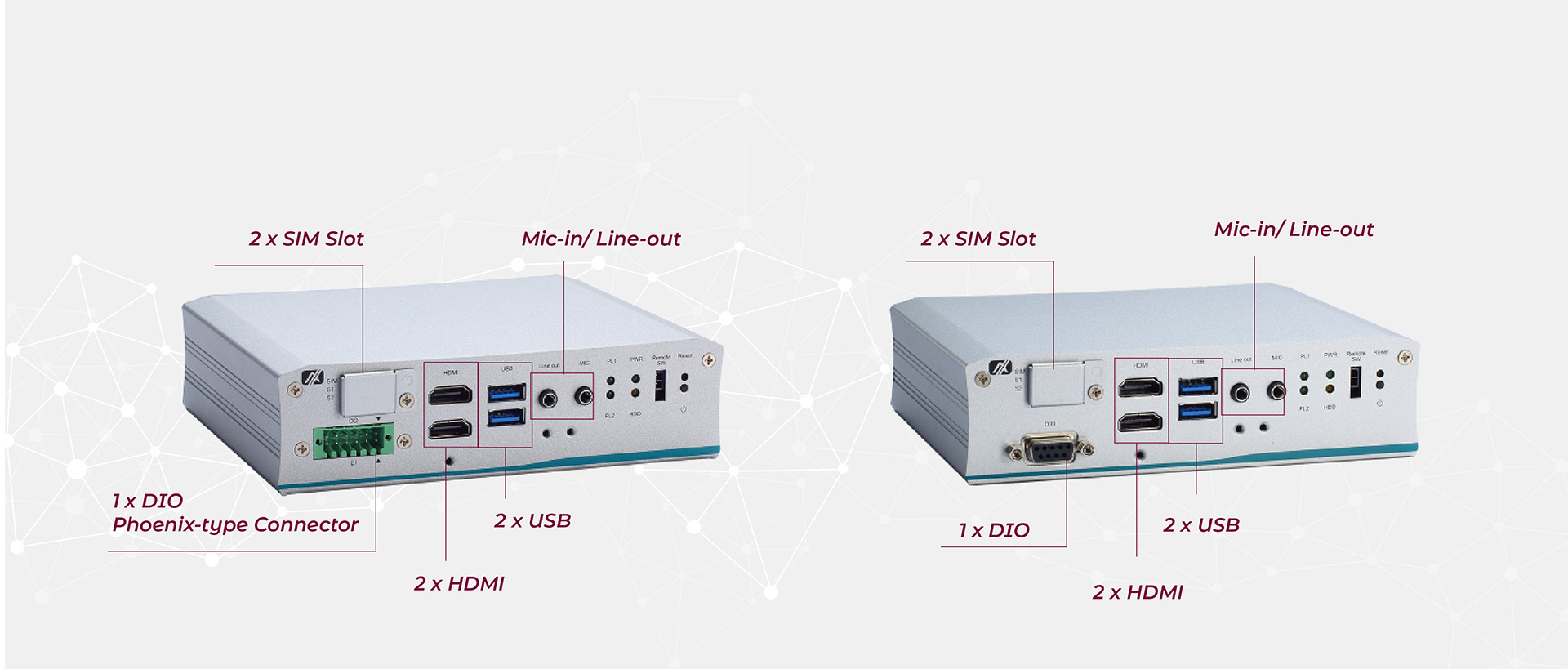

The tBOX110 has two COM, two CANBus, two RS-232/422/485 with shield grounding, two RJ-45 LAN ports, two USB 3.0 ports, two HDMI 1.4b with keylock, one Mic-in, one Line-out, one DB9 8-bit programmable DIO, one power input with smart ignition.

Specifications


CPU
  • Intel Atom® x5-E3940 4C @1.6 GHz, TDP: 9.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1866 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • Vehicle: 2 x RS-232/422/485 (4-wire) with shield grounding
  • Railway: 4 x Isolated RS-232/422/485 (4-wire) with shield grounding
USB
  • 2 x USB 3.0
PoE
  • N/A
Ethernet
  • Vehicle: 2 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT)
  • Railway: 2 x M12 A-coded/X-coded 10/100/1000 Gbps Ethernet (Intel® I210-IT)
Display
  • 2 x HDMI 1.4b (with screw lock)
CANbus
  • Vehicle: 2 x Isolated CANBus 2.0 A/B with
  • SocketCAN supported
Digital I/O
  • 1 x DB9 8-bit programmable DIO
Audio
  • 1 x Mic-in, 1 x Line-out
Storage
  • 1 x Internal 2.5" SATA drive (9.5 mm height)
  • 1 x mSATA (occupied 1 PCI Express Mini Card slot)
Expansion
  • 2 x Full-size Rev.1.2 PCI Express Mini Card slot:
  • 1 x USB/PCIe with external SIM socket (Standard size SIM socket)
  • 1 x mSATA/USB/PCIe with external SIM socket (Standard size SIM socket)
Others
  • 1 x Reset button
  • 1 x Power button
  • 1 x Remote switch
  • 4 x Antenna opening
Power Supply
  • Vehicle: 1 x Terminal block, 9 to 36VDC with Smart Ignition
  • Railway: 1 x M12 Male A-coded, 24 to 110VDC with Smart Ignition
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP20
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • N/A
Dimensions
(W x D x H)
  • 164.1 x 128 x 44.1 mm (6.46" x 5.04” x 1.74”)
Weight (net/gross)
  • 1.02 kg (2.24 lb)/1.44 kg (3.17 lb)
Certifications
  • CE, FCC, LVD, EN 45545-2 and EN 50155 certified ; ISO 7637-2 compliant
EOS Support
  • Windows® 10 64-bit, Ubuntu 20.04
Software Support
  • AXView
Mounting
  • Wall mount, DIN-rail (optional)

Ordering Information

  • tBOX110-APL-TV (P/N-E26N110100)
    Fanless vehicle embedded system with Intel Atom® x5-E3940, 2 RJ-45 GbE LAN, terminal block DC-in, 2 USB 3.0, 2 HDMI, 2 COM, DIO, 2 CAN, audio mic-in/line-out, Smart Ignition, TPM 2.0, and 12/24 VDC
  • tBOX110-APL-MR2 (P/N-E26N110102)
    Fanless railway embedded system with Intel Atom® x5-E3940, 2 M12 A-code GbE LAN, M12 DC-in, 2 USB 3.0, 2 HDMI, 4 COM, DIO, audio mic-in/line-out, TPM 2.0, and 24 to 110VDC
  • tBOX110-APL-MR4 (P/N-E26N110103)
    Fanless embedded system with Intel Atom® x5-E3940, 2 M12 X-code GbE LAN, M12 DC-in, 2 USB 3.0, 2 HDMI, 4 COM, DIO, audio mic-in/ line-out, TPM 2.0, and 24 to 110VDC
  • 886N32410A0E
    MCR8822CE-P Wi-Fi KIT (20) for tBOX (E)
  • 886N11012A0E
    LTE NL668-JP tBOX110 M1R 2020(E)
  • 886N11010A0E
    LTE LE910C4-AP (20) for tBOX110 (E)
  • 509000001500
    PWS FSP120-AAAN3(9NA1206647) FSP 120W for E26N110100 tBOX110-APL-TV
  • 509000002200
    PWS 9NA0908344 FSP 90W for E26N110102/E26N110103 tBOX110-APL-MR2&4
  • 594B8120B30E
    DC IN CABLE M12 FEMALE 5P 180CM W/O ACC (for testing purpose)
  • 594B8152710E
    LAN CABLE M12-XCODE/RJ45PLUG CAT6 180CM
  • 594N3202730E
    LAN CABLE M12-A MALE 8P TO RJ-45
  • 59906000010E
    Power Cord YP-12/YC-12(Japan)
  • 59903000000E
    Power Cord YP-22/YC-12 (Europe)
  • 59904010000E
    Power Cord/UK YP-61A/YC-12 L=1830mm
  • 886N11011A0E
    tBOX110 DIN RAIL KITS (E)
  • 8816N1000A0E
    tBOX Anti-vibration kit(S) (E)

Download

Drivers

Date Description Version Download File
2023/04/11 Win10_64_CANBUS Driver VA1.1
2023/04/11 Win10_64_Intel Ethernet VA1.1
2023/04/11 Win10_64_Intel Chipset VA1.1
2023/04/11 Win10_64_Intel TXE Driver VA1.1
2023/04/11 Win10_64_Intel GPIO VA1.1
2023/04/11 Win10_64_Intel Graphics VA1.1
2023/04/11 Win10_64_Audio Driver VA1.1

Software

Manual

Date Description Version Download File
2024/04/02 tBOX110-APL-MR User's Manual VA5_03-26-2024 VA5
2023/07/18 tBOX110-APL-TV User's Manual VA1_04-19-2022 VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/08/16 EN50155 Certificate
2023/04/17 UKCA Declaration of Conformity
2023/04/17 FCC Verification
2023/04/17 CE-Conformity Declaration
2023/04/17 CE EMC Verification
