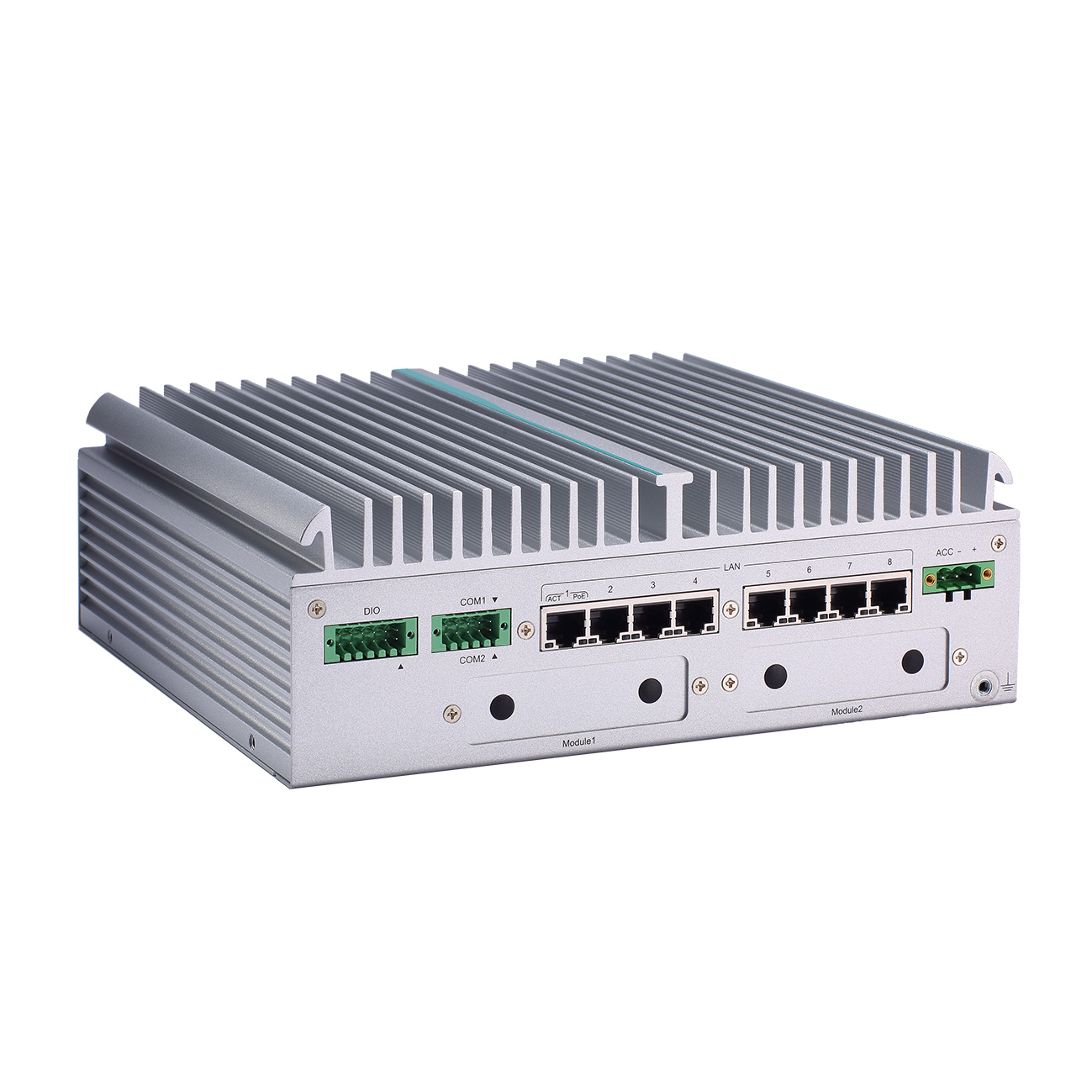

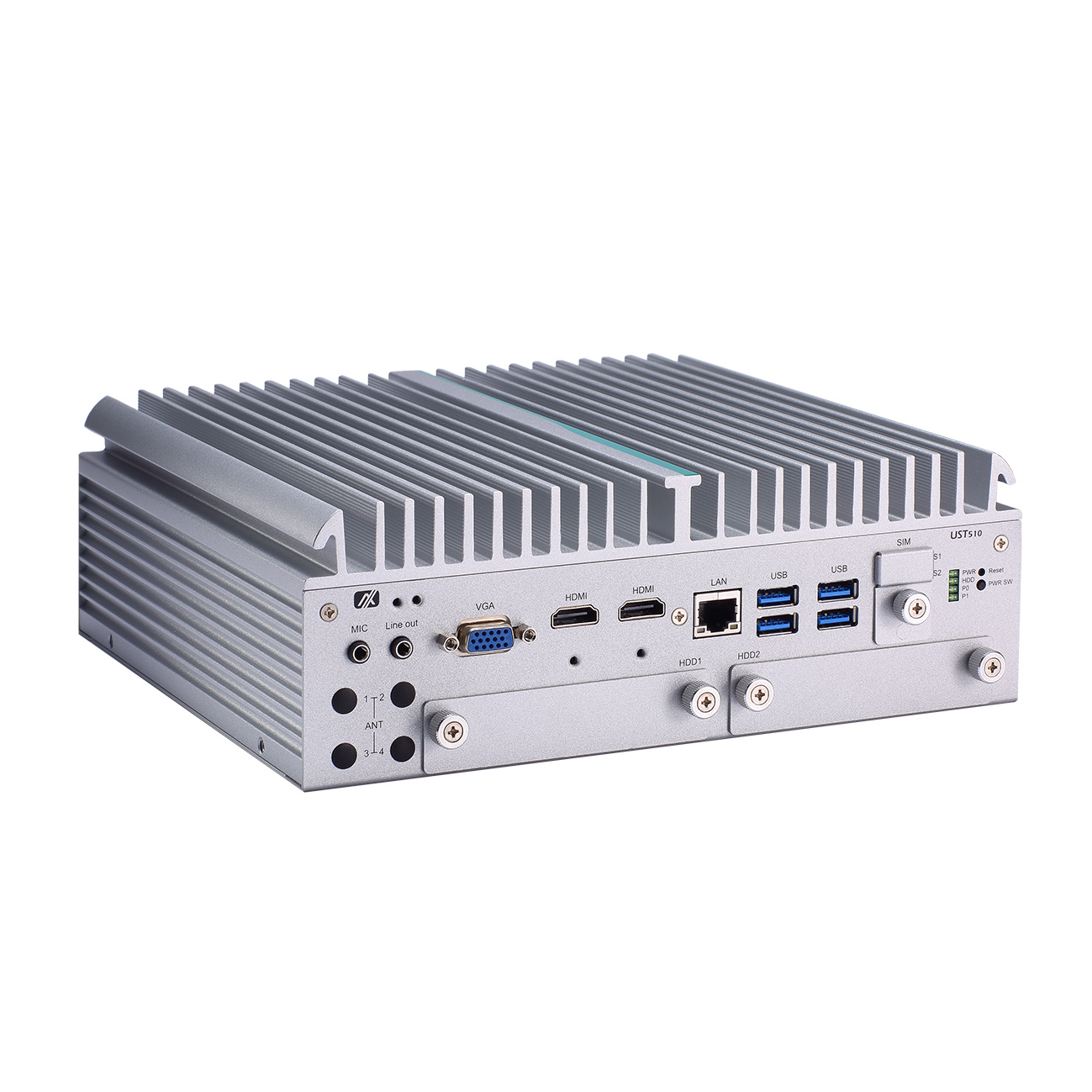

UST510-52B-FL



CPU	LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (CPU TDP max. up to 65W)
Chipset	Intel® C246
System Memory	2 x 260-pin DDR4-2666 ECC/non-ECC SO-DIMM, up to 64GB
BIOS	AMI
COM	1 x Terminal block RS-232/422/485 (4-wire)
USB	4 x USB 3.0
PoE	Up to 8 x RJ-45 & 8 x M12/ 16 x RJ-45 PoE output max. 90W supports PoE & PoE+ PoE (802.3af 15.4W/port) PoE+ (802.3at 30W/port)
Ethernet	Flexible LAN selection: 1 x Non-PoE RJ-45 GbE LAN + 8 x PoE RJ-45 GbE LAN with 2 SATA (Intel® I210-AT) 1 x Non-PoE RJ-45 GbE LAN + 8 x PoE M12 A-code GbE LAN with 4 SATA (Intel® I210-AT) 1 x Non-PoE RJ-45 GbE LAN + 16 x PoE RJ-45 GbE LAN with 4 SATA (Intel® I210-AT)
Display	1 x VGA (supports up to 1920 x 1200 @60Hz) 2 x HDMI (supports up to 4K/2K @30Hz)
CANbus	N/A
Digital I/O	1 x Terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV)
Audio	1 x Mic-in, 1 x Line-out
Storage	2 x 2.5” 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported 4 x 2.5” 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1/5/10 supported 2 x mSATA (occupied 2 x PCI Express Mini Card slot)
Expansion	1 x Full-size Rev.1.2 PCI Express Mini Card slot (1 x mSATA/USB/PCIe) 1 x Half-size Rev.1.2 PCI Express Mini Card slot (1 x mSATA/USB) 1 x M.2 Key B 3050/3042 1 x M.2 Key A & E 2230
Others	TPM 2.0 1 x Reset button 4 x Antenna opening 2 x External accessible SIM card socket 2 x Flexible I/O window
Power Supply	General use: 1 x Terminal block, 9 to 36 VDC (typical 24V) Vehicle: 1 x Terminal block, 9 to 36 VDC with Smart Ignition(typical 24V)
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, supports up to IP40
Operating Temperature	-40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity	10% to 95%, non-condensing
Vibration	3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating) 0.8 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating) 2.5 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating) MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock	N/A
Dimensions (W x D x H)	8RJ 2SATA SKU: 240 x 210.5 x 82.2 mm (9.45" x 8.29" x 3.24”) 8M12 4SATA SKU: 240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1") 16RJ 4SATA SKU: 240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
Weight (net/gross)	8RJ 2SATA SKU: 4.16 kg (9.17 lb)/4.82 kg (10.62 lb) 8M12 4SATA SKU: 4.81 kg (10.604lb)/6.06kg (13.36lb) 16RJ 4SATA SKU: 4.796kg(10.57lb)/6.05kg(13.33lb)
Certifications	CE (Class A), FCC (Class A), E-Mark certified
EOS Support	Windows® 10/11 64-bit, Linux
Software Support	AXView
Mounting	Wall mount
