tBOX324-894-FL

Status : Available

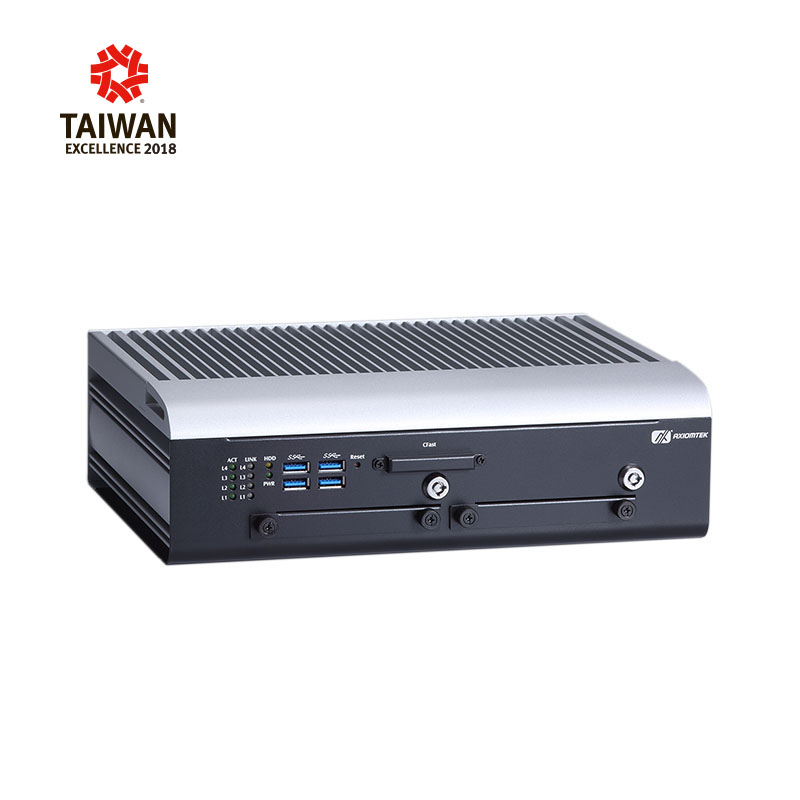

Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 Processor for Railway, Vehicle, and Marine PC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
tBOX324-894-FL
tBOX324-894-FL
PoE

PoE

UL508

UL508

OPS

OPS

RAID

RAID

IEC60945

IEC60945

OPS_plus

OPS_plus

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • CE, LVD, FCC, EN 50155, EN 45545-2, E-Mark, DNV 2.4 and IEC 60945 certified
  • 7th gen Intel® Core™ i7/i5/i3 processor
  • Fanless and wide operating temperatures from -40°C to +70°C
  • 2 DDR4-1866/2133 SO-DIMM for up to 32GB of memory
  • Typical 12/24/110 VDC power supply
  • Intelligent solution for vehicle power management (Smart Ignition)
  • 2 swappable 2.5” SATA drives
  • 3 PCI Express Mini Card slots and 1 SIM card slot

The tBOX324-894-FL is a multi-functional fanless embedded computer certified with EN 50155, E-Mark, DNV 2.4, EN 45545-2, and IEC 60945 for use in a variety of transportation applications. Thanks to the onboard 7th generation Intel® Core™ processors, the tBOX324-894-FL provides powerful computing performance in a compact size within which a modular I/O design has enhanced the operational efficiency and flexibility. The transportation box PC is equipped with two DDR4-1866/2133 SO-DIMM slots supporting up to 32GB of system memory. To suit the need for extensive storage, it is equipped with two swappable 2.5” SATA3 HDDs and one CFast™ slot. The application-ready tBOX324-894-FL is an outstanding embedded box PC for transportation-related applications such as train management, truck fleet management, transportation controller, data transfer, security surveillance, and onboard infotainment controller in the vehicle, railway, and marine markets.

Specifications


CPU
  • Intel® Core™ i7-7600U 2.8 GHz
  • Intel® Core™ i5-7300U 2.6 GHz
  • Intel® Core™ i3-7100U 2.4 GHz
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4-1866/2133 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x DB9 isolated RS-232/422/485
  • 2 x Terminal block isolated RS-232/422/485 (isolation voltage: 2 kV)
USB
  • 4 x USB 3.0
PoE
  • N/A
Ethernet
  • Railway: 4 x M12 A-coded 10/100/1000 Mbps Ethernet (Intel® I210-IT)
  • Marine/Vehicle: 4 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT)
Display
  • 1 x DVI-I (up to 1920 x 1200 @60Hz, 1 x VGA and 1 x DVI-D included)
  • 1 x VGA
CANbus
  • 1 x DB9 isolated CANBus 2.0 A/B (isolation voltage: 2 kV)
Digital I/O
  • 1 x Terminal block isolated DIO 4-in/4-out (isolation voltage: 2 kV)
Audio
  • 1 x Mic-in, 1 x Line-out
Storage
  • 2 x Swappable 2.5" SATA drive (9.5 mm height), Intel® RAID 0/1 supported
  • 1 x CFast™
Expansion
  • 2 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket)
Others
  • 1 x Reset button
  • 1 x Remote switch
  • 3 x Antenna opening
Power Supply
  • Railway: 1 x M12, 24/110 VDC
  • Vehicle: 1 x terminal block, 12/24 VDC with Smart Ignition
  • Marine: 1 x terminal block, 24 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 2 Grms w/ HDD & anti-vibration kit (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
  • EN 50155: EN(IEC) 61373 category 1 class B
  • DNV 2.4/IEC 60945: IEC 60068-2-6
Shock
  • EN 50155: EN (IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
  • DNV 2.4/IEC 60945: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-30
Dimensions
(W x D x H)
  • 288.5 x 211.3 x 85.75 mm (11.36" x 8.32" x 3.38")
Weight (net/gross)
  • 5 kg (11.02 lb)/6.65 kg (14.66 lb)
Certifications
  • CE (Class A), FCC (Class A), EN 50155, EN 45545-2, E-Mark, DNV 2.4 and IEC 60945 certified
EOS Support
  • Windows® 10 64-bit, Linux
Software Support
  • AXView
Mounting
  • Wall mount

Ordering Information

  • tBOX324-894-FL-i5-DIO-24MRDC-CAN (P/N-E26N324102)
    Fanless railway embedded system with Intel® Core™ i5-7300U processor, 4 USB 3.0, DVI-I, 4 M12 GbE LANs, 3 COM, CAN, DIO, Mic-in & Line-out, two 2.5" SATA trays, M12 DC-in, and 24/110 VDC
  • tBOX324-894-FL-i7-DIO-110MRDC-CAN-G (P/N-E26N324121)
    Fanless railway embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, 4 M12 GbE LANs, 3 COM, CAN, DIO, Mic-in & Line-out, two 2.5" SATA trays, M12 DC-in, and 24/110 VDC
  • tBOX324-894-FL-i3-DIO-110MRDC-CAN-G (P/N-E26N324119)
    Fanless railway grade embedded system with Intel® Core™ i3-7100U processor, 4 USB 3.0, DVI-I, 4 M12 GbE LANs, 3 COM, CAN, DIO, Mic-in & Line-out, two 2.5" SATA trays, M12 DC-in, and 24/110 VDC
  • tBOX324-894-FL-i7-DIO-TVDC-CAN-GND (P/N-E26N324112)
    Fanless vehicle embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, 4 RJ-45 GbE LANs, 3 COM, CAN, DIO, Mic-in & Line-out, two 2.5" SATA trays, terminal block DC-in, Smart Ignition, and 12/24 VDC
  • tBOX324-894-FL-i7-DIO-TMDC-CAN-GND (P/N-E26N324117)
    Fanless marine embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, 4 RJ-45 GbE LANs, 3 COM, CAN, DIO, Mic-in & Line-out, two 2.5" SATA trays, terminal block DC-in, and 24 VDC
  • tBOX324-894-FL-i5-DIO-TMDC-CAN-GND (P/N-E26N324115)
    Fanless marine embedded system with Intel® Core™ i5-7300U processor, 4 USB 3.0, DVI-I, 4 RJ-45 GbE LANs, 3 COM, CAN, DIO, Mic-in & Line-out, two 2.5" SATA trays, terminal block DC-in, and 24 VDC
  • tBOX324-894-FL-i3-DIO-TMDC-CAN-GND (P/N-E26N324114)
    Fanless marine embedded system with Intel® Core™ i3-7100U processor, 4 USB 3.0, DVI-I, 4 RJ-45 GbE LANs, 3 COM, CAN, DIO, Mic-in & Line-out, two 2.5" SATA trays, terminal block DC-in, and 24 VDC
  • Anti-vibration Kit (P/N-8816N5008A0E)
    For in-vehicle/rolling stock which improves HDD stability in NVR applications
  • 886N32410A0E
    MCR8822CE-P WiFi KIT(20)for tBOX(E)
  • 881745001A0E
    GPS Kit M8N w/o adapter for tBOX/UST SFP (E)
  • 886N32310A0E
    LTE LE910C4-AP KIT(20)for tBOX(E)
  • 886N32311A0E
    LTE LE910C4-EU KIT(20)for tBOX(E)
  • 886N32312A0E
    LTE LE910C4-NF KIT(20)for tBOX(E)
  • 509000001500
    PWS FSP120-AAAN3(9NA1206647) FSP 120W
  • 509000002200
    PWS 9NA0908344 FSP 90W
  • 594B8120B30E
    DC-in cable M12 female 5P 180cm w/o ACC
  • 594N3202730E
    LAN cable M12-A male 8P to RJ-45
  • 599000001100
    Power cord YP-12/YC-12_CY-U0032 YUNG_LI 1830mm
  • 59906000010E
    Power cord YP-12/YC-12 (Japan)
  • 59903000000E
    Power cord YP-22/YC-12 (Europe)
  • 59905000000E
    Power cord YP-35/YC-12 (Australia)
  • 59904010000E
    Power cord/UK YP-61A/YC-12 L=1830mm
