tBOX810-838-FL

Status : Available

Fanless Embedded System with Intel Atom® Processor E3845/E3827 for Railway, Vehicle, and Marine PC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
tBOX810-838-FL
tBOX810-838-FL
tBOX810-838-FL
PoE

PoE

UL508

UL508

UL1604

UL1604

IP65

IP65

OPS

OPS

OPS_plus

OPS_plus

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • CE, FCC, EN 50155, EN 45545-2, E-Mark, DNV 2.4 and IEC 60945 certified
  • Intel Atom® processor E3845 or E3827
  • Fanless and Wide operating temperatures from -40°C to +70°C
  • DDR3L-1333 4GB memory onboard
  • Compact size with multiple I/Os
  • Intelligent solution for vehicle power management (ACC ignition)
  • 2 PCI Express Mini Card slots and 1 SIM card slot

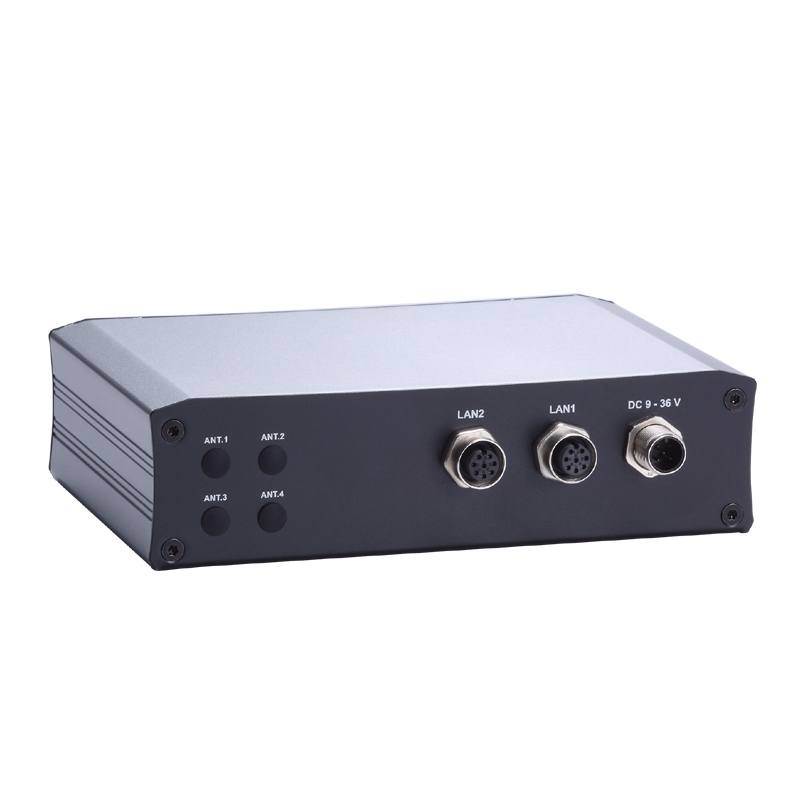

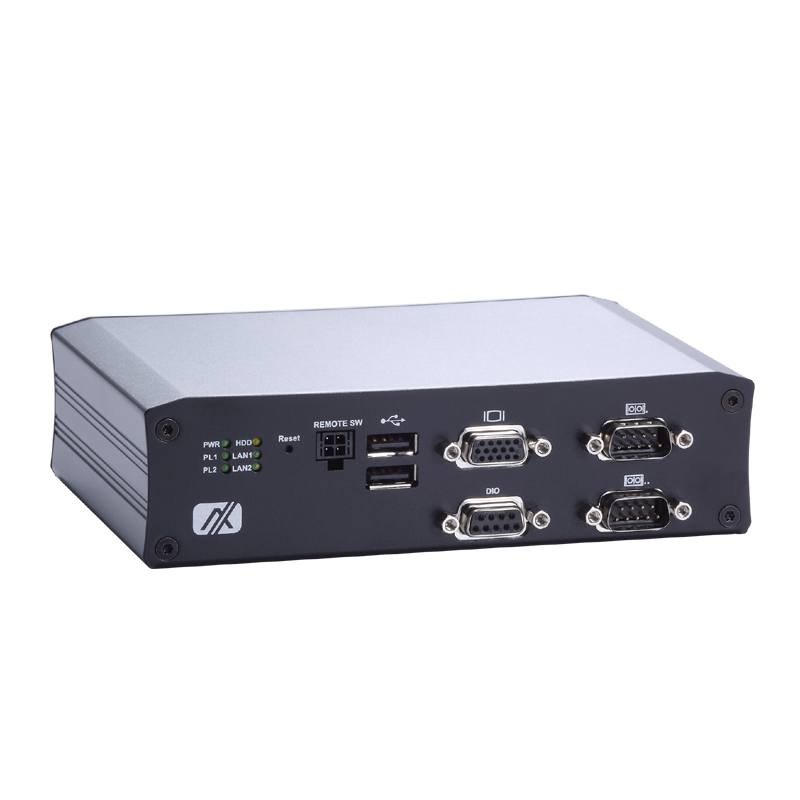

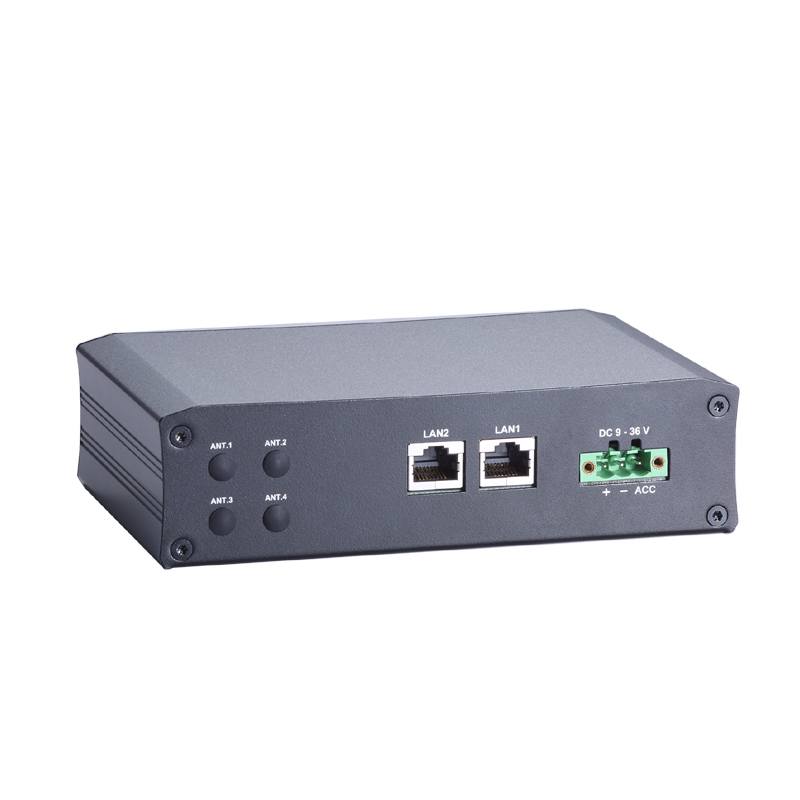

The tBOX810-838-FL fanless box PC is certified with eMark, ISO7637, EN50155, EN50121 and IEC60945 for transportation applications. The tBOX810-838-FL is powered by the Intel® Atom® processors E3845 quad-core 1.91GHz and E3827 dual-core 1.75 GHz with onboard DDR3L memory up to 4GB. Measuring only 164 x 108 x 44 mm and 0.77kg, the mini fanless embedded system supports a wide operating temperature ranging from -40°C to +70°C and 9 ~ 36V wide DC input for wide range of harsh environmental conditions. Additionally, the vehicle/railway/marine box PC has high integration ability with two full-size PCI Express Mini Card slots, one SIM card which makes it a multi-function device for transportation applications. The tBOX 810-838-FL is definitely the top choice for M2M intelligent system for railway, marine, and vehicle solutions.

Specifications


CPU
  • Intel Atom® E3845 4C @1.91 GHz, TDP: 10W
  • Intel Atom® E3827 2C @1.75 GHz, TDP: 8W
Chipset
  • SoC integrated
System Memory
  • 4 GB DDR3L-1333 memory onboard
BIOS
  • AMI
COM
  • 2 x DB9 serial console or RS-232/422/485
USB
  • 2 x USB 2.0
PoE
  • N/A
Ethernet
  • Railway: 2 x M12 A-coded 10/100/1000 Mbps Ethernet (Intel® i210-IT)
  • Marine/Vehicle: 2 x RJ-45 10/100/1000 Mbps Ethernet (Intel® i210-IT)
Display
  • 1 x VGA (supports up to 1920 x 1080 @60Hz)
CANbus
  • N/A
Digital I/O
  • 1 x DB9 8-bit programmable DIO
Audio
  • 1 x Mic-in, 1 x Line-out, 1 x Line-in (optional, occupied 1 x PCIe Mini Card slot)
Storage
  • 1 x Internal 2.5" SATA drive (9.5 mm height)
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe)
Others
  • 1 x Reset button
  • 1 x Remote switch
  • 4 x Antenna opening
Power Supply
  • Railway: 1 x M12 DC-in, 9 to 36 VDC (typical: 24VDC)
  • Vehicle: 1 x terminal block DC-in, (typical: 12/24 VDC) with ACC ignition
  • Marine: 1 x terminal block /M12 DC-in, 9 to 36 VDC (typical: 24 VDC)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
  • EN 50155 EN (IEC) 61373 category 1 class B
  • DNV 2.4/IEC 60945 IEC 60068-2-6
Shock
  • EN 50155 EN: (IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
  • DNV 2.4: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-30
Dimensions
(W x D x H)
  • 164.1 x 108 x 44 mm (6.46" x 4.25” x 1.73”)
Weight (net/gross)
  • 0.77 kg (1.70 lb)/2 kg (4.41 lb)
Certifications
  • CE (Class A), FCC (Class A), EN 50155, EN 45545-2**, E-Mark, DNV 2.4 and IEC 60945 certified
EOS Support
  • Windows® 10 64-bit, Windows® 8, Windows® 7 64/32-bit, VxWorks7, Ubuntu 15.10
Software Support
  • AXView
Mounting
  • DIN rail
  • Wall mount

Ordering Information

  • tBOX810-838-FL-E3845-MRDC (P/N-E26N810106)
    Fanless railway grade embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 M12 GbE LANs, M12 DC-in, 2 USB, VGA, 2 COM, DIO, and 24 VDC
  • tBOX810-838-FL-E3827-MRDC (P/N-E26N810107)
    Fanless railway grade embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 M12 GbE LANs, M12 DC-in, 2 USB, VGA, 2 COM, DIO, and 24 VDC
  • tBOX810-838-FL-E3845-MRDC (P/N- E26N810109)
    Fanless railway grade embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 M12 GbE LANs, M12 DC-in, 2 USB, VGA, 2 COM, DIO, audio mic-in/line-in/line-out, and 24 VDC
  • tBOX810-838-FL-E3845-TVDC (P/N-E26N810104)
    Fanless vehicle grade embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 RJ-452 GbE LANs, terminal block DC-in, 2 USB, VGA, 2 COM, DIO, ACC ignition, and 12/24 VDC
  • tBOX810-838-FL-E3827-TVDC (P/N-E26N810105)
    Fanless vehicle grade embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 RJ-45 GbE LANs, terminal block DC-in, 2 USB, VGA, 2 COM, DIO, ACC ignition, and 12/24 VDC
  • tBOX810-838-FL-E3845-TVDC (P/N-E26N810110)
    Fanless vehicle grade embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 RJ-45 GbE LANs, terminal block DC-in, 2 USB, VGA, 2 COM, DIO, audio mic-in/line-in/line-out, ACC ignition, and 12/24 VDC
  • tBOX810-838-FL-E3827-TVDC (P/N-E26N810122)
    Fanless vehicle grade embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 RJ-45 GbE LANs, terminal block DC-in, 2 USB, VGA, 2 COM, DIO, CAN, ACC ignition, and 12/24 VDC
  • tBOX810-838-FL-E3845-MVDC (P/N-E26N810100)
    Fanless vehicle grade embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 M12 GbE LANs, M12 DC-in, 2 USB, VGA, 2 COM, DIO, ACC ignition, and 12/24 VDC
  • tBOX810-838-FL-E3827-MVDC (P/N-E26N810102)
    Fanless vehicle grade embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 M12 GbE LANs, M12 DC-in, 2 USB, VGA, 2 COM, DIO, ACC ignition, and 12/24 VDC
  • tBOX810-838-FL-E3845-TMDC (P/N-E26N810114)
    Fanless marine grade embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 RJ-45 GbE LANs, terminal block DC-in, 2 USB, VGA, 2 COM, DIO, and 24 VDC
  • tBOX810-838-FL-E3827-TMDC (P/N-E26N810119)
    Fanless marine grade embedded system with Intel® Atom® processor E3827, 4GB DRAM, 2 RJ-45 GbE LANs, terminal block DC-in, 2 USB, VGA, 2 COM, DIO, CAN, and 24 VDC
  • tBOX810-838-FL-E3845-TMDC (P/N-E26N810120)
    Fanless marine grade embedded system with Intel® Atom® processor E3845, 4GB DRAM, 2 RJ-45 GbE LANs, terminal block DC-in, 2 USB, VGA, 2 COM, DIO, CAN, and 24 VDC
  • Anti-vibration Kit (P/N-8816N1000A0E)
    For in-vehicle/rolling stock applicable systems which improve HDD/SSD stability
  • 8816N3239A0E
    3G UC20GKit for tBOX/UST (3G ANT) (E)
  • 8816N3235A0E
    3G/GPS UC20GKit for tBOX (3G/GPS ANT)
  • 8812C300CA0E
    AP12356WT Wi-Fi kit for ICO300 SFP (E)
  • 886N32410A0E
    MCR8822CE-P WiFi KIT(20)for tBOX(E)
  • 8816N8105A0E
    GPS kit M8N w/o adapter for tBOX SFP (E)
  • 886N32310A0E
    LTE LE910C4-AP KIT(20)for tBOX(E)
  • 886N32311A0E
    LTE LE910C4-EU KIT(20)for tBOX(E)
  • 886N32312A0E
    LTE LE910C4-NF KIT(20)for tBOX(E)
  • 509000001500
    PWS FSP120-AAAN3(9NA1206647) FSP 120W
  • 50966224010E
    Adapter 24V 90W, M12 A-code 5P FSP090AAAN3

Download

Drivers

Date Description Version Download File
2017/07/11 Windows 10 driver VA1.2
2017/07/11 Windows 8 driver VA1.2
2017/07/11 Windows 7 driver VA1.2

Software

Date Description Version Download File
2016/08/30 Wind River VxWorks 7 BSP V1.0.0

Manual

Date Description Version Download File
2021/03/24 User Manual VA4

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/11/30 DNV GL Certificate
2020/12/24 FCC Verification
2020/07/16 CE-Conformity Declaration
2020/07/16 CE EMC Verification
2018/12/18 EN50155 Certificate
2017/06/28 E-Mark Certificate
2017/06/28 EN50155 Railway Certificate
