tBOX500-510-FL

Status : Available

Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor for Railway, Vehicle and Marine PC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
PoE

PoE

UL508

UL508

UL1604

UL1604

OPS

OPS

IEC60945

IEC60945

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • CE, LVD, FCC, EN 50155, EN 45545-2, and IEC 60945 certified; ISO 7637-2 compliant
  • 7th gen Intel® Core™ i7/i5/i3 or Celeron® processor
  • Power supply:
    24 to 110 VDC for Railway version
    12/24 VDC for Vehicle version
    24 VDC for Marine version
  • PoE PSU (optional), up to 120W power supply
  • Value-added modules available for various I/O requirements
  • (COM/LAN/DIO/PoE/CAN/BNC)
  • Intelligent solution for vehicle power management (Smart Ignition)
  • 2 swappable 2.5" SATA drives

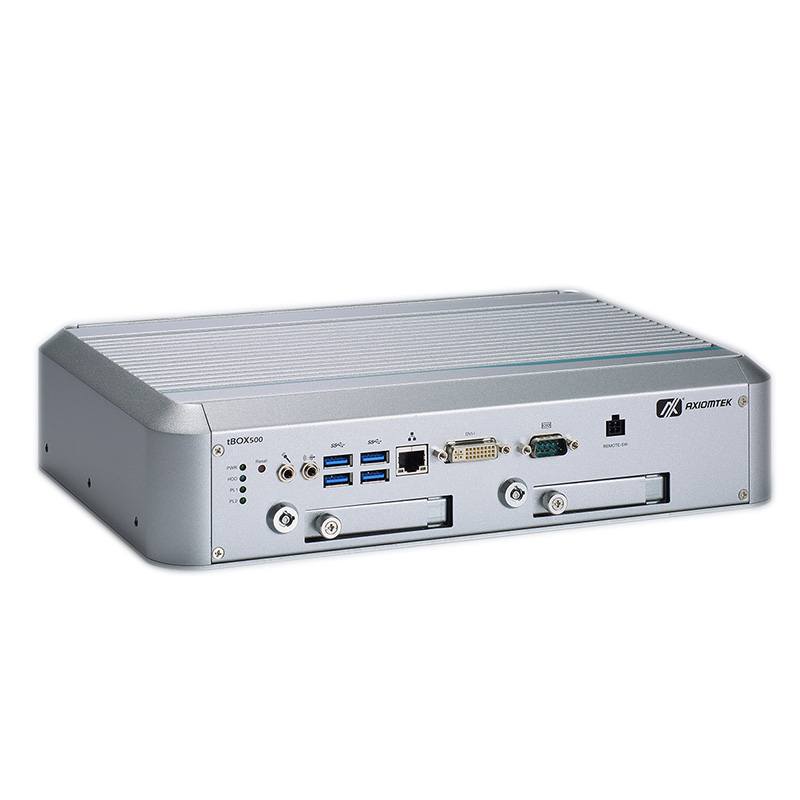

The tBOX500-510-FL comes with the onboard 7th generation Intel® Core™ or Intel® Celeron® processor 3965U along with onboard two DDR4-1866/2133 SO-DIMM slots supporting up to 32GB system memory. It offers two I/O module slots and a wide selection of value-added modules (VAM) to meet different user requirements and customizations. The rugged tBOX500-510-FL is certified with E-Mark, ISO 7637-2, EN 50155, EN 50121, DNV 2.4, EN 45545-2 and IEC 60945. It supports a wide temperature range from -40°C to +70°C and anti-vibration of up to 3 Grms. The fanless embedded box PC equipped with intelligent power management offers ACC on/off delay, shutdown delay and over/under voltage protection. It supports a wide voltage input range: 12/24 VDC for vehicle applications, 24 to 110 VDC for railway applications, and 24V DC for marine applications. For system integrators with extensive storage needs, the box computer offers two swappable 2.5” SATA HDDs and one mSATA. The new transportation embedded system is well suited for transportation-related applications such as security surveillance, onboard devices controller, truck fleet management, data transfer, and onboard passenger infotainment system.

Specifications


CPU
  • Intel® Core™ i7-7600U 2C@2.8 GHz, TDP: 15W
  • Intel® Core™ i5-7300U 2C@2.6 GHz, TDP: 15W
  • Intel® Core™ i3-7100U 2C@2.4 GHz, TDP: 15W
  • Intel® Celeron® 3965U 2C@2.2 GHz, TDP: 15W
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4-1866/2133 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x DB9 serial console or RS-232/422/485
USB
  • 4 x USB 3.0
PoE
  • Up to 8 x configurable M12/RJ-45 PoE output max. 120W supports PoE & PoE+ (available from I/O module)
  • PoE (802.3af 15.4W/port)
  • PoE+ (802.3at 30W/port)
Ethernet
  • 1 x RJ-45 10/100/1000 Mbps Ethernet (Intel® i210-IT)
Display
  • 1 x DVI-I (up to 1920 x1200 @60Hz, 1 x VGA & 1 x DVI included)
CANbus
  • Available from I/O module (optional)
Digital I/O
  • Available from I/O module (optional)
Audio
  • 1 x Mic-in
  • 1 x Line-out
Storage
  • 2 x swappable 2.5" SATA drive (9.5 mm height), Intel® RAID 0/1 supported
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/PCIe)
  • 2 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket)
  • 2 x Value-added module slot
Others
  • 1 x Terminal block PoE power-in with PSU120-259
  • 1 x Reset button
  • 1 x Remote switch
  • TPM 2.0 (optional)
  • 4 x Antenna opening
Power Supply
  • Railway: 1 x M12, 24 to 110 VDC
  • Vehicle: 1 x Terminal block, 12/24 VDC with Smart Ignition
  • Marine: 1 x Terminal block, 24 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
  • -40°C to +60°C (-40°F to +140°F) with external PoE PSU & W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 1.5 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • EN(IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
Dimensions
(W x D x H)
  • 321 x 210.2 x 73.3 mm (12.64" x 8.28" x 2.89") (without wall mount)
Weight (net/gross)
  • 3.5 kg (7.72 lb)/5.1 kg (11.24 lb)
Certifications
  • CE (Class A), LVD, FCC (Class A), EN 50155, EN 45545-2, IEC 60945 certified
  • ISO 7637-2 compliant
EOS Support
  • Windows® 10 64-bit, Linux
Software Support
  • AXView
Mounting
  • Wall mount

Ordering Information

  • tBOX500-510-FL-i7-24-110MRDC (P/N-E26N500100)
    Fanless railway embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code 5P DC-in, and 24 to 110 VDC
  • tBOX500-510-FL-i5-24-110MRDC (P/N-E26N500101)
    Fanless railway embedded system with Intel® Core™ i5-7300U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code 5P DC-in, and 24 to 110 VDC
  • tBOX500-510-FL-i3-24-110MRDC (P/N-E26N500102)
    Fanless railway embedded system with Intel® Core™ i3-7100U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code 5P DC-in, and 24 to 110 VDC
  • tBOX500-510-FL-Celeron-24-110MRDC (P/N-E26N500103)
    Fanless railway embedded system with Intel® Celeron® 3965U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code 5P DC-in, and 24 to 110 VDC
  • tBOX500-510-FL-i7-TVDC (P/N-E26N500104)
    Fanless vehicle embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, 9 to 36 VDC, TB 3P DC-in, and Smart Ignition
  • tBOX500-510-FL-i5-TVDC (P/N-E26N500105)
    Fanless vehicle embedded system with Intel® Core™ i5-7300U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, 9 to 36 VDC, TB 3P DC-in, and Smart Ignition
  • tBOX500-510-FL-i3-TVDC (P/N-E26N500106)
    Fanless vehicle embedded system with Intel® Core™ i3-7100U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, 9 to 36 VDC, TB 3P DC-in, and Smart Ignition
  • tBOX500-510-FL-Celeron-TVDC (P/N-E26N500107)
    Fanless vehicle embedded system with Intel® Celeron® 3965U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, 9 to 36 VDC, TB 3P DC-in, and Smart Ignition
  • tBOX500-510-FL-i7-TMDC (P/N-E26N500108)
    Fanless marine embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, TB 3P DC-in, and 14 to 32 VDC
  • tBOX500-510-FL-i5-TMDC (P/N-E26N500109)
    Fanless marine embedded system with Intel® Core™ i5-7300U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, TB 3P DC-in, and 14 to 32 VDC
  • tBOX500-510-FL-i3-TMDC (P/N-E26N500110)
    Fanless marine embedded system with Intel® Core™ i3-7100U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, TB 3P DC-in, and 14 to 32 VDC
  • tBOX500-510-FL-Celeron-TMDC (P/N-E26N500111)
    Fanless marine embedded system with Intel® Celeron® 3965U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, TB 3P DC-in, and 14 to 32 VDC
  • tBOX500-510-FL-i5-POE-24-110MRDC (P/N-E26N500115)
    Fanless railway embedded system, Intel® i5-7300U processor, 4 USB 3.0, DVI-I, LAN, serial console or RS-232/422/485, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code DC-in, 24 to 110 VDC and Internal PoE PSU
  • VAM100 (P/N-E277100100)
    4 x Terminal block 4-wire isolated RS-232/422/485; Isolation voltage
  • VAM101 (P/N-E277101100)

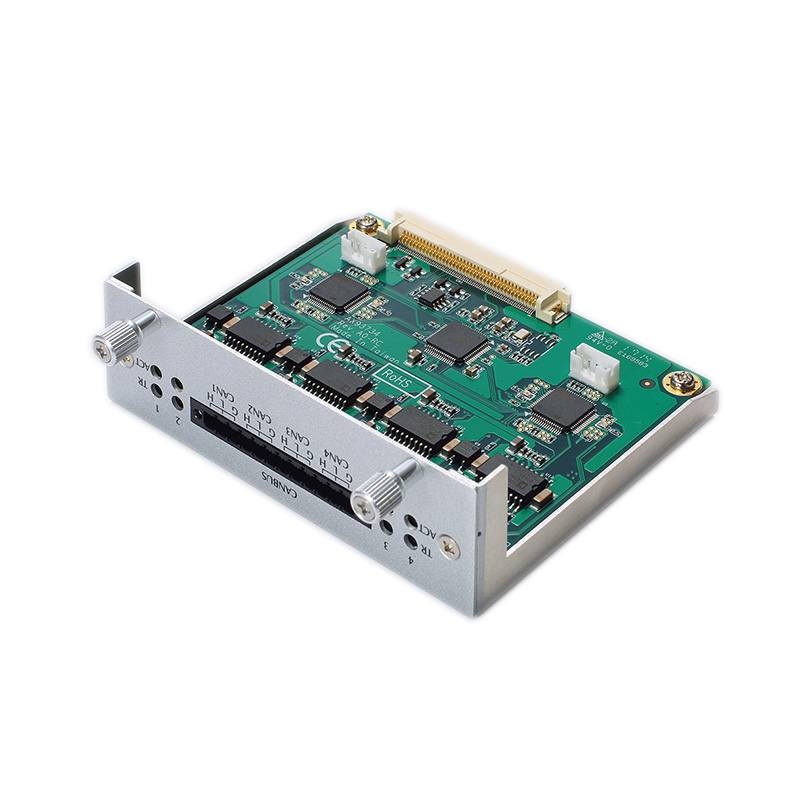

    4 x Terminal block isolated CANBus 2.0A/B; Isolation voltage
  • VAM200 (P/N-E277200100)

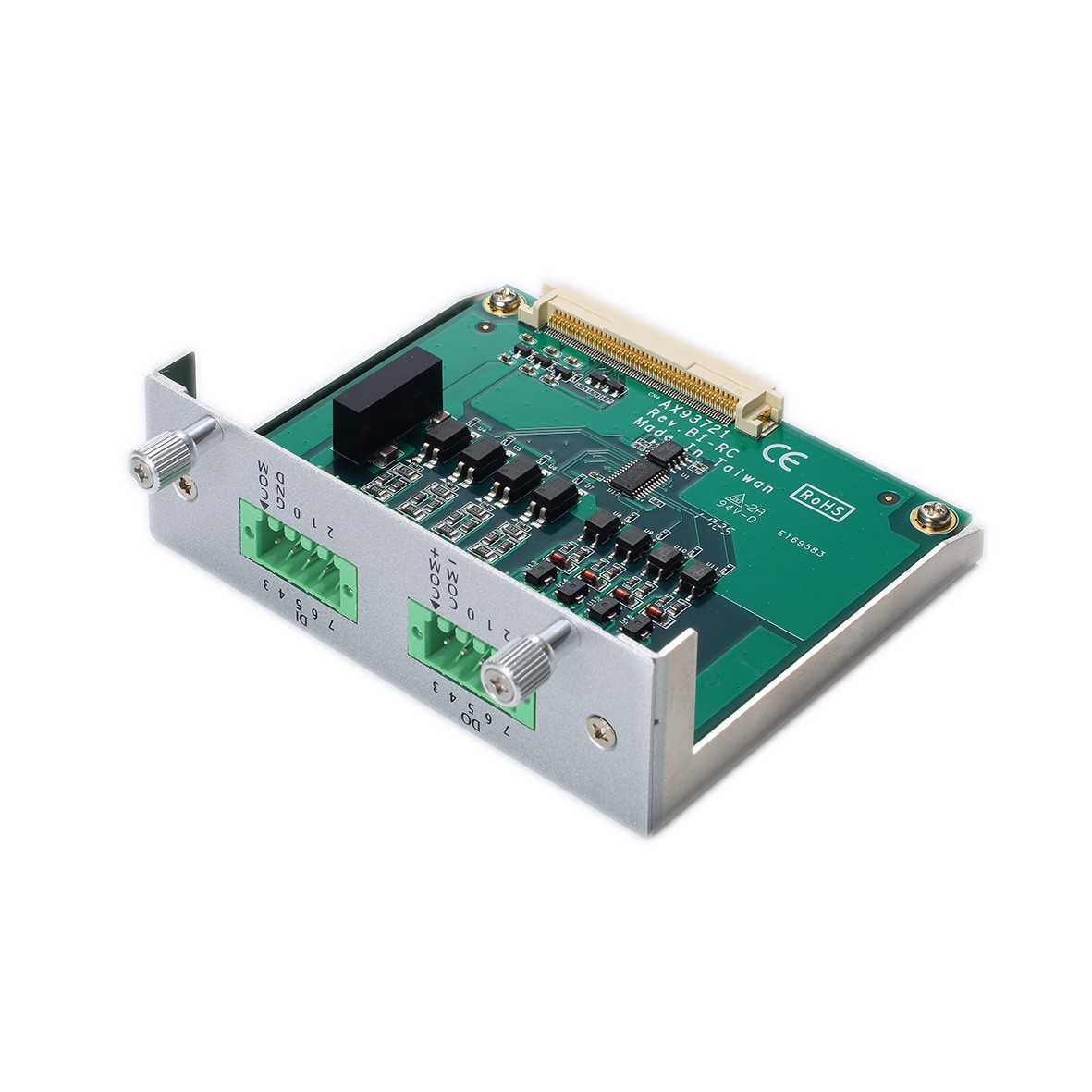

    1 x Terminal block isolated DIO 8-in/8-out; Isolation voltage
  • VAM400 (P/N-E277400100)

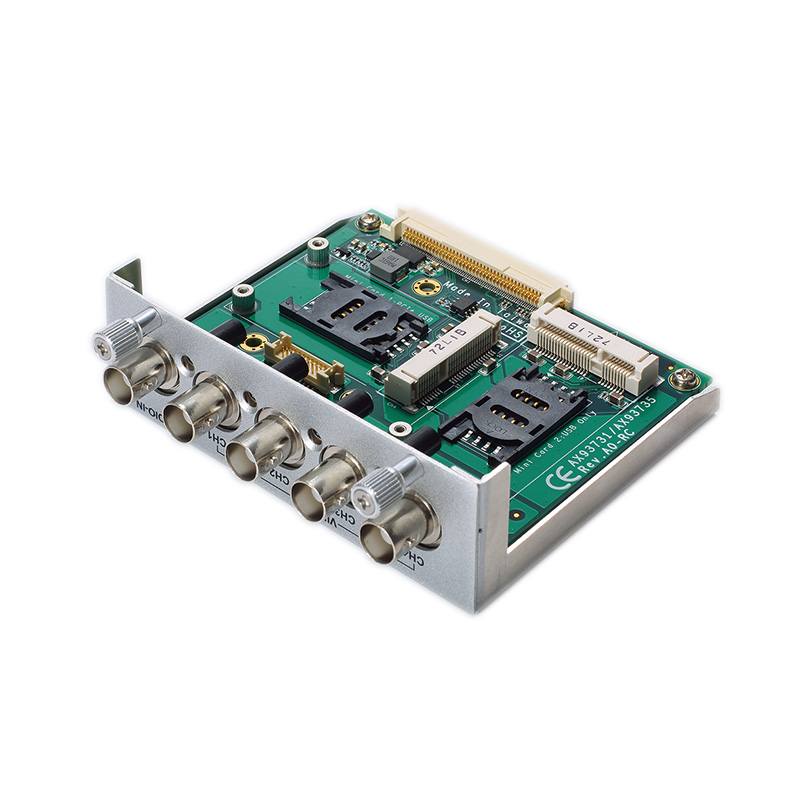

    4 x BNC video-in & 1 x BNC audio-in
    2 x Full size Rev. 1.2 PCI Express Mini Card slot (1 x USB with SIM socket & 1 x USB/PCIe with SIM socket) (Occupied by 1 x Capture Card)
  • VAM600 (P/N- E277600100)
    2 x Full size Rev. 1.2 PCI Express Mini card slot (1 x USB/PCIe with SIM socket & 1 x USB with SIM socket)
    4 x Antenna opening
  • VAM700 (P/N-E277700100)

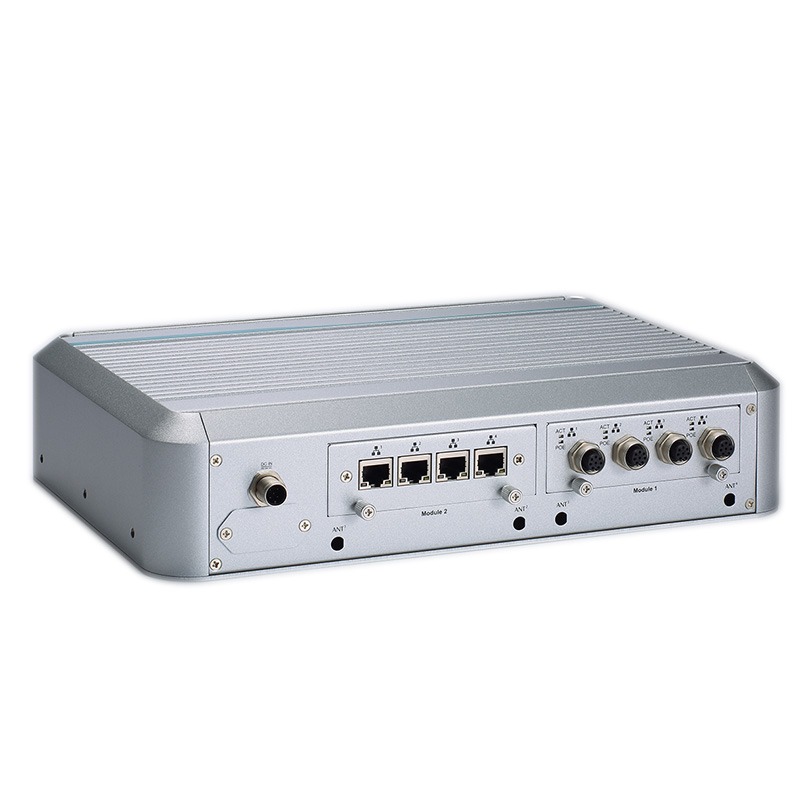

    4 x M12 A-code GbE
  • VAM701 (PoE) (P/N- E277701100)

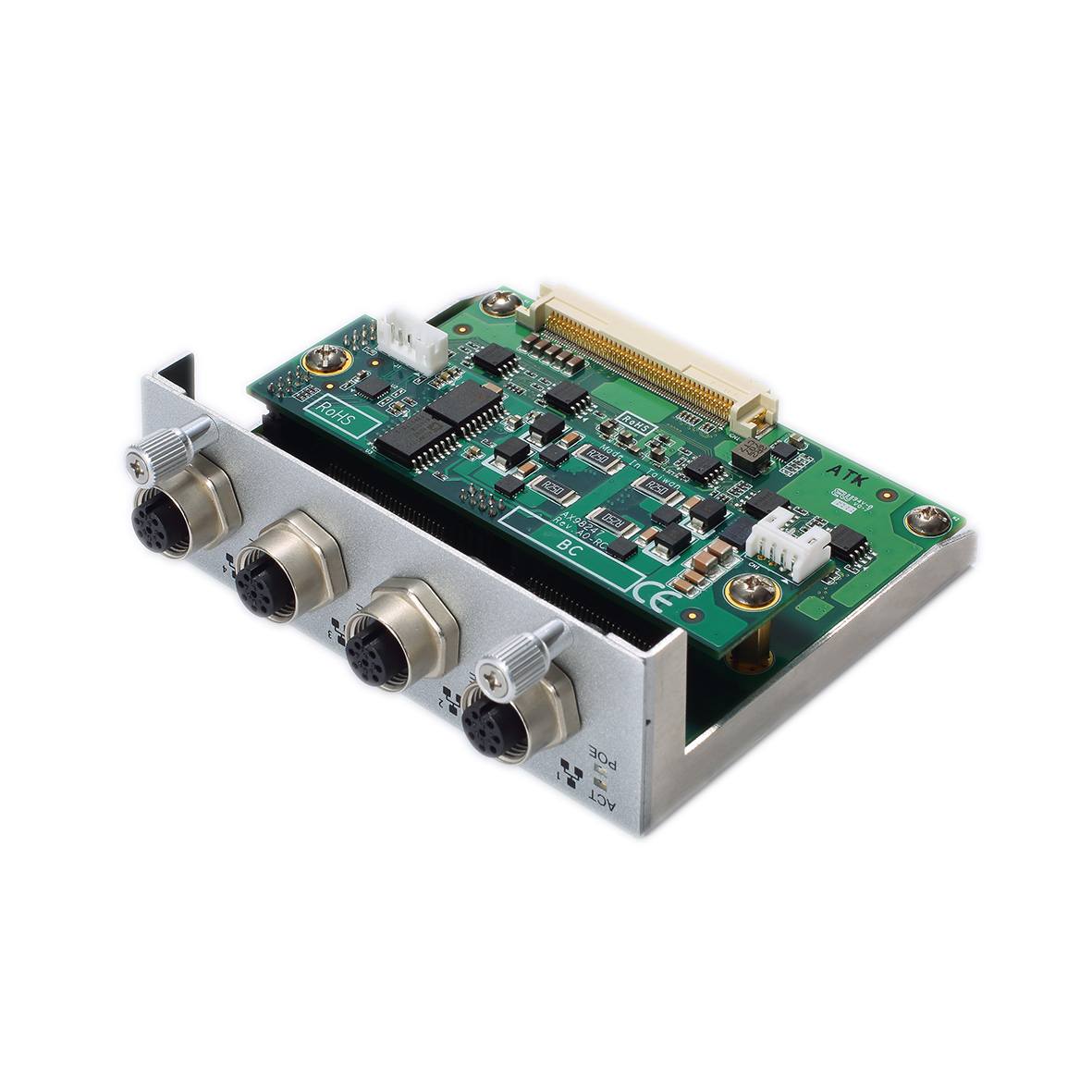

    4 x M12 A-code Gigabit PoE
  • VAM702 (P/N-E277702100)

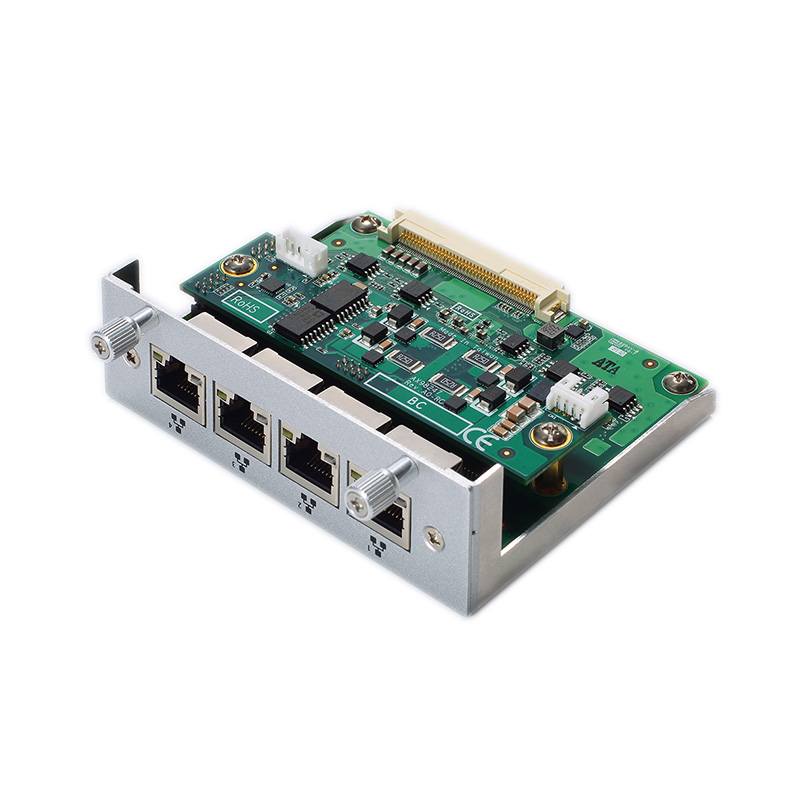

    4 x RJ45 GbE
  • VAM703 (PoE) (P/N-E277703100)
    4 x RJ45 Gigabit PoE
  • VAM704 (P/N-E277704100)
    4 x M12 D-code 10/100 Mbps Ethernet
  • VAM705 (PoE) (P/N- E277705100)
    4 x M12 D-code 10/100 Mbps PoE
  • VAM706 (P/N-E277706100)
    4 x M12 X-code GbE
  • VAM707 (PoE) (P/N-E277707100)
    4 x M12 X-code PoE
  • VAM900 (P/N-E277900100)
    2 x Full-size Rev.1.2 PCI Express Mini Card slot (2 x USB with SIM socket)
    1 x Half-size Rev.1.2 PCI Express Mini Card slot ( PCIe)
    1 x Terminal block 4-wire isolated RS-232/422/485 COM (isolation Voltage
  • PSU120-259 series
    Fanless IEC 60945 certified/EN 50155 compliant DC-DC adapter
    Railway-24VDC (P/N-E276120101)
    Railway-48VDC (P/N-E276120102)
    Railway-96/110VDC (P/N-E276120103)
    Marine-24VDC (P/N-E276120104)
  • Anti-vibration Kit (P/N-8816N5008A0E)
    For in-vehicle/rolling stock which improves HDD stability in NVR applications
  • 8816N3239A0E
    3G UC20GKit for tBOX/UST (3G ANT) (E)
  • 8816N3235A0E
    3G/GPS UC20GKit tBOX/UST (3G/GPS ANT) (E)
  • 886N50014A0E
    MCR8822CE-P WiFi KIT(30)for tBOX(E)
  • 886N50016A0E
    LTE NL668-EAU KIT(30)for tBOX(E)
  • 886N50015A0E
    LTE NL668-EAU w/GPS(30) for tBOX(E)
  • 509000001500
    PWS FSP120-AAAN3(9NA1206647) FSP 120W
  • 509000002200
    PWS 9NA0908344 FSP 90W

Download

Drivers

Date Description Version Download File
2024/03/20 06.VAM module driver VA1.2
2019/09/02 02.graphics VA1.1
2019/09/02 05.Reltek _Audio_X64_R279 VA1.1
2019/09/02 01.chipset VA1.1
2019/09/02 04.Intel(R)_ME VA1.1
2019/09/02 03_Intel Ethernet Driver VA1.1

Software

Manual

Date Description Version Download File
2024/01/04 tBOX500-510-FL User's Manual VA4_12-28-2023.pdf VA4

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/09/27 FCC Verification
2022/09/27 UKCA Declaration of Conformity
2022/09/27 CE-Conformity Declaration
2022/09/27 CE LVD Verification
2019/05/03 IEC60945 Certificate
2019/01/11 CE LVD Verification
2018/11/23 EN50155 Certificate
