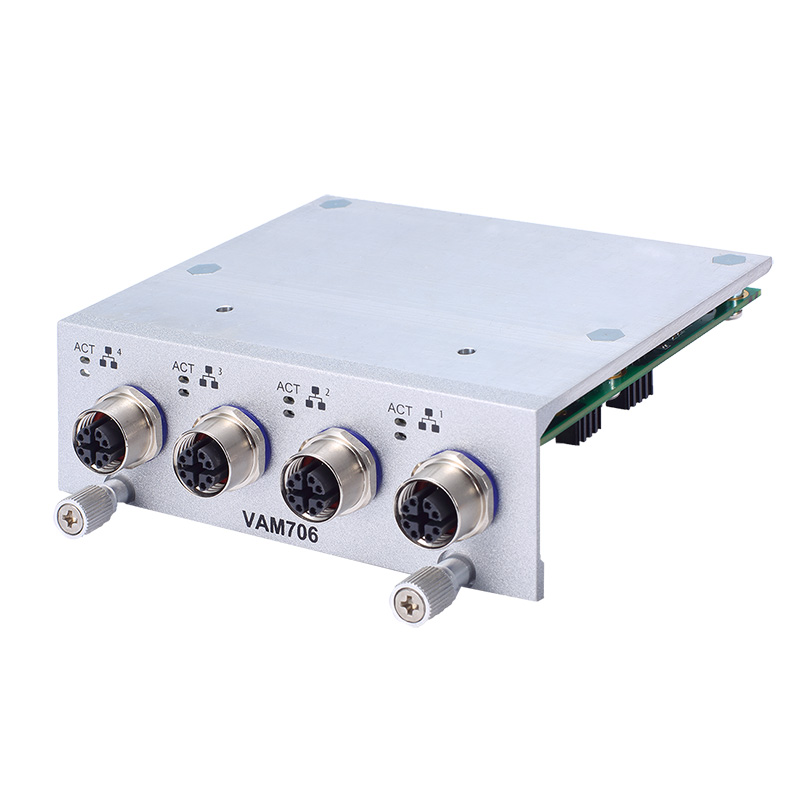

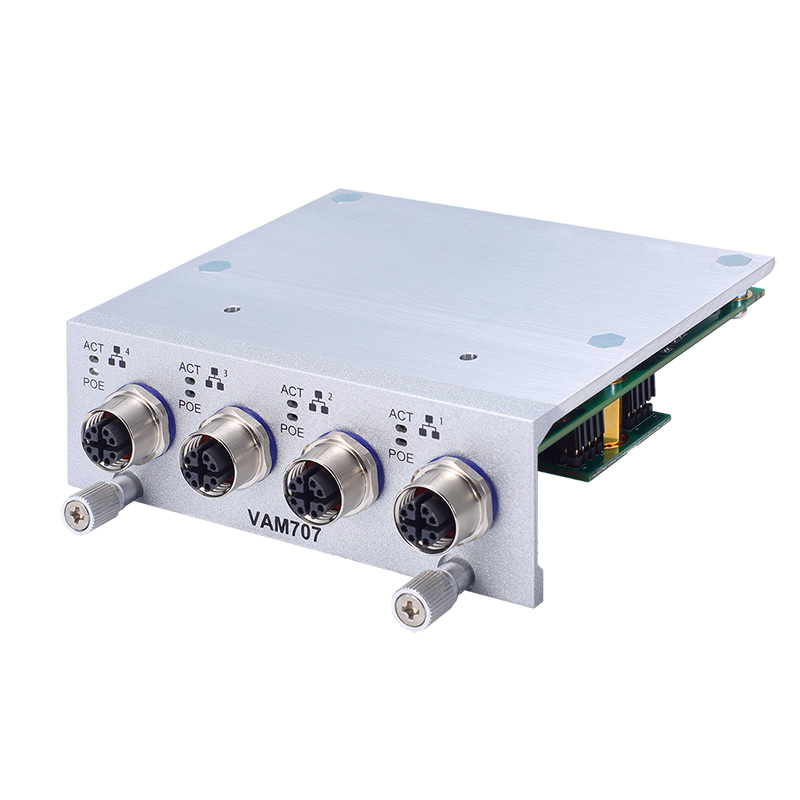

VAM706/VAM707

Status : Available

Value-added Module with 4 M12 X-coded GbE LAN and PoE

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
VAM706/VAM707
VAM706/VAM707
OPS

OPS

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 4 M12 X-coded GbE LAN or PoE/PoE+
  • Swappable modular design
  • Maximize I/O flexibility
  • Designed for tBOX300/500 series
  • CE, LVD, FCC and EN 50155 compliant

Specifications


I/O
  • 4 x M12 X-coded GbE LAN
  • 4 x M12 X-coded PoE (802.3af 15.4W/port) or PoE+ (802.3at 30W/port)
Expansion
  • N/A
Isolation Voltage
  • N/A
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with tBOX500 series & wide operating temperature peripheral
  • -25°C to +70°C (-13°F to +158°F) with tBOX300 series & wide operating temperature peripheral
Certifications
  • CE, LVD, FCC and EN 50155 compliant

Ordering Information

  • VAM706 (P/N-E277706100)
    Value-added module with 4 M12 X-coded GbE LAN
  • VAM707 (P/N-E277707100)
    Value-added module with 4 M12 X-coded GbE LAN and PoE

Download

Drivers

Software

Manual

Date Description Version Download File
2021/06/21 VAM706 Quick Manual VA1_03-14-2019 VA1
2021/06/21 VAM707 Quick Manual VA1_06-17-2019 VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/11/28 EN50155 Certificate
