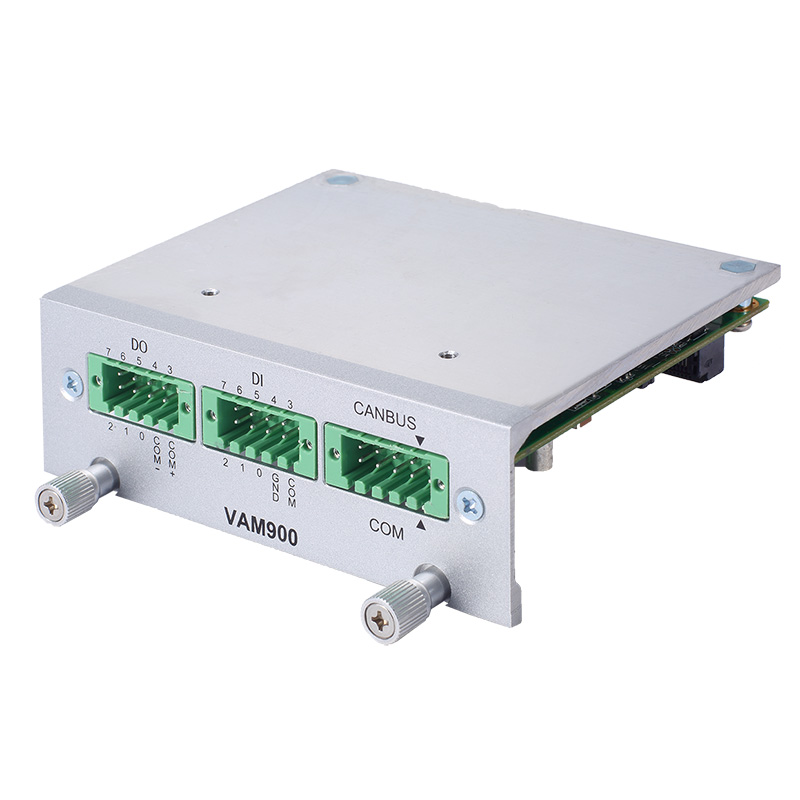

VAM900

Status : Available

Value-added Module with COM/CAN/DIO and 3 PCI Express Mini Card slots

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
VAM900
OPS

OPS

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 1 4-wire isolated RS-232/422/485, 1 isolated CANBus 2.0A/B, 1 isolated DIO 8-in/8-out
  • Swappable modular design
  • Maximize I/O flexibility
  • 2kV (COM & CANBus)/1.5 kV (DIO) isolated protection
  • Designed for tBOX300/500 series
  • EN 50155 certified; CE, LVD and FCC compliant

Specifications


I/O
  • 1 x Terminal block 4-wire isolated RS-232/422/485 COM
  • 1 x Terminal block isolated CANBus 2.0A/B (isolation voltage: 2 kV)
  • 1 x Terminal block isolated DIO 8-in/8-out
Expansion
  • 2 x Full-size Rev. 1.2 PCI Express Mini Card slot (USB with SIM socket)
  • 1 x Half-size Rev. 1.2 PCI Express Mini Card slot (PCIe)
Isolation Voltage
  • COM & CANBus: 2 kV
  • DIO: 1.5 kV
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with tBOX500 series & wide operating temperature peripheral
  • -25°C to +70°C (-13°F to +158°F) with tBOX300 series & wide operating temperature peripheral
Certifications
  • EN 50155 certified; CE, LVD and FCC compliant

Ordering Information

  • VAM900 (P/N-E277900100)
    Value-added module with COM/CAN/DIO and 3 Rev.1.2 PCI Express Mini Card slots

Download

Drivers

Date Description Version Download File
2020/06/15 Driver VA1.1

Software

Manual

Date Description Version Download File
2021/06/21 VAM900 Quick Manual VA1_03-11-2019 VA1

Design Guide

Technical Announcement

Certificates
