CAPA55R

Status : Available

3.5” Embedded SBC with 11th Gen Intel® Core™ i7/i5/i3, Celeron® Processor, DisplayPort++, HDMI, LVDS, 1 GbE LAN and 2.5 GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

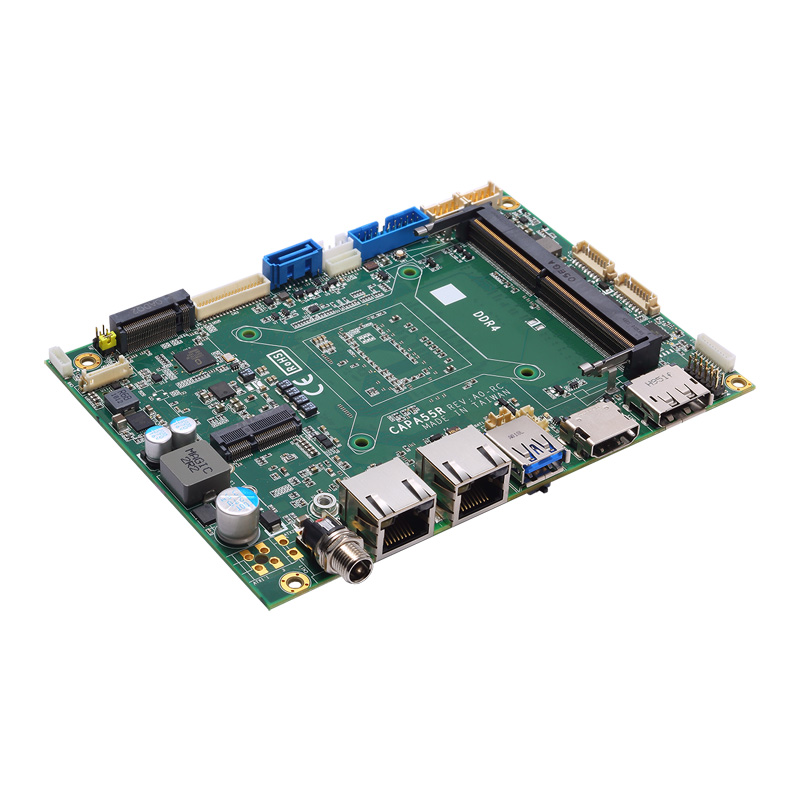

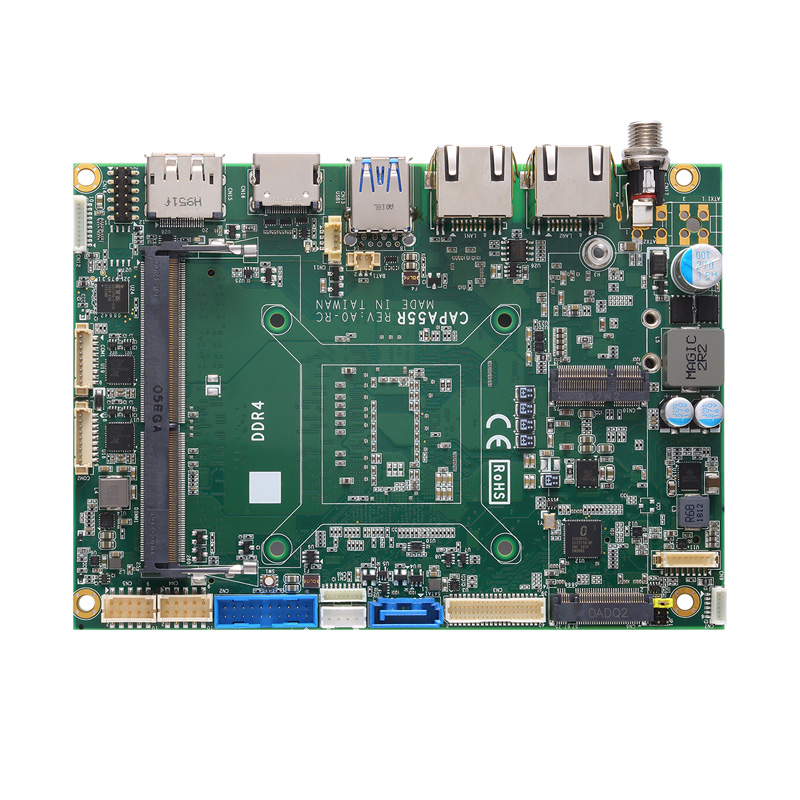

CAPA55R
CAPA55R
CAPA55R
CAPA55R
CAPA55R
PoE

PoE

TripleView

TripleView

AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 11th gen Intel® Core™ i7/i5/i3 & Celeron® Processor
  • 2 DDR4 SO-DIMM for up to 64GB of memory
  • GbE LAN and 2.5 GbE LAN ports
  • 3 M.2 expansion slot

The CAPA55R is powered by the 11th Gen Intel® Core™ i7/i5/i3 & Celeron® processors (code name: Tiger Lake-UP3) with 28W cTDP and Intel® Iris® Xe Graphics. The industrial-grade embedded board features triple-display capability through HDMI 1.4, LVDS and DisplayPort++ interfaces, making it well-suited for graphics-intensive applications. This industrial motherboard is designed for operational stability with a wide operating temperature range from -20°C to +60°C. The CAPA55R is optimized for various industrial IoT-related applications in the embedded market, such as industrial control, machine vision, self-service terminal, digital signage, and medical imaging.

Specifications

CPU
  • 11th Gen Intel® Core™ i7/i5/i3 & Celeron® processor (cTDP up to 28W)
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin dual-channel DDR4-3200MHz SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 3 x USB 3.2 Gen2
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
  • 1 x 10/100/1000/2500 Mbps Ethernet (Intel® I225-LM)
Display
  • 1 x HDMI 1.4
  • 1 x LVDS
  • 1 x eDP (optional)
  • 1 x DisplayPort++
Digital I/O
  • 8-channel in/out programmed
Audio
  • HD Audio link via pin header
Storage
  • 1 x SATA-600
  • 1 x M.2 Key M (PCIe x4 in 22 x 80)
Expansion
  • 1 x M.2 Key E (PCIe x1, USB 2.0 in 22 x 30)
  • 1 x M.2 Key B (PCIe x1, USB 3.2 Gen2, USB 2.0 in 30 x 42 or 30 x 50)
  • 1 x SIM connector via pin header
Others
  • TPM 2.0 onboard
Battery
  • Lithium 3V/220 mAh
Power Input
  • 1 x DC Jack
  • 12V to 24V DC in
  • AT Auto Power On function supported
Power Requirements
  • N/A
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • Fan: 0°C to 60°C (32°F to 140°F)
  • Heatsink: -20°C to 60°C (-4°F to 140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA55RPHGG-i7-1185G7E w/fan (P/N-E38E55R100)
    3.5" embedded SBC with 11th gen Intel® Core™ i7-1185G7E, DisplayPort++, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and cooler
  • CAPA55RPHGG-i5-1145G7E w/fan (P/N-E38E55R101)
    3.5" embedded SBC with 11th gen Intel® Core™ i5-1145G7E, DisplayPort++, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and cooler
  • CAPA55RPHGG-i3-1115G4E w/fan (P/N-E38E55R102)
    3.5" embedded SBC with 11th gen Intel® Core™ i3-1115G4E, DisplayPort++, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and cooler
  • CAPA55RPHGGCELERON-6305E w/fan (P/N-E38E55R103)
    3.5" embedded SBC with 11th gen Intel® Celeron® 6305E, DisplayPort++, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and cooler
  • CAPA55R-I71185-H (P/N-E38E55R110)
    3.5" embedded SBC with 11th gen Intel® Core™ i7-1185G7E, DisplayPort++, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and heatsink
  • CAPA55R-I51145-H (P/N-E38E55R111)
    3.5" embedded SBC with 11th gen Intel® Core™ i5-1145G7E, DisplayPort++, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and heatsink
  • CAPA55R-I31115-H (P/N-E38E55R112)
    3.5" embedded SBC with 11th gen Intel® Core™ i3-1115G4E , DisplayPort++, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and heatsink
  • CAPA55R-6305E-H (P/N-E38E55R113)
    3.5" embedded SBC with 11th gen Intel® Celeron® 6305E, DisplayPort++, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and heatsink
  • AX93A19 (P/N-E393A19100)
    SIM card slot board
  • AX93A22 (P/N-E393A22100)
    HD codec audio board for Mic-in/Line-in/Line-out
  • 594E8422800E
    2 USB 2.0 wafer cables w/bracket, 180 mm
  • 59380880250E
    COM port cable DB-9 x 1P, P=1.25 mm, L=250 mm
  • 594H3186800E
    Buzzer cable 9 x 5.5 mm 2-pin, L=40 mm
  • 59451522810E
    USB 3.0 cable 20P to USB type-A/FE*2, L=40 mm
  • 713000000400
    CAPA55R heat spreader

Download

Drivers

Date Description Version Download File
2023/05/03 Windows_10_LAN VA1.1
2023/04/28 Windows_11_Graphics VA1.1
2023/04/28 Windows_11_LAN VA1.1
2023/04/28 Windows_11_SerialPatch VA1.1
2023/04/28 Windows_11_SerialIO VA1.1
2023/04/28 Windows_11_ME VA1.1
2023/04/28 Windows_11_Chipset VA1.1
2023/04/28 Windows_10_SerialPatch VA1.1
2023/04/28 Windows_10_ME VA1.1
2023/04/28 Windows_10_Grapchics VA1.1
2023/04/28 Windows_10_Chipset VA1.1

Software

Manual

Date Description Version Download File
2023/11/08 User Manual VA3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/06/16 CE-Conformity Declaration
2021/12/06 UKCA Declaration of Conformity
