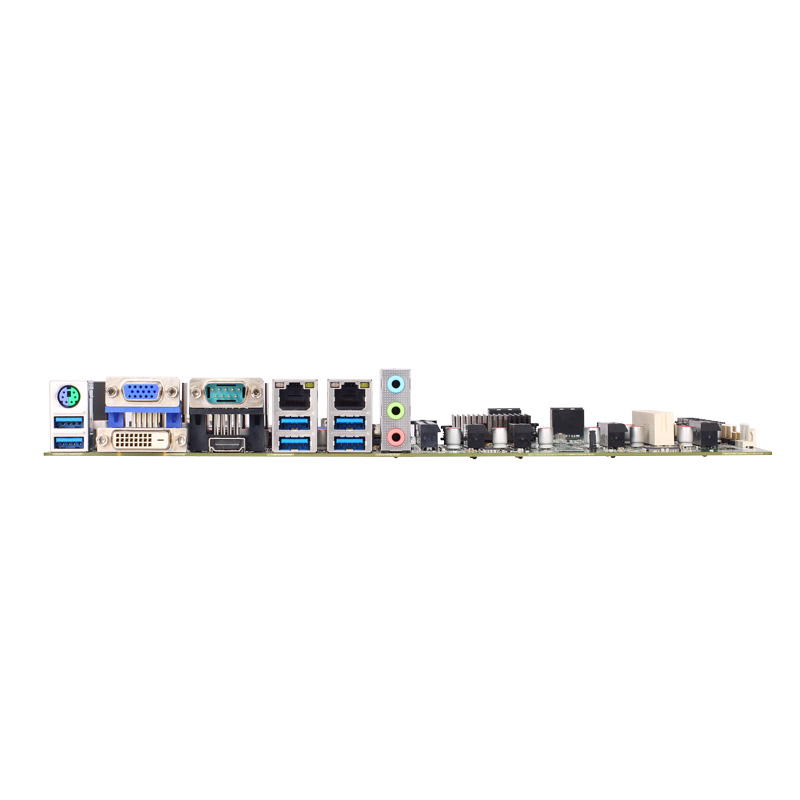

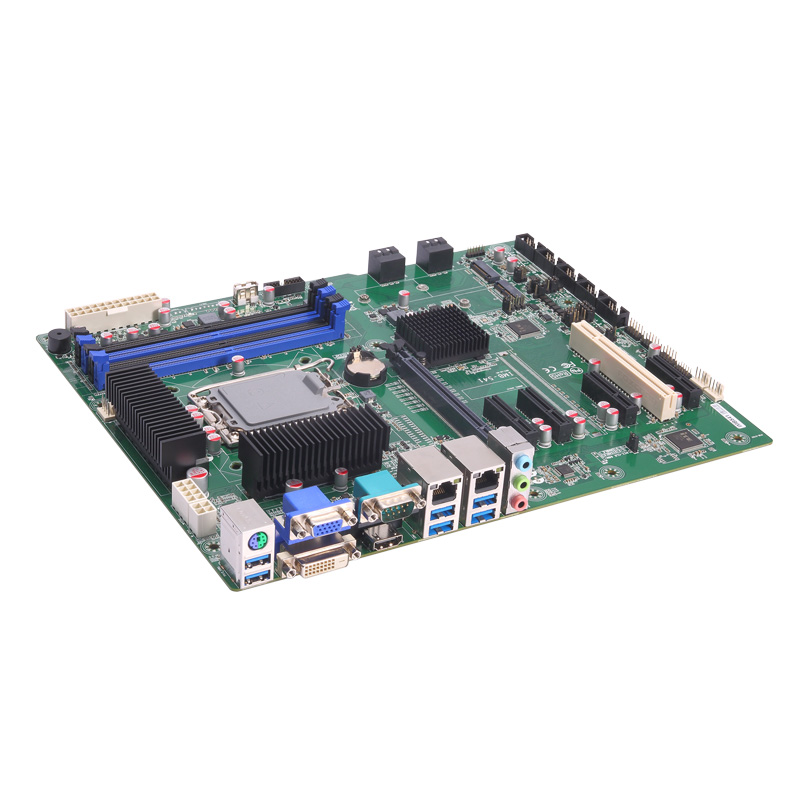

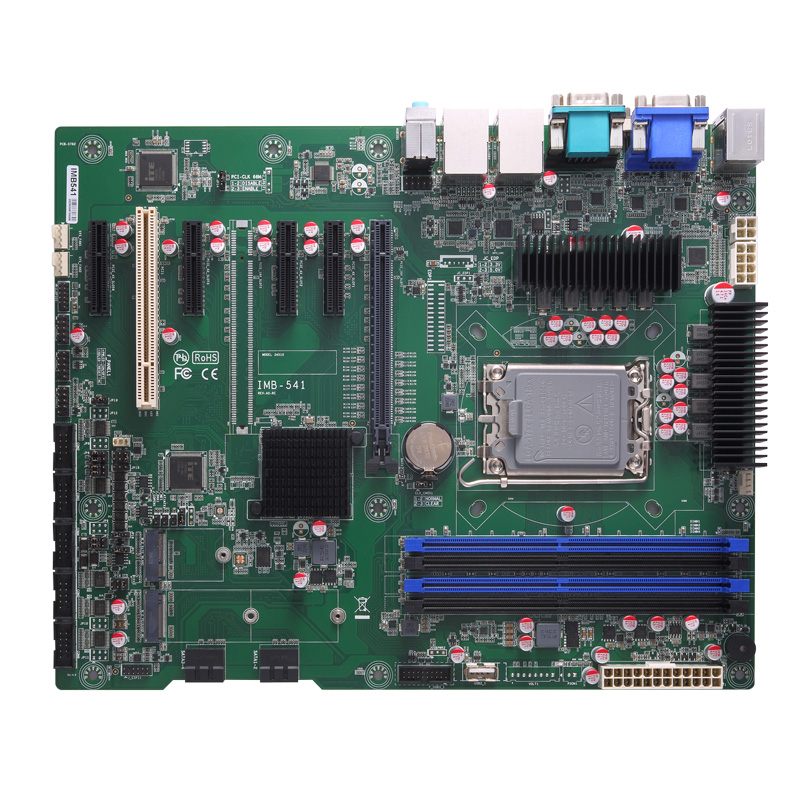

IMB541

Status : Available

ATX Motherboard with LGA1700 Socket 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® Q670E, USB 3.2 Gen1x1 , SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IMB541
IMB541
IMB541
IMB541
IMB541
+5V

+5V

AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Alder Lake S)
  • Four 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
  • Supports triple-view with VGA, DVI-D, and HDMI connectivity
  • Supports M.2 Key M 2280 and Key B 2230
  • 6 USB 3.2 Gen1x1 and 2 USB 3.2 Gen1x1 (internal)
  • TPM 2.0 supported (optional)

Specifications

CPU
  • LGA1700 socket 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® Q670E
System Memory
  • 4 x 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
BIOS
  • AMI

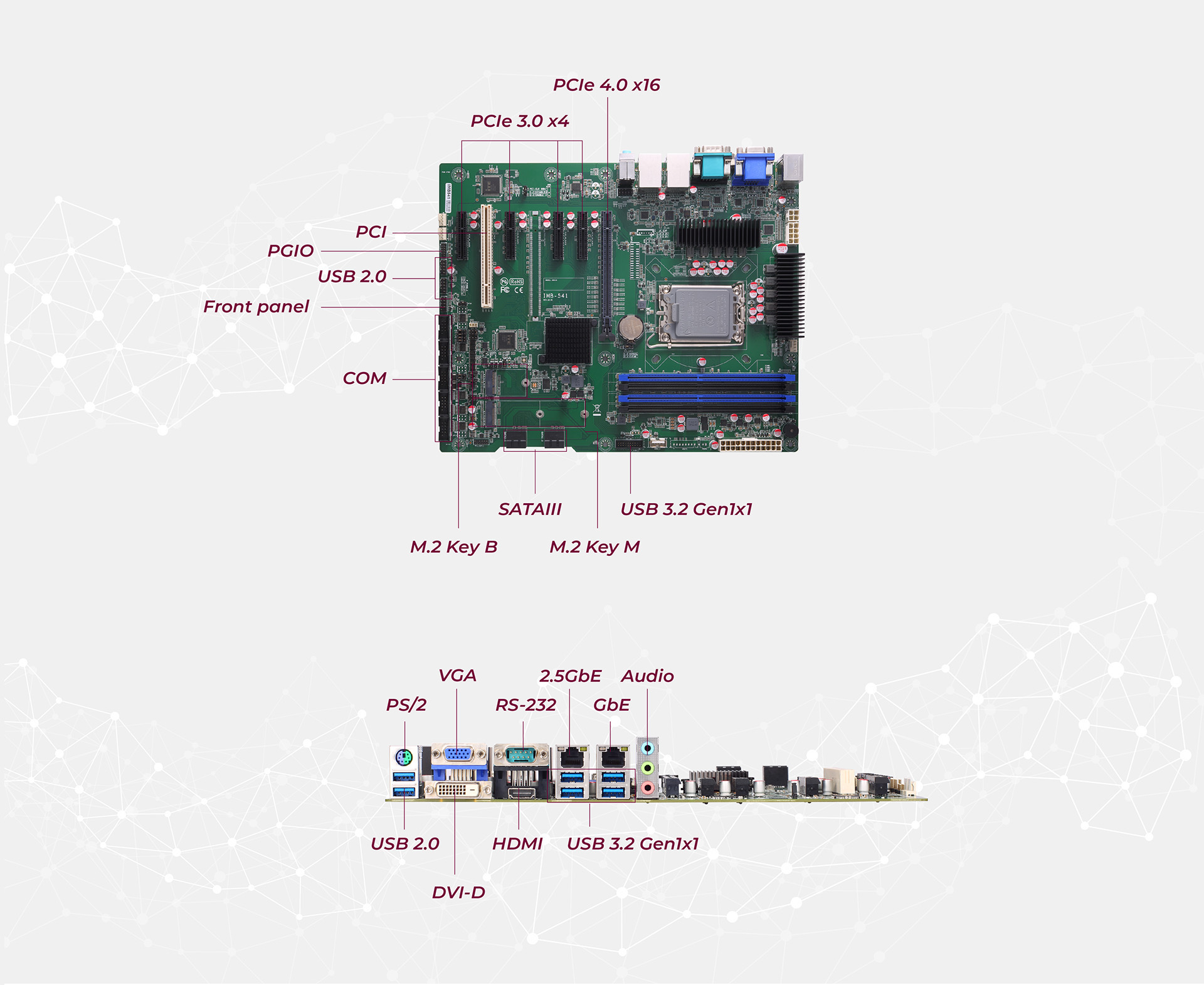

COM
  • 1 x RS-232 (rear I/O)
  • 3 x RS-232 (internal box header)
  • 1 x RS-232/422/485 (internal box header)
  • 1 x RS-232/485 (internal box header)
USB
  • 6 x USB 3.2 Gen1x1 (5Gbps, rear I/O)
  • 2 x USB 2.0 (rear I/O)
  • 2 x USB 3.2 Gen1x1 (5Gbps, internal box header)
  • 4 x USB 2.0 (internal pin header)
  • 1 x USB 2.0 (internal 180D type A)
Ethernet
  • 1 x 10/100/1000/2500 Mbps (Intel® I225-V)
  • 1 x 10/100/1000 Mbps (Intel® I219-V)
Display
  • 1 x VGA
  • 1 x HDMI 1.4b
  • 1 x DVI-D
Digital I/O
  • 8-channel programmable
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 4 x SATA-600 with RAID 0/1/5/10
  • M.2 Key M 2280 in support of PCIe x4 via CPU
Expansion
  • 1 x PCIe Gen4 x16 slot
  • 4 x Open-ended PCIe x4 slot (Gen4 signal by PCH, slot 2 supports Gen3 only)
  • 1 x M.2 Key B 2230 (supports PCIe x1 and USB)
  • 1 x 32-bit PCI slot, default clock is 33 MHz
Others
  • 1 x PS/2 keyboard (rear I/O)
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • TPM 2.0 (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • IMB541-Q670E-BP (P/N-E38F541100)
    ATX motherboard with LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® Q670E, USB 3.2 Gen1x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI (bulk packaging)
  • IMB541-Q670E-SP (P/N-E38F541101)
    ATX motherboard with LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® Q670E, USB 3.2 Gen1x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI (single packaging)
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen1 cable with bracket, L=400 mm
  • 594G5208000E
    SATA III signal cable, L=500 mm with locking latch
  • 594G5208010E
    SATA III signal cable, L=500 mm without locking latch
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 711000002500
    CPU cooler for 2U, 4U, and wall mount chassis with smart fan

Download

This object is currently under update, please visit later.
