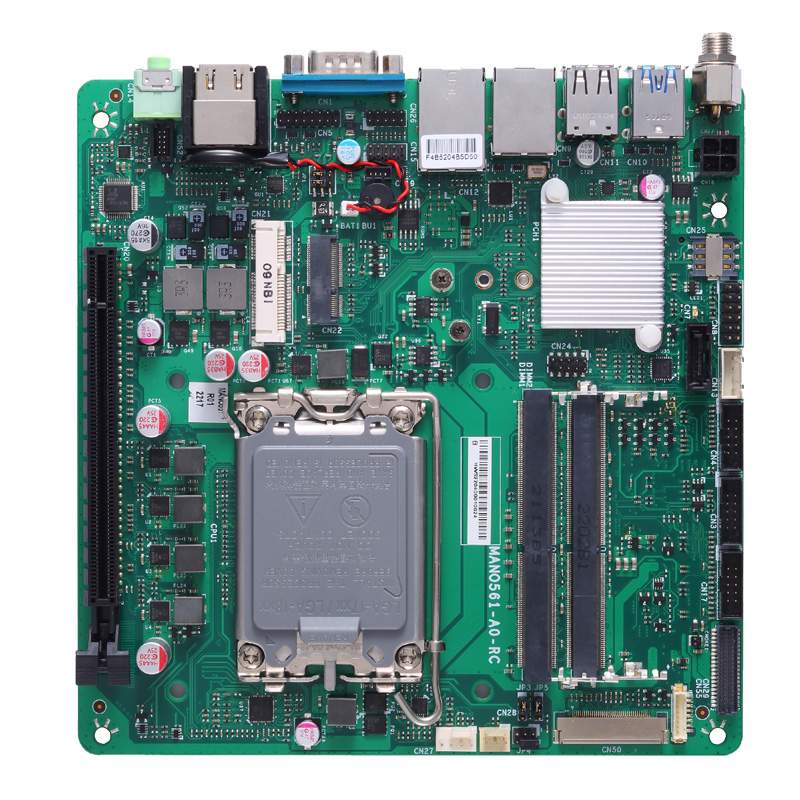

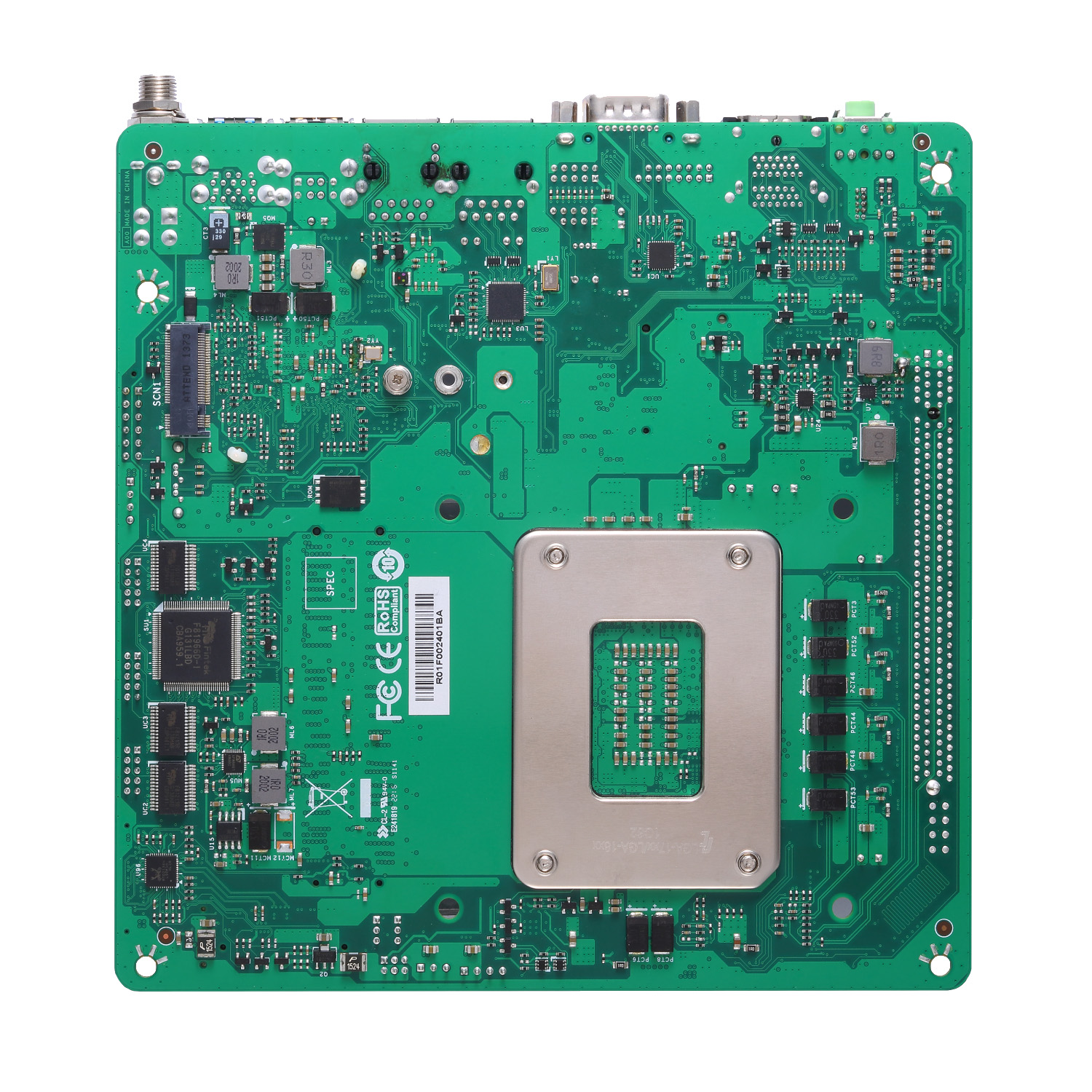

MANO561

Status : Available

Thin Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor HDMI, VGA, LVDS, USB 3.2, M.2, and Dual GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO561
MANO561
MANO561
AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
  • Intel® H610 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0
  • 2.5GbE LAN and 4 COM ports
  • 1 PCIe x16, 1 M.2 Key E, and 1 M.2 Key B
  • 1 full-size PCI Express Mini Card slot
  • 1 SATA-600
  • 12 to 24 VDC power in

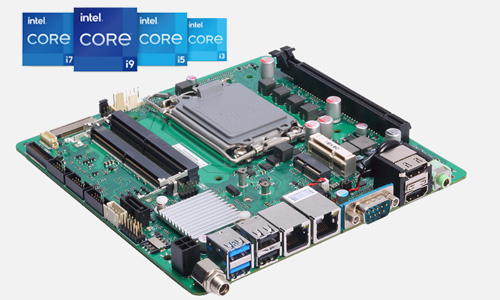

Fast AI Computing Performance
The MANO561 is powered by the 12th Gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® Gold, or Intel® Celeron® processors (up to 65W) with the Intel® H610 chipset. Plus, it has two DDR4-3200/2666/2400 SO-DIMM sockets with a maximum of 64GB system memory.
MANO561
MANO561

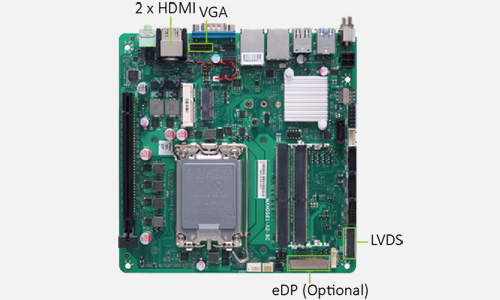

Impressive Graphics for Multi-Displays
The MANO561 has Intel® UHD Graphics and provides two HDMI, one LVDS, one VGA port in support of triple displays. This feature can be widely applied in various fields, such as manufacturing monitoring, medical, digital signage, and self-service kiosks.

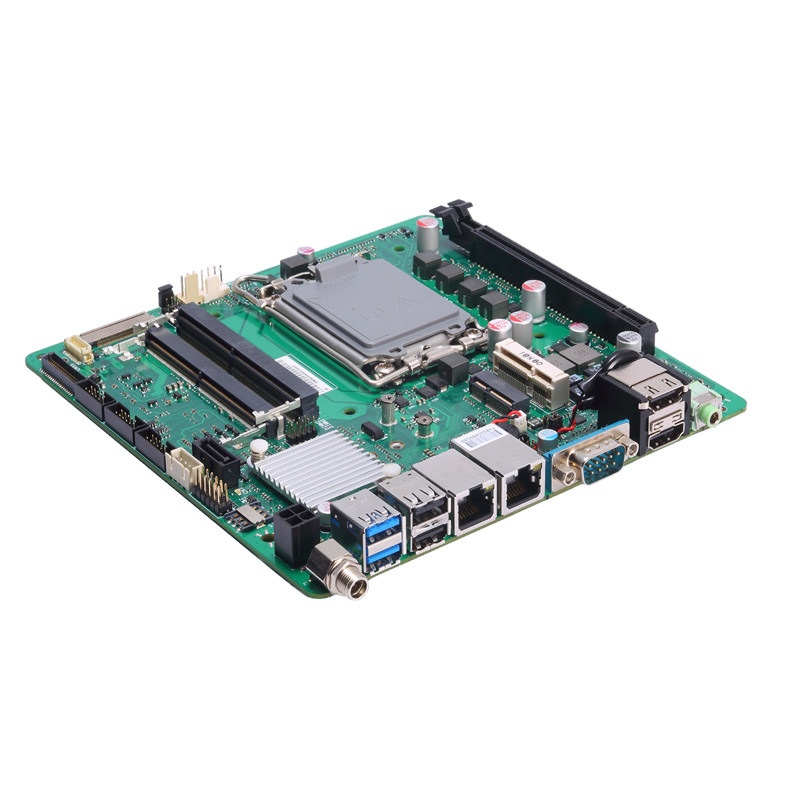

Superior Thin Mini-ITX Motherboard for 12th Gen Intel® Core™ Processor
The MANO561 is built with LGA1700 socket for the 12th generation Intel® Core™ processors. Aside from superior compute performance, this low-profile embedded motherboard delivers high-speed connectivity with flexible I/O, impressive graphics in support of triple displays, and high reliability by 12V-24V wide-range DC power to bridge the next-gen AIoT applications.
MANO561

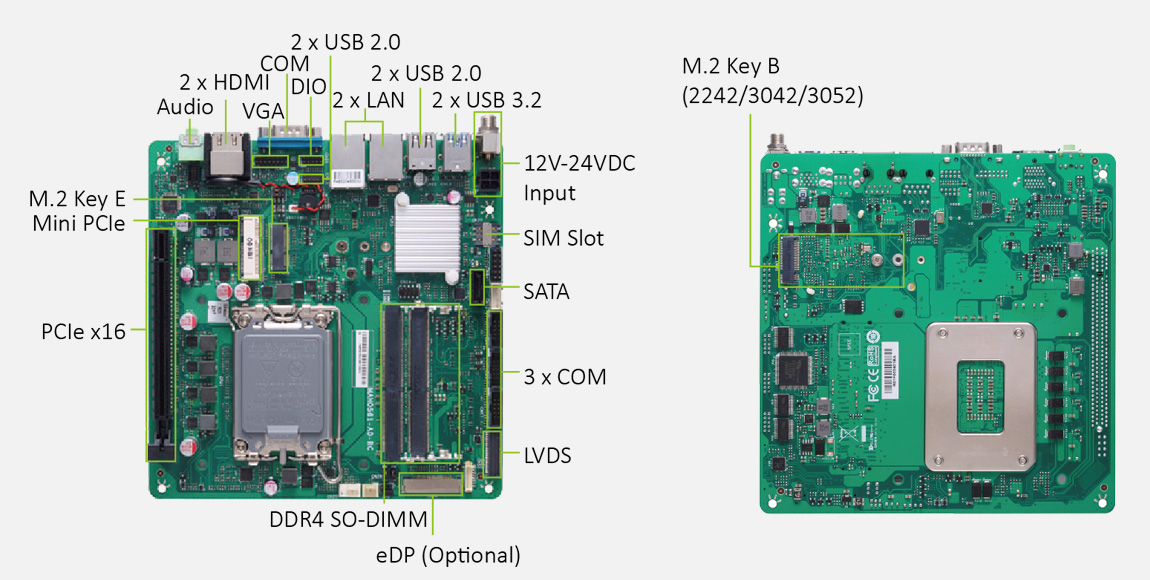

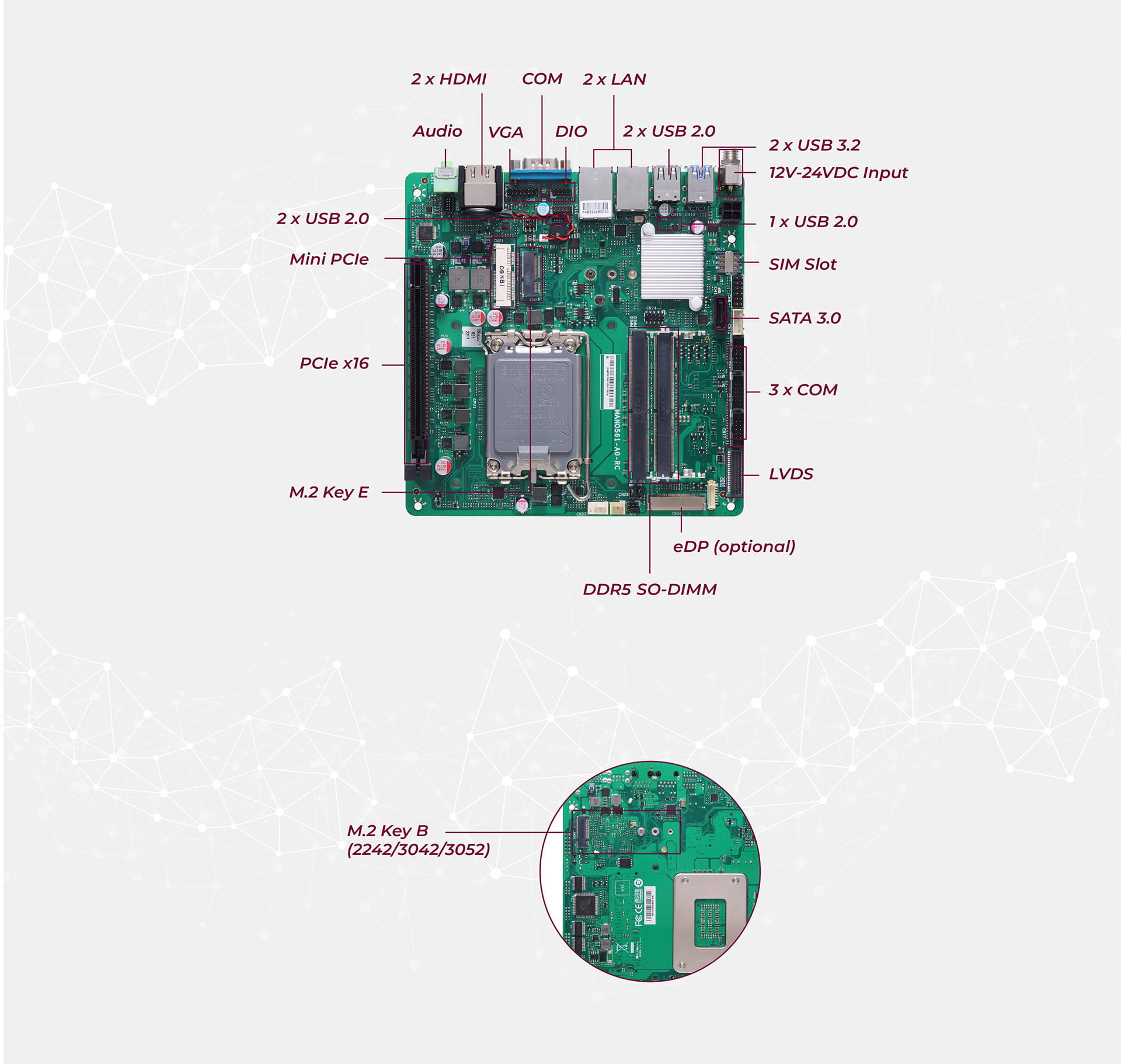

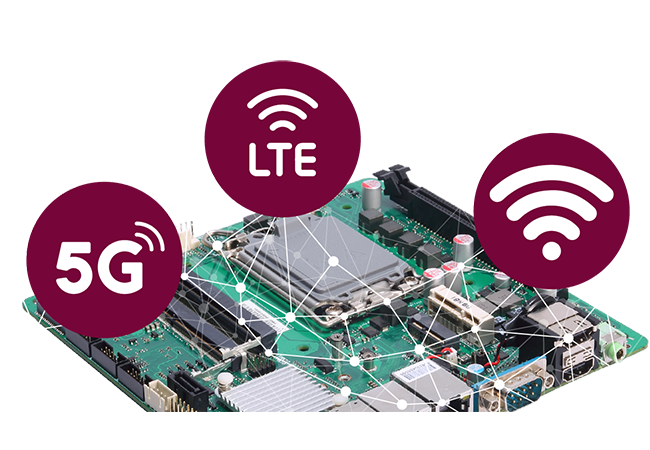

High-Speed Connectivity
To speed up the data transmission, in addition to a GbE LAN, the MANO561 features a 2.5GbE LAN. It brings one M.2 Key B 2242/3042/3052 slot for 5G/4G/LTE and one M.2 Key E 2230 slot for Wi-Fi connection, making the board applicable in a variety of applications that require connectivity.
Rugged Design and Protection
The MANO561 supports TPM 2.0 to secure hardware-based data. Besides, it can withstand a wide operating temperature range of 0°C to 60°C and supports 12-24V DC power-in for stable ongoing system operation.

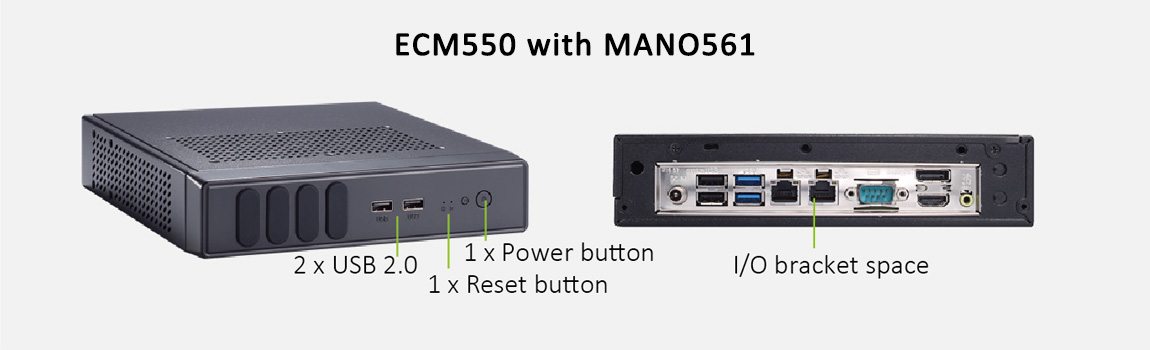

Embedded Chassis for Low Power Mini-ITX SBC
To assist with customers’ industrial integration requirements, Axiomtek offers the ECM550, a thin Mini ITX chassis designed for the MANO561 to speed up time-to-market and reduce overall development costs.
ECM550

Specifications

CPU
  • LGA1700 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 65W)
Chipset
  • Intel® H610
System Memory
  • 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 3 x RS-232
USB
  • 2 x USB 3.2 Gen1
  • 5 x USB 2.0
Ethernet
  • 1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V)
  • 1 x 1000/100/10 Mbps Ethernet (Intel® I219-V)
Display
  • 2 x HDMI
  • 1 x LVDS (eDP BOM optional)
  • 1 x VGA
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x M.2 Key B
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key B 2242/3042/3052 (supports SATA & USB 3.2 Gen1)
  • 1 x M.2 Key E 2230
  • 1 x PCIe Mini Card slot (supports PCIe x1 & USB 2.0)
  • 1 x SIM slot for M.2 Key B
Others
  • Onboard TPM 2.0 (TPM IC: SLB9670)
Battery
  • Lithium 3V/220mAH
Power Input
  • 1 x 12 to 24V DC Jack
  • 1 x 12 to 24V 4-pin ATX connector
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO561-H-B (P/N-E38M561100)
    Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processor, HDMI, VGA, LVDS, USB 3.2, M.2, dual GbE LAN, HD audio, and bulk packing
  • MANO561-H-S (P/N-E38M561101)
    Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processor, HDMI, VGA, LVDS, USB 3.2, M.2, dual GbE LAN, HD audio, and single box packing
  • 505000001000
    LGA1700 Cooler 1U 4500RPM
  • 505000001100
    LGA1700 Cooler 1.5U 5500RPM
  • 594P8802810E
    USB Cable 150mm w/SCREWUSB USB Type-A Female x1 /HS P1.25-4P Internal
  • 590000039200
    COM Cable D-SUB9P to DuPont 2x5 P2.0 L=20cm
  • 59386831010E
    SATA2 Signal Cable 180D, L=350 mm (RC)
  • 590000054400
    CBL HS4P_to_SATA15P 300mm HS(XH 2.5 1x4)4P Pitch=2.5 /SATA 15P F 180D Internal
  • 5095AD24000E
    ADAPTER 19V 120W w/screw
  • 590000064100
    VGA cable D-SUB15P_to_HS16P 250mm D-SUB 15PIN(F) /HS(DP 2032H-2x8P)16P2.0 Internal
  • 591000006000
    USB cable L=250mm with SCREWUSB USB Type-A Female x 2 /HS (DP 2032H-2x5P)10P2.0 Internal

Download

Drivers

Date Description Version Download File
2022/10/25 Serial IO Driver for Windows 10 VA1.0
2022/10/25 LAN Driver for Windows 10 VA1.0
2022/10/25 Graphics Driver for Windows 10 VA1.0
2022/10/25 ME Driver for Windows 10 VA1.0
2022/10/25 Chip set Driver for Windows 10 VA1.0
2022/10/25 Audio Driver for Windows 10 VA1.0

Software

Manual

Date Description Version Download File
2024/02/27 MANO561 User's Manual VA5

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/11/09 UKCA Declaration of Conformity
2022/11/09 CE-Conformity Declaration
