MANO566

Status : Available

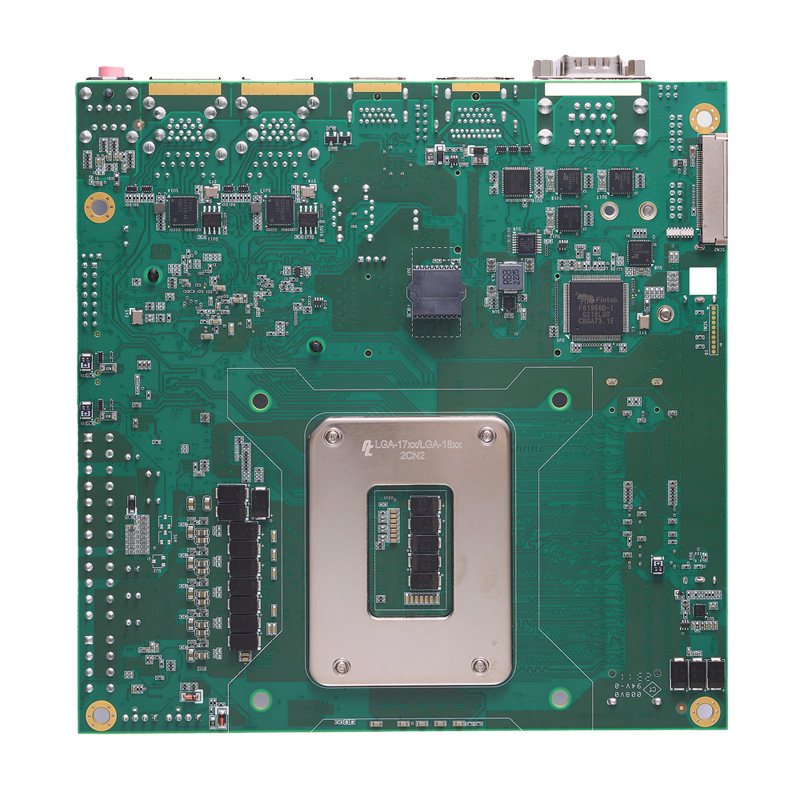

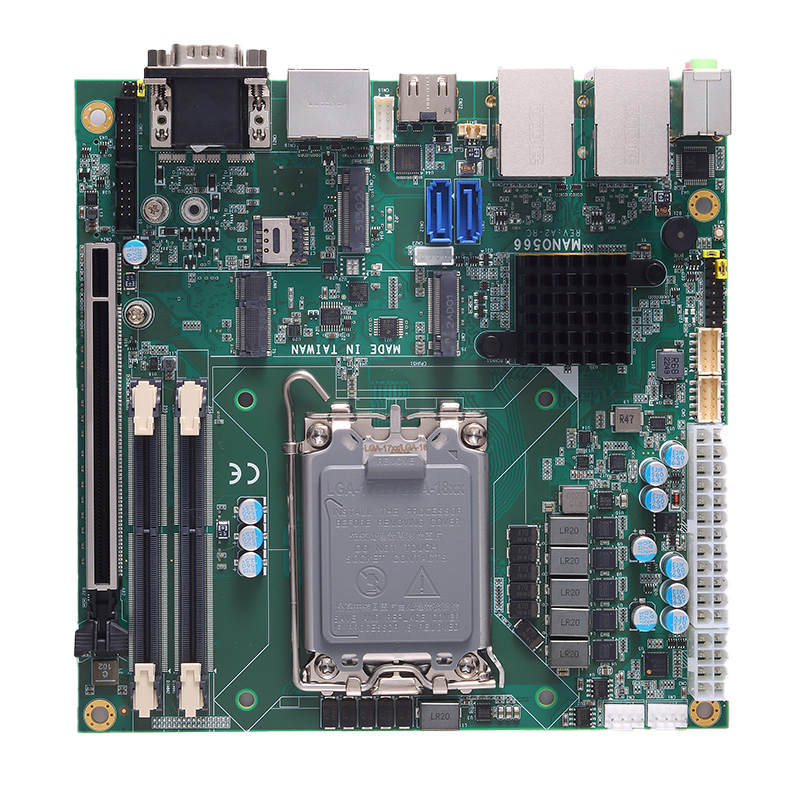

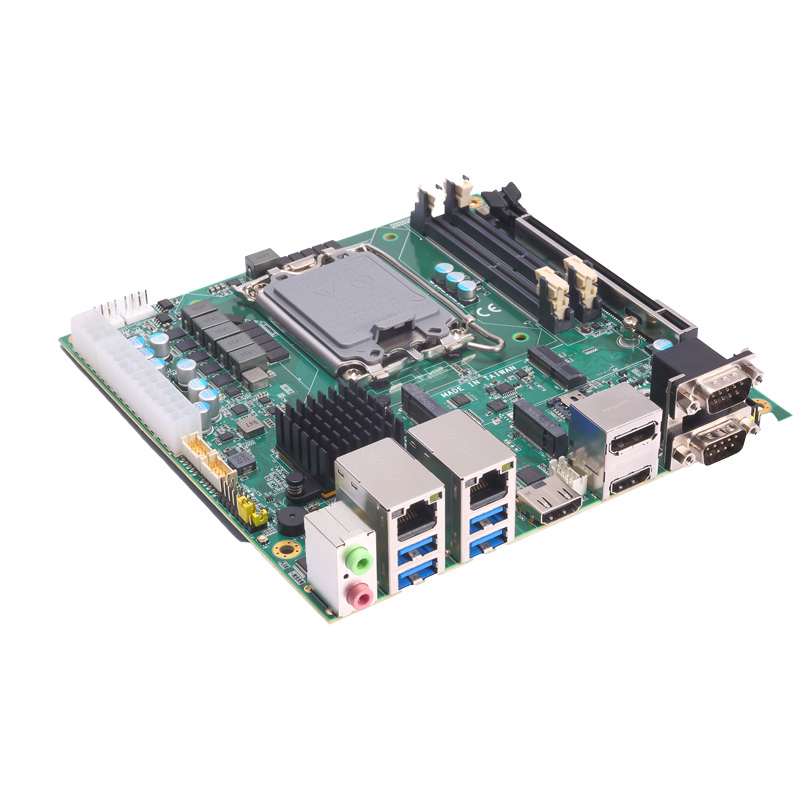

Mini-ITX SBC with LGA1700 Socket 12th Gen Intel® Core™ Processor, Intel® Q670E, 2 HDMI, DisplayPort++, eDP, 2 GbE LAN, and HD Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO566
MANO566
MANO566
MANO566
AXView

AXView

  • Features
  • Specifications
  • Ordering Information
  • Download

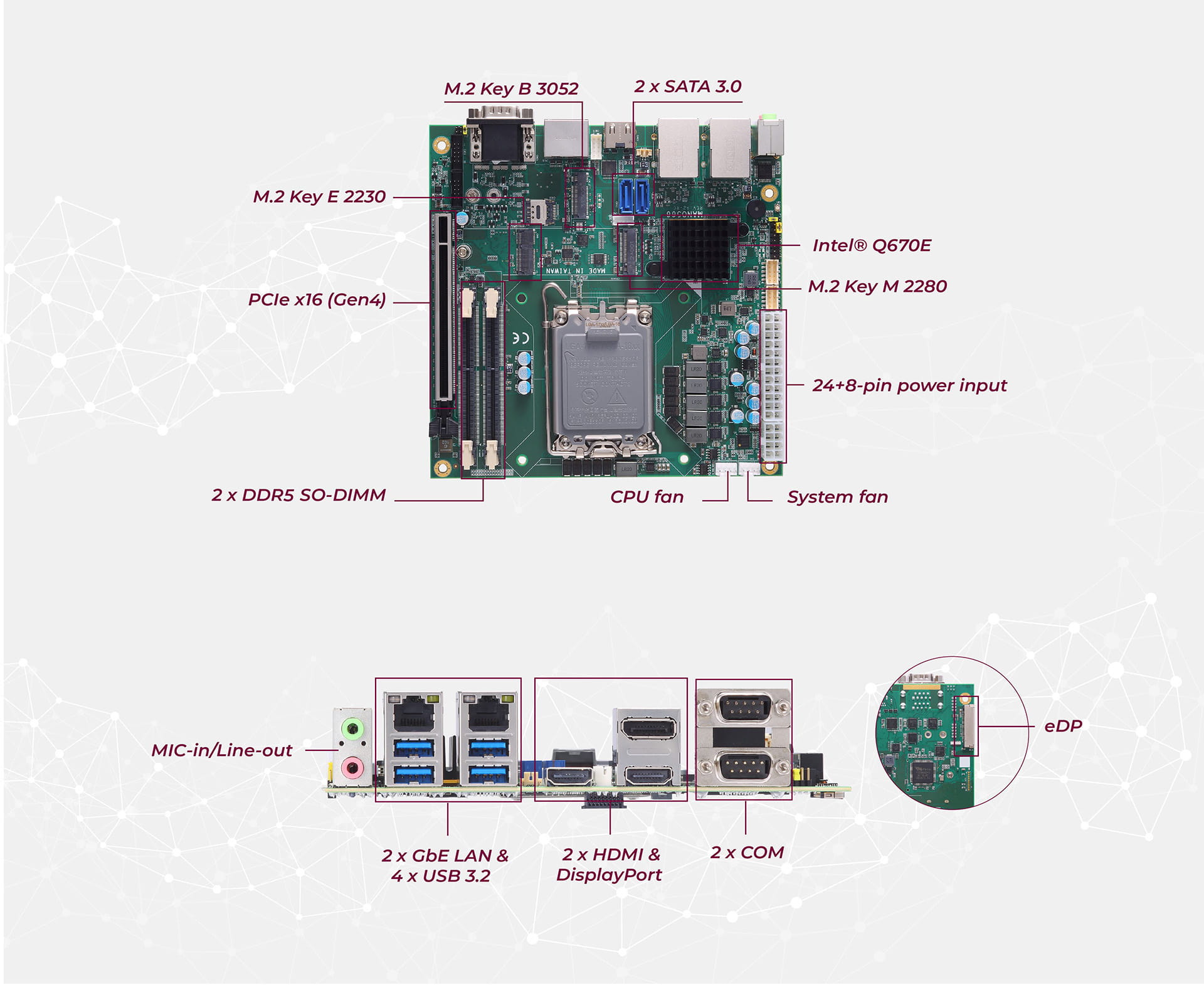

Features

  • LGA1700 socket 12th gen Intel® Core™ i7/i5/i3 processor
  • Intel® Q670E chipset
  • 2 DDR4 SO-DIMM for up to 64GB of memory
  • 4 USB 3.2 and 4 USB 2.0
  • 4 COM ports
  • 2 SATA-600 and 1 M.2 Key M 2280
  • 1 PCIe x16, 1 M.2 Key E 2230, and 1 M.2 Key B 3052/3042

Specifications

CPU
  • LGA1700 socket 12th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processor Gold or Celeron® processor (up to 65W)
Chipset
  • Intel® Q670E
System Memory
  • 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 4 x RS-232/422/485 (with +5V/+12V power)

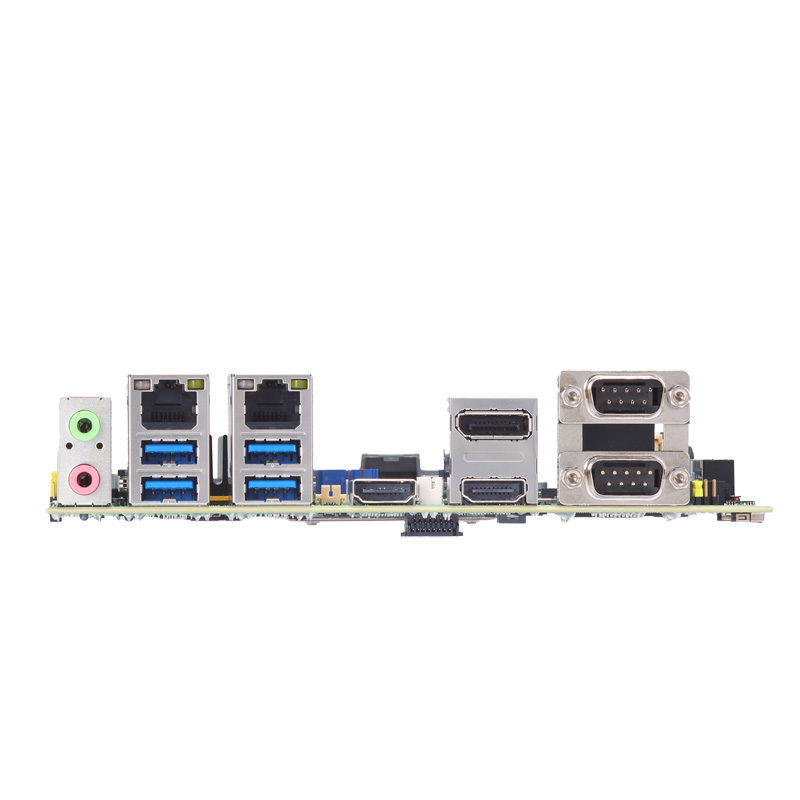

USB
  • 4 x USB 3.2
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-LM)
Display
  • 1 x DisplayPort++
  • 1 x eDP
  • 2 x HDMI
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-out
Storage
  • 2 x SATA-600
  • 1 x M.2 Key M 2280 with support of NVMe
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key E 2230
  • 1 x M.2 Key B 3052/3042
Others
  • Onboard TPM 2.0
Battery
  • Lithium 3V/220mAH
Power Input
  • 24+4-pin ATX connector
  • Supports AT Mode Auto Power function
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO566
    Mini-ITX SBC with LGA1700 Socket 12th Gen Intel® Core™ processor, Intel® Q670E, 2 HDMI, DisplayPort++, eDP, 2 GbE LAN, HD audio, and bulk packing
