GOT815A-TGL-WCD

Status : Available

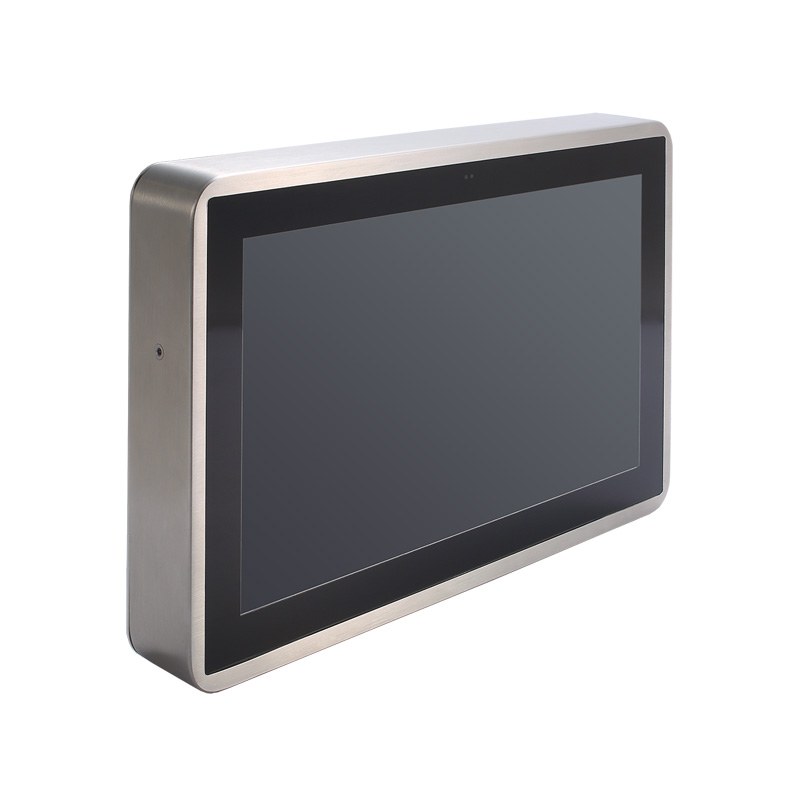

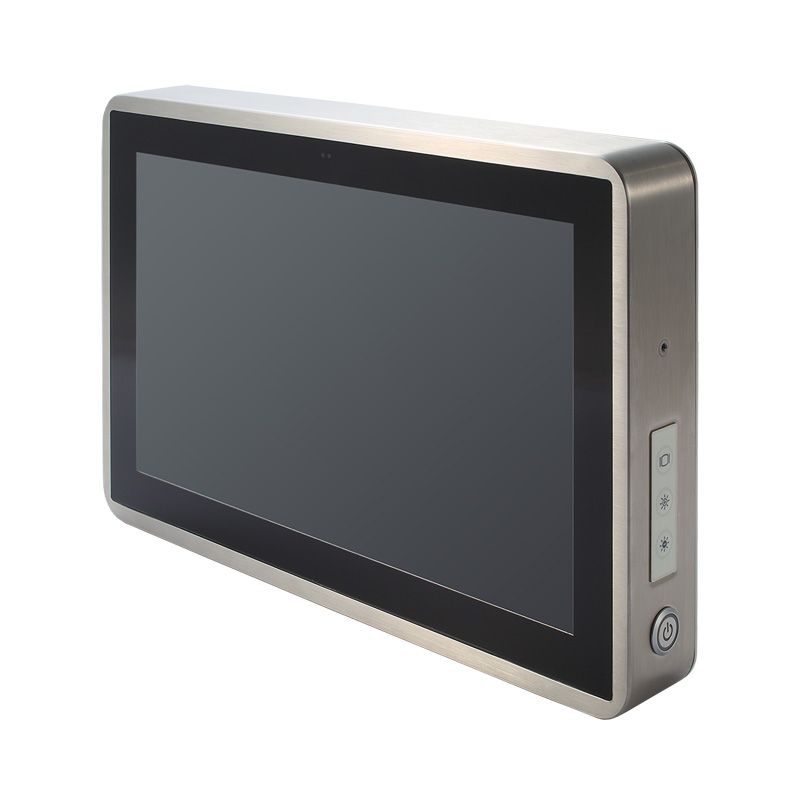

15.6" WXGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1145G7E or Celeron® 6305E Processor and Flat Bezel Design (-20°C to +50°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT815A-TGL-WCD
GOT815A-TGL-WCD
GOT815A-TGL-WCD
GOT815A-TGL-WCD
GOT815A-TGL-WCD
GOT815A-TGL-WCD
PoE

PoE

UL508

UL508

UL1604

UL1604

IP30

IP30

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

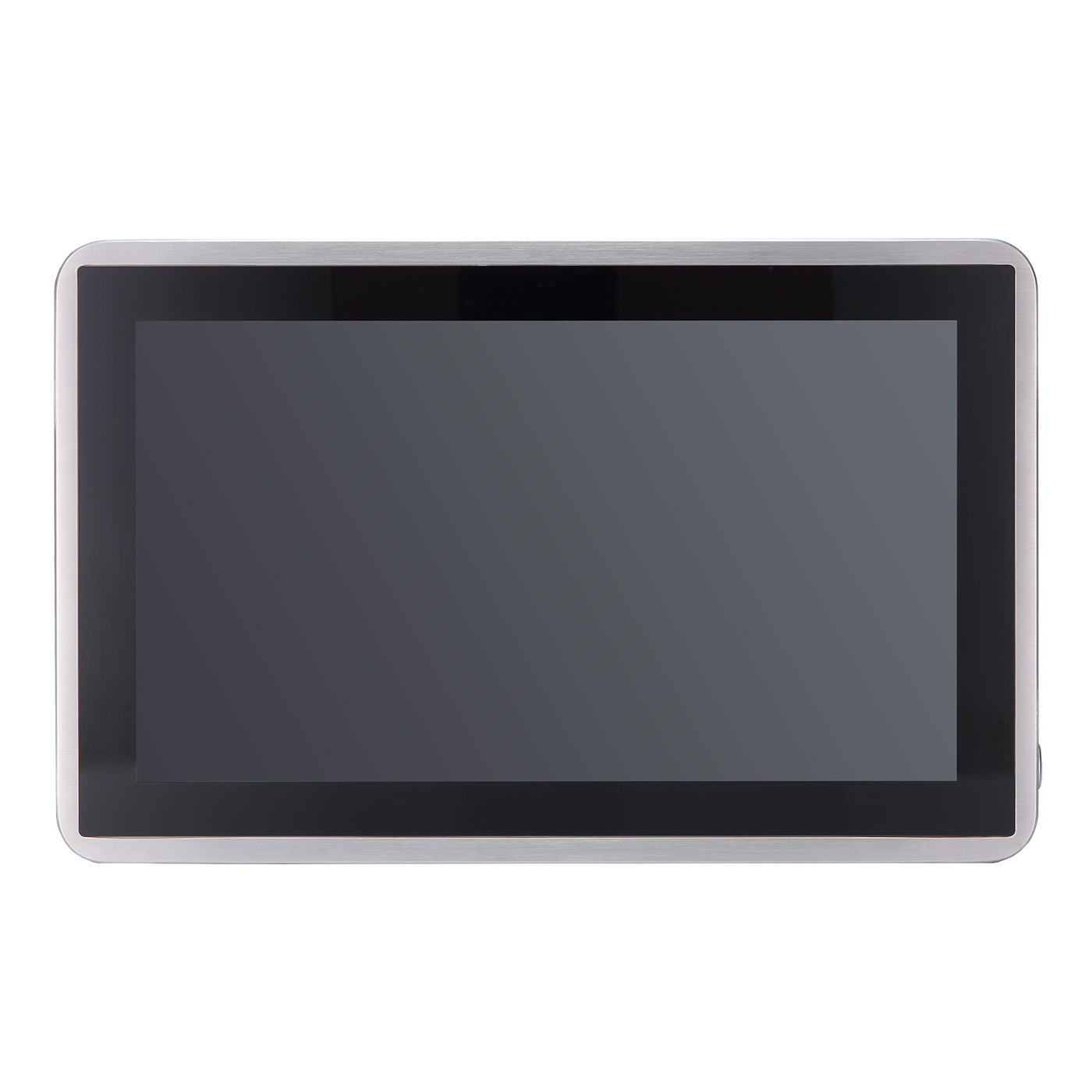

  • 15.6" WXGA TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4) water/dust design
  • Full stainless-steel enclosure with SUS 304
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-1145G7E or Celeron® 6305E processor
  • Wi-Fi kit for wireless network connectivity (optional)
  • Supports VESA mount
  • M12-type connectors for harsh environments

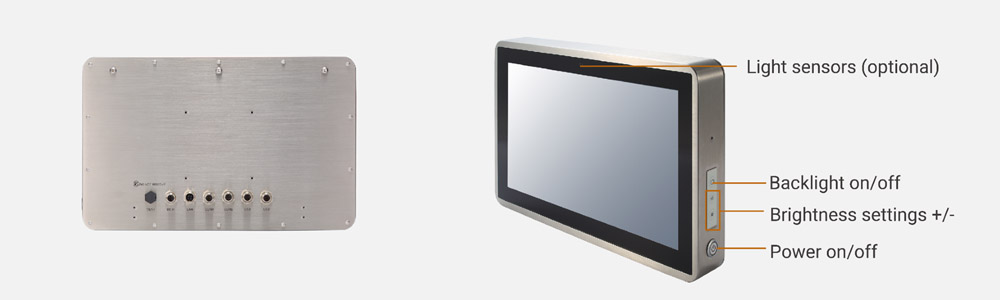

  • Supports proximity and light sensors (optional)
Ready for Harsh Operating Conditions

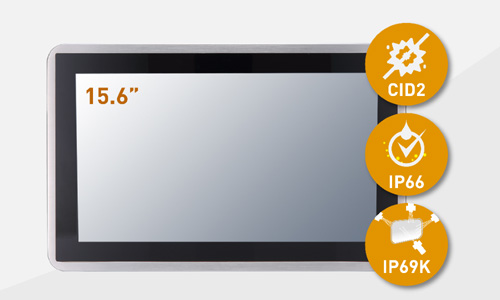

The GOT815A-TGL-WCD offers enhanced hygiene control with the provision of SUS 304/316 stainless steel enclosure for food, beverage, and pharmaceutical applications. Its IP69K-rated protection and waterproof M12-type I/O ports make the products safe for frequent washdown or high temperature and high-pressure sanitization. The GOT815A-TGL-WCD is also certified with CID2 for option, making it ideally suited for oil and gas or applications requiring a highly durable solution for extreme operating conditions.
GOT815A-TGL-WCD
GOT815A-TGL-WCＤ

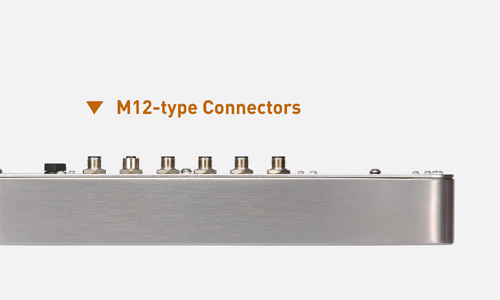

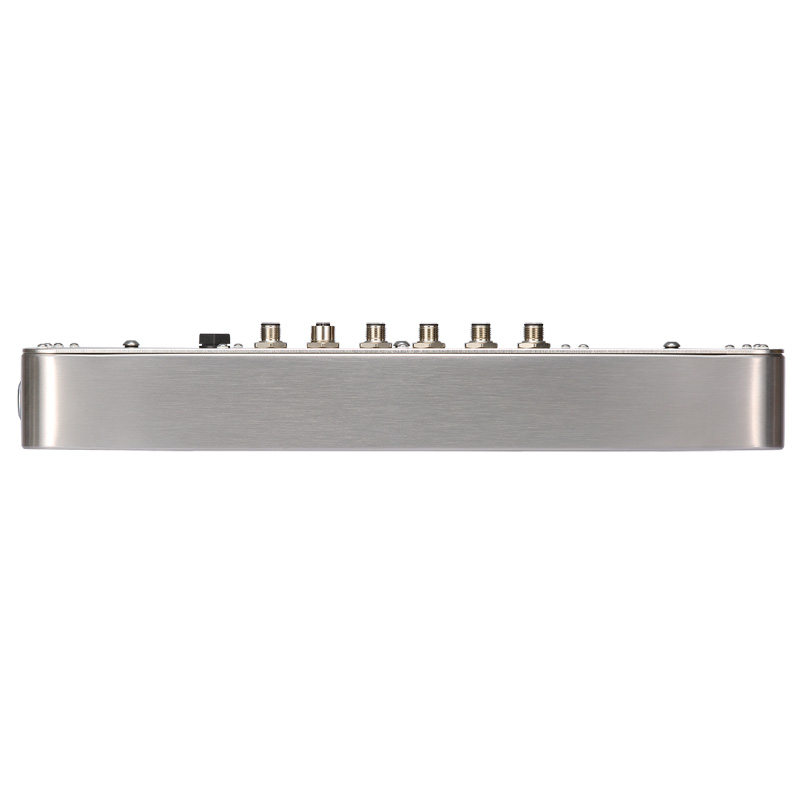

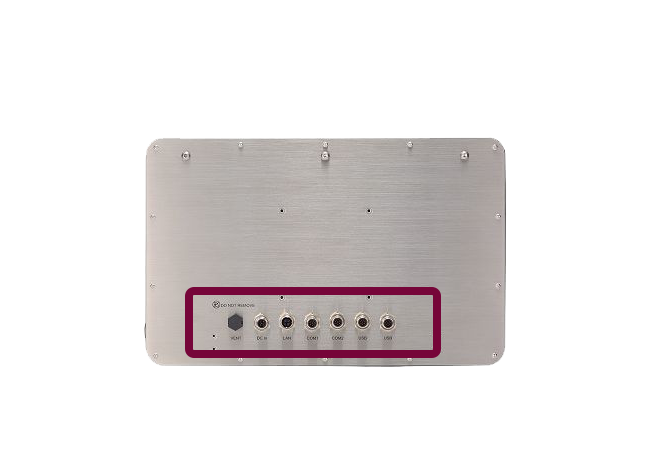

Waterproof M12-type Connectors
In addition to the IP69K rating, all the I/O ports feature waterproof M12-type connectors for maximum protection in wet, powder, and dusty operation conditions.
Rugged & Reliable Design
The GOT815A-TGL-WCD can operate under a wide temperature range from -20°C to +50°C and can withstand vibration up to 1G. It has wide range power input of 12 VDC to 24 VDC for use in a variety of applications.
GOT815A-TGL-WCD
Great Memory and Storage Capacity
The GOT815A-TGL-WCD comes with one 260-pin DDR4-3200 SO-DIMM for up to 32GB of system memory and one SATA SSD/HDD for storage. The HMI supports two full-sized PCI Express Mini Card slots for wireless connectivity and additional storage.

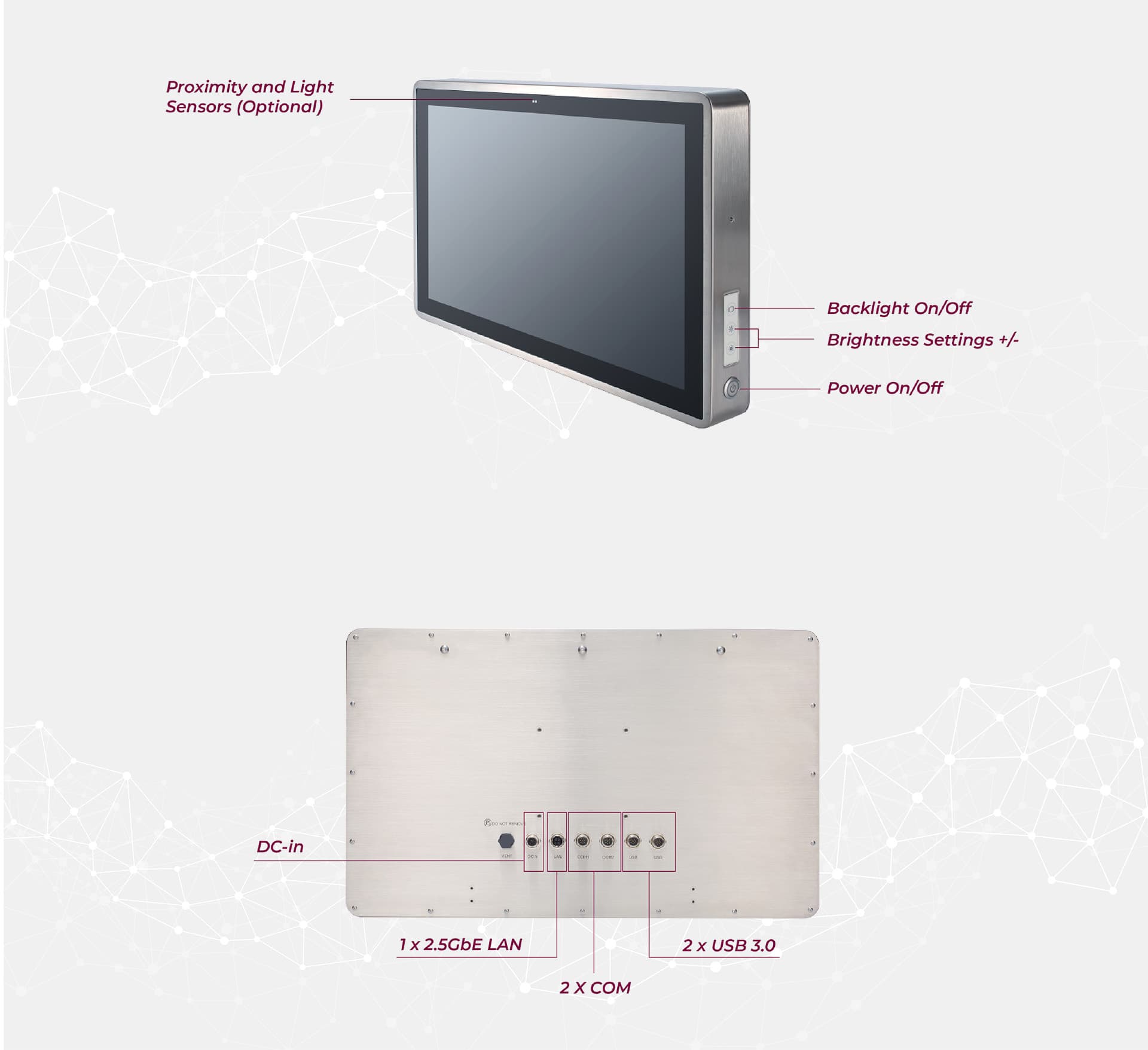

Rich I/O Interfaces

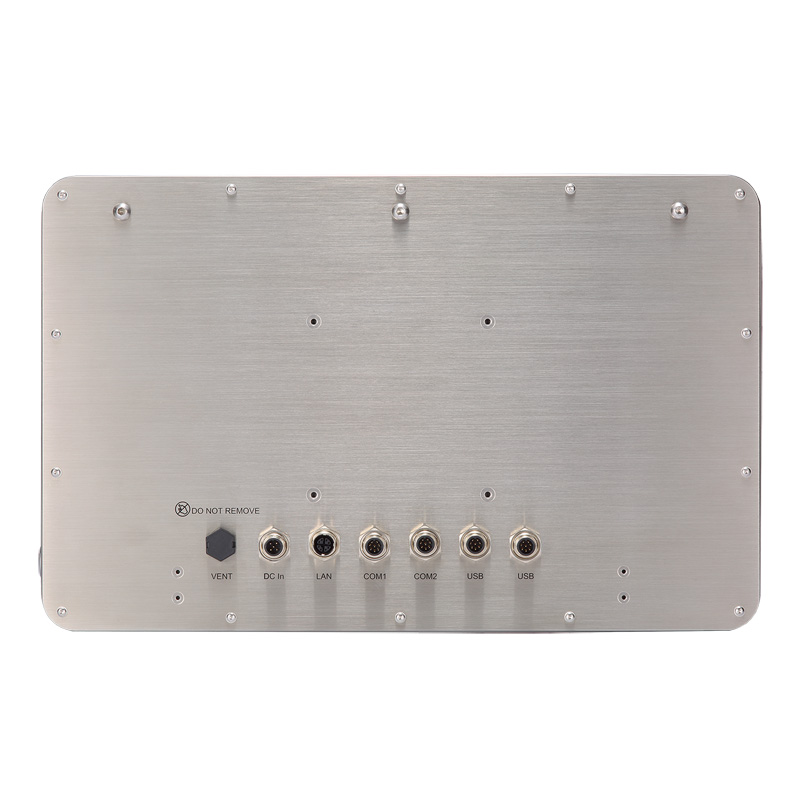

This robust GOT815A-TGL-WCD features abundant I/O ports by using M12 connectors, including two RS-232/422/485, four USB 2.0 ports, one 2.5GbE LAN port, and one DC power connector.

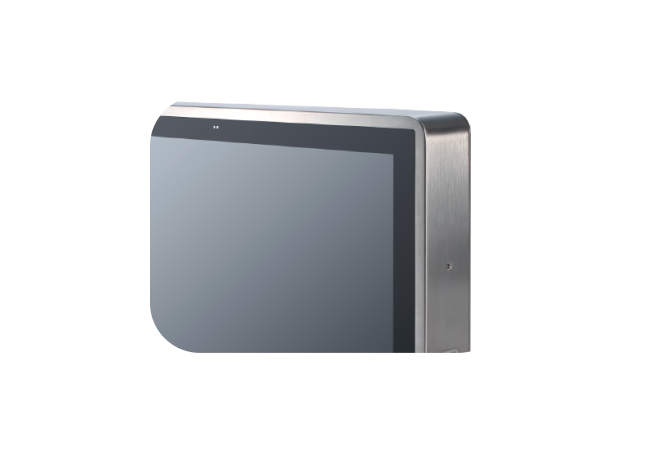

SUS 304/316 Stainless Steel Enclosure
The GOT815A-TGL-WCD has a SUS 304/316 stainless steel enclosure and a full flat front bezel for better reliability and strict hygiene demands. It is ideal for food, beverage, and pharmaceutical applications.

Specifications

LCD Panel
  • 15.6" WXGA TFT LCD
  • 400 nits
  • 1366 x 768 pixels
CPU
  • Intel® Core™ i5-1145G7E 2.6 GHz or Celeron® 6305E 1.8GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, A-coded)
USB
  • 4 x USB 2.0 (A-coded)
Ethernet
  • 1 x 2.5GBase-T Ethernet with Intel® I225 (X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA SSD (9.5mm height)
Expansion
  • 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)
Others
  • TPM 2.0 onboard
Touchscreen
  • Projected capacitive multi-touch
Enclosure
  • Stainless steel (SUS) 304 or 316 (optional)
Power Supply
  • 12 to 24 VDC
Power Comsumption
  • 72W
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% - 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)
  • 414.8 x 55 x 265.1 mm (16.33" x 2.2" x 10.44")
Weight (net/gross)
  • 5.8 kg (12.78 lb)/ 8.8 kg (19.40 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
  • C1D2 certified (must install I/O cover, 882B815A0A0E/ 882B815A1A0E)
EOS
  • Windows® 10 IoT, Windows® 11 IoT
Mounting
  • VESA mount

Ordering Information

  • GOT815A-TGL-WCD (P/N-E22B815A00)
    15.6" WXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Core™ i5-1145G7E, projected capacitive touch screen, 400 nits LCD, and 12 to 24 VDC power input
  • GOT815A-11C-WCD (P/N-E22B815A01)
    15.6" WXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Celeron 6305E, projected capacitive touch screen, 400 nits LCD, and 12 to 24 VDC power input
  • 594B8122100E
    Water-proof COM cable (1.8 m)
  • 594B7102700E
    Water-proof LAN cable (1.8 m)
  • 594B8152820E
    Water-proof USB cable (1.8 m)
  • 509000002200
    Adapter 24V 90W, M12 A-code 5P
  • 882B815A0A0E
    GOT815A-C1D2-Cover-DN Kit
  • 882B815A1A0E
    GOT815A-C1D2-Cover-UP Kit
  • E9C1000016
    WT DDR4 3200 SO-DIMM 32GB 260P SEC
  • E9C1000037
    WT DDR4 3200 SO-DIMM 16GB 260P SEC
  • E9C1000074
    WT DDR4 3200 SO-DIMM 8GB 260P Micron
  • E9C1000087
    WT DDR4 3200 SO-DIMM 4GB 260P SEC
  • E9C2F1512H
    WT 2.5" SSD 512GB FSA512GMW5T-DN MLC
  • E9C2F1256N
    WT 2.5" SSD 256GB FSA256GMW5T-DN MLC
  • E9C2F01280
    WT 2.5" SSD 128GB FSA128GMW5T-DN MLC
  • 822B815A050E
    GOT8xxA WiFi5 M2/WT 40/40CM C1D2 SFP

Download

Drivers

Date Description Version Download File
2023/04/21 Step 5. Graphics-part2 VA1.0
2023/04/21 Step 5. Graphics-part1 VA1.0
2023/04/21 Step 3. ME VA1.0
2023/04/21 Step 4. Serial IO VA1.0
2023/04/21 Step 2. LAN VA1.0
2023/04/21 Step 1. Chipset VA1.0

Software

Manual

Date Description Version Download File
2023/04/21 User's manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/09/28 UL CID2 Certificate
2023/09/28 UL62368-1 Certificate
2023/08/31 UKCA Declaration of Conformity
2023/08/31 CE-Conformity Declaration
2023/08/31 FCC Verification
2023/08/31 CE EMC Verification
