GOT821A-TGL-WCD

Status : Available

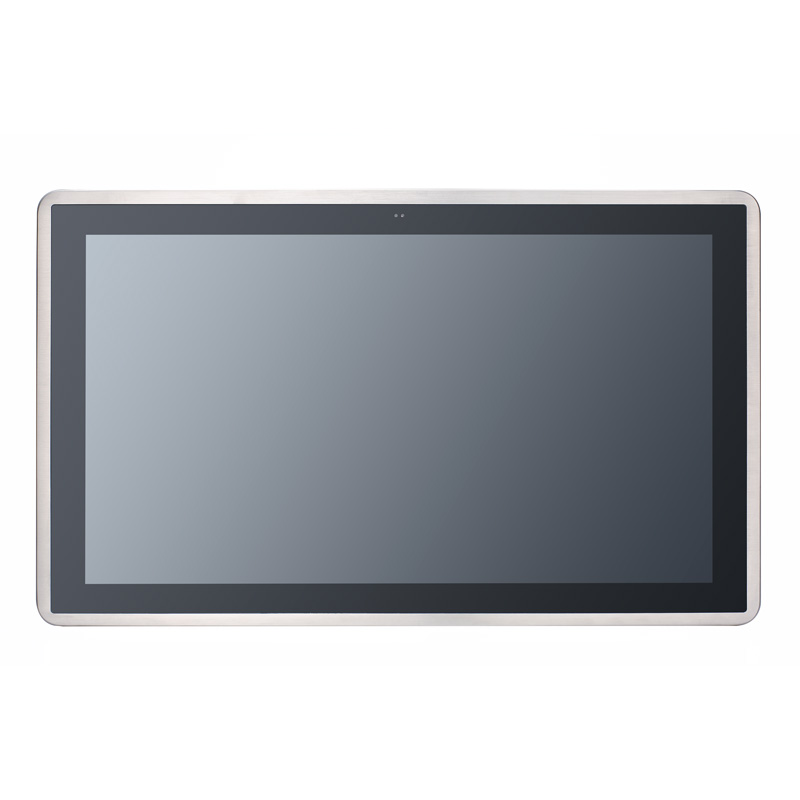

21.5" FHD TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1145G7E or Celeron® 6305E Processor and Flat Bezel Design (-20°C to +50°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT821A-TGL-WCD
GOT821A-TGL-WCD
GOT821A-TGL-WCD
PoE

PoE

UL508

UL508

UL1604

UL1604

IEC61850 & IEEE1613

IEC61850 & IEEE1613

IP30

IP30

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 21.5" FHD TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless-steel enclosure with SUS 304
  • 20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-1145G7E processor
  • Wi-Fi kit for wireless network connectivity (optional)
  • 12 to 24 VDC wide range power input
  • Supports VESA mount
  • M12-type connectors for harsh environments
Ready for Harsh Operating Conditions

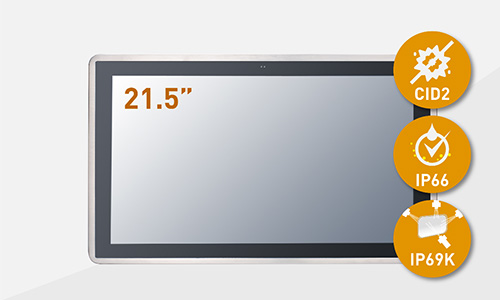

The GOT821A-TGL-WCD features high durability with SUS 304/316 stainless steel enclosure, IP69K-rated protection, and M12-type connectors. This robust stainless panel PC is also certified with Class I Division 2 (CID2) for option, making it ready for oil and gas applications or other industries with extreme operating conditions.
GOT821A-TGL-WCD
GOT821A-TGL-WCD

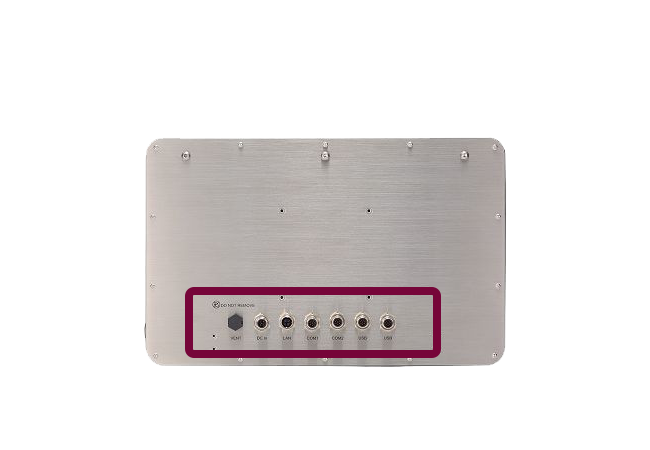

Waterproof M12-type Connectors

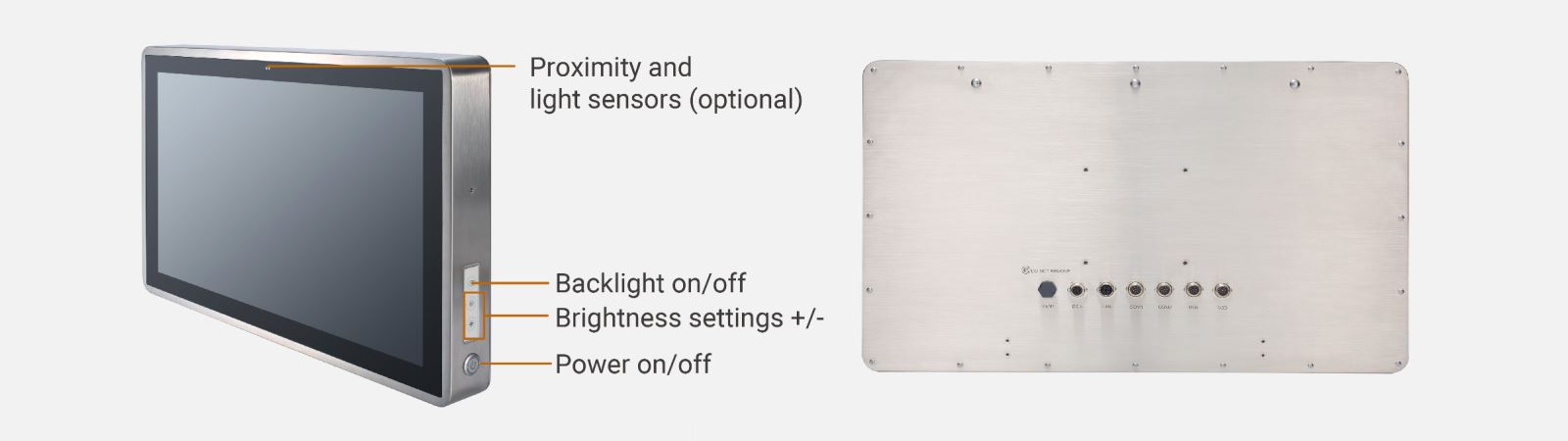

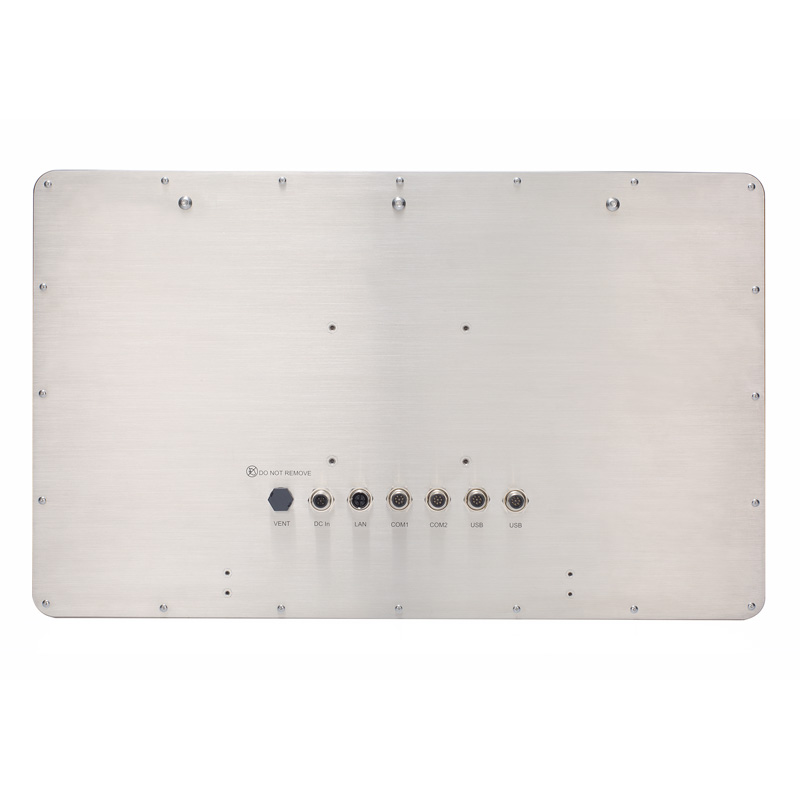

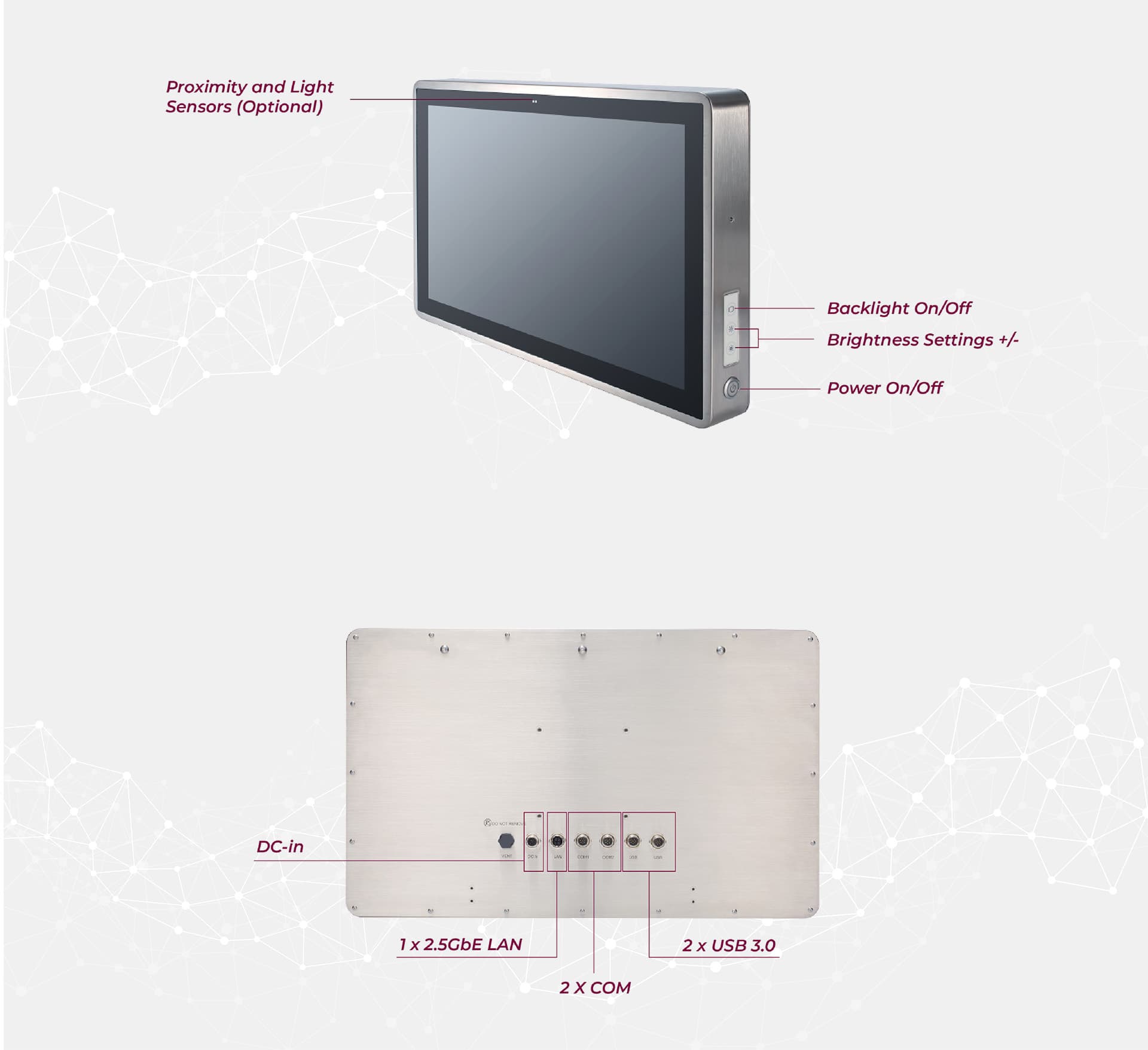

The robust GOT821A-TGL-WCD features abundant I/O ports by using M12 connectors, including two RS-232/422/485, four USB 2.0 ports, one 2.5GbE LAN port, and one DC power connector.
CID2 Certified 21.5” Stainless Steel Fanless Touch Panel Computer with IP69K/IP66 Protection
GOT821A-TGL-WCD
21.5-inch " FHD TFT Display
The GOT821A-TGL-WCD has a 21.5-inch FHD TFT display with projected capacitive multi-touch and 400 nits of brightness. The truly flat and seamless design allows for easy cleaning and maintenance.
Rugged & Reliable Design

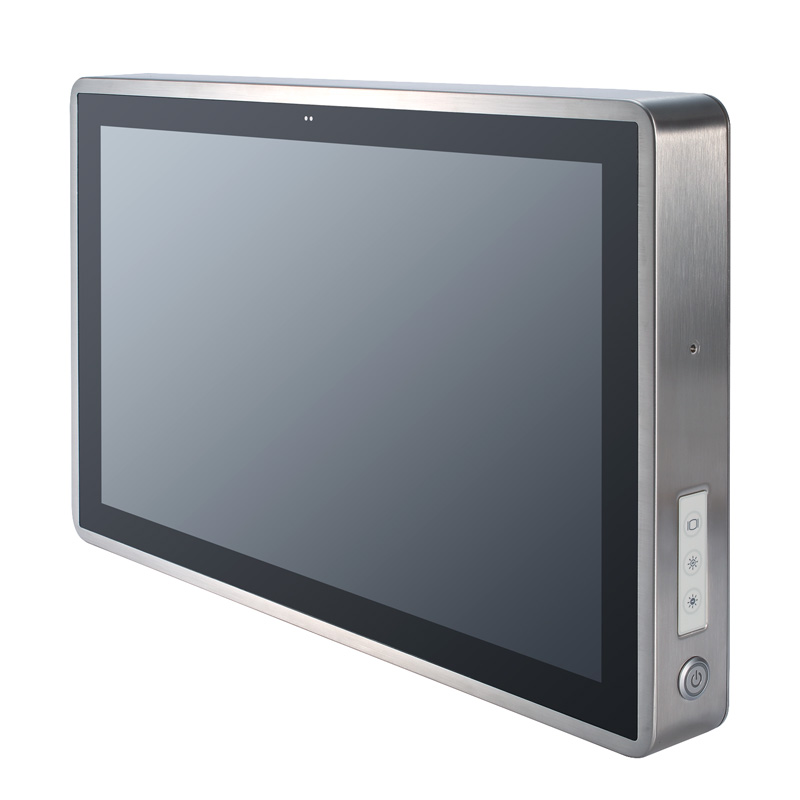

The GOT821A-TGL-WCD can operate under a wide temperature range from -20°C to +50°C and can withstand vibration up to 1G. It has wide range power input of 12 VDC to 24 VDC for various demanding industries.

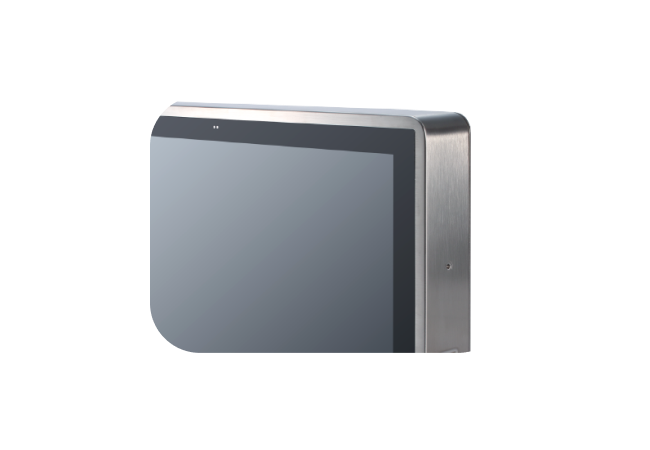

SUS 304/316 Stainless Steel Enclosure
The GOT821A-TGL-WCD has a SUS 304/316 stainless steel enclosure and full flat front bezel for better reliability and strict hygiene demands. It is ideal for food, beverage, and pharmaceutical applications.

Specifications

LCD Panel
  • 21.5" FHD TFT LCD
  • 400 nits
  • 1920 x 1080 pixels
CPU
  • Intel® Core™ i5-1145G7E 2.6 GHz or Celeron® 6305E 1.8GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, A-coded)
USB
  • 4 x USB 2.0 (A-coded)
Ethernet
  • 1 x 2.5GBASE-T Ethernet with Intel® I225 (TSN and X-Coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA SSD (9.5mm height)
Expansion
  • 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)
Others
  • TPM 2.0 onboard
Touchscreen
  • Projected capacitive multi-touch
Enclosure
  • Stainless steel (SUS) 304 or 316 (optional)
Power Supply
  • 1 x DC power connector (M12)
  • 12 to 24 VDC
Power Comsumption
  • 78.7W
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% - 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)
  • 552 x 55 x 338.4 mm (21.73" x 2.2" x 13.33")
Weight (net/gross)
  • 9.0 kg (19.84 lb) /12 kg (26.46 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
  • C1D2 compliance (must install I/O cover, 882B815A0A0E/882B815A1A0E)
EOS
  • Windows® 10 IoT, Windows® 11 IoT
Mounting
  • VESA mount

Ordering Information

  • GOT821A-TGL-WCD (P/N-E22B821A00)
    21.5" FHD fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Core™ i5-1145G7E, projected capacitive touch screen, 400 nits LCD, and 12 to 24 VDC power input
  • GOT821A-11C-WCD (P/N-E22B821A01)
    21.5" FHD fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Celeron 6305E, projected capacitive touch screen, 400 nits LCD, and 12 to 24 VDC power input
  • 594B8122100E
    Water-proof COM cable (1.8 m)
  • 594B7102700E
    Water-proof LAN cable (1.8 m)
  • 594B8152820E
    Water-proof USB cable (1.8 m)
  • 509000002200
    Adapter 24V 90W, M12 A-code 5P
  • 882B815A0A0E
    GOT815A-C1D2-Cover-DN Kit
  • 882B815A1A0E
    GOT815A-C1D2-Cover-UP Kit
