GOT818A-TGL-WCD

Status : Available

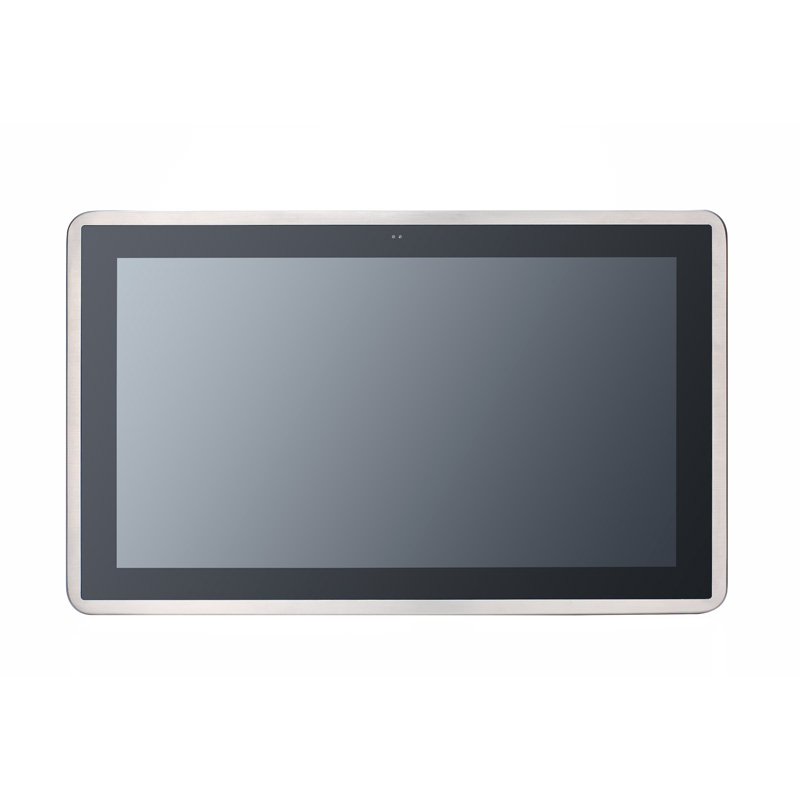

18.5" FHD TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1145G7E or Celeron® 6305E Processor and Flat Bezel Design (-20°C to +50°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT818A-TGL-WCD
GOT818A-TGL-WCD
GOT818A-TGL-WCD
PoE

PoE

UL508

UL508

UL1604

UL1604

IEC61850 & IEEE1613

IEC61850 & IEEE1613

IP30

IP30

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

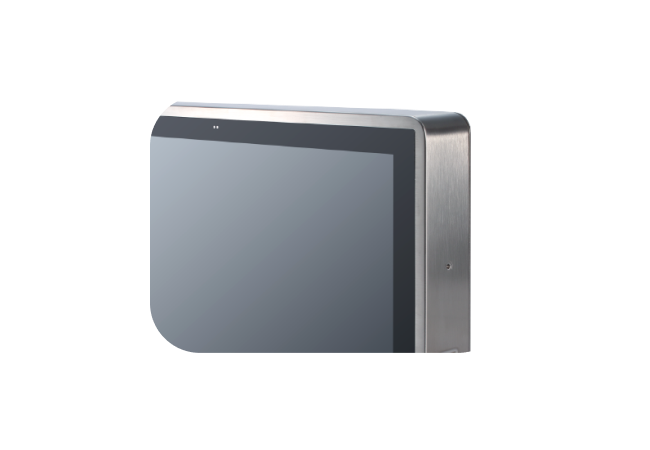

  • 18.5" FHD TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless-steel enclosure with SUS 304
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-1145G7E processor
  • Wi-Fi kit for wireless network connectivity (optional)
  • 12 to 24 VDC wide range power input
  • Supports VESA mount

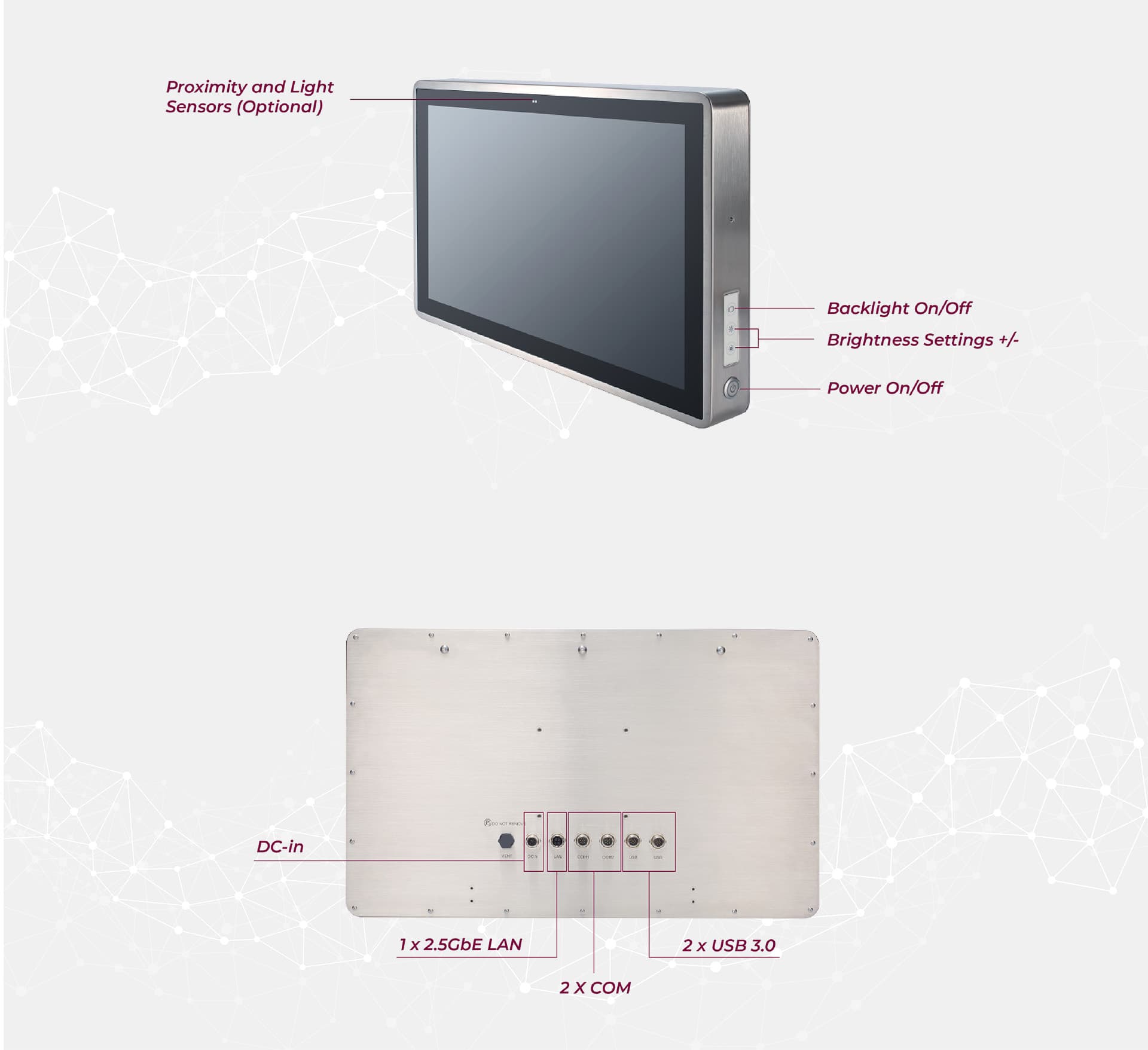

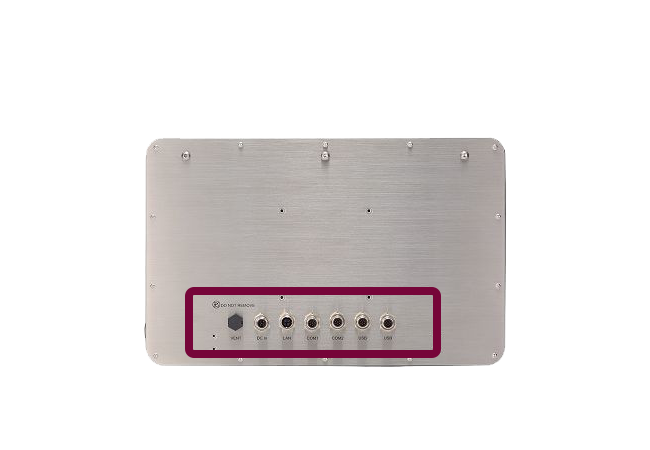

  • M12-type connectors for harsh environments

Specifications

LCD Panel
  • 18.5" FHD TFT LCD
  • 350 nits
  • 1920 x 1080 pixels
CPU
  • Intel® Core™ i5-1145G7E 2.6 GHz or Celeron® 6305E 1.8GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, A-coded)
USB
  • 4 x USB 2.0 (A-coded)
Ethernet
  • 1 x 2.5GBASE-T Ethernet with Intel® I225 (TSN and X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA SSD (9.5mm height)
Expansion
  • 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)
Others
  • TPM 2.0 onboard
Touchscreen
  • Projected capacitive multi-touch
Enclosure
  • Stainless steel (SUS) 304 or 316 (optional)
Power Supply
  • 1 x DC power connector (M12)
  • 12 to 24 VDC
Power Comsumption
  • 76.8W
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% - 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)
  • 485.0 x 55 x 302.4 mm (19.1" x 2.2" x 11.91")
Weight (net/gross)
  • 7.30 kg (16.09 lb)/10.5 kg (23.15 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
  • CID2 compliance (must install I/O cover: 882B818A0A0E/882B818A1A0E)
EOS
  • Windows® 10 IoT, Windows® 11 IoT
Mounting
  • VESA mount

Ordering Information

  • GOT818A-TGL-WCD (P/N-E22B818A00)
    18.5" FHD fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Core™ i5-1145G7E, projected capacitive touch screen, 350 nits LCD, and 12 to 24 VDC power input
  • GOT818A-11C-WCD (P/N-E22B818A01)
    18.5" FHD fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Celeron 6305E, projected capacitive touch screen, 350 nits LCD, and 12 to 24 VDC power input
  • 594B8122100E
    Water-proof COM cable (1.8 m)
  • 594B7102700E
    Water-proof LAN cable (1.8 m)
  • 594B8122820E
    USB cable M12-8P-F/2*A type 180 cm
  • 509000002200
    Adapter 24V 90W, M12 A-code 5P
  • 882B818A0A0E
    GOT818A-C1D2-Cover-DN Kit (E)
  • 882B818A1A0E
    GOT818A-C1D2-Cover-UP Kit (E)

Download

Drivers

Date Description Version Download File
2023/10/19 Graphic-2 VA1.0
2023/10/19 Graphic-1 VA1.0
2023/10/19 ME VA1.0
2023/10/19 Serial IO VA1.0
2023/10/19 LAN VA1.0
2023/10/19 Chipset VA1.0

Software

Manual

Date Description Version Download File
2023/10/19 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/08/31 FCC Verification
2023/08/31 CE EMC Verification
2023/07/05 UKCA Declaration of Conformity
2023/07/05 CE-Conformity Declaration

You Might Also Like

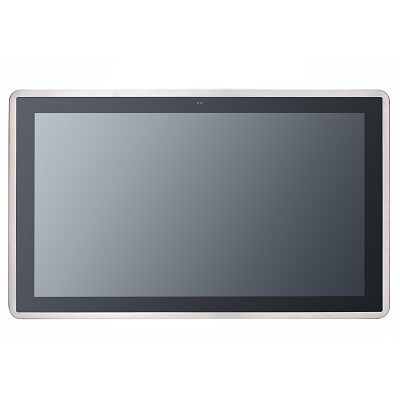

Picture of GOT821A-TGL-WCD
