FAB116

Status : Available

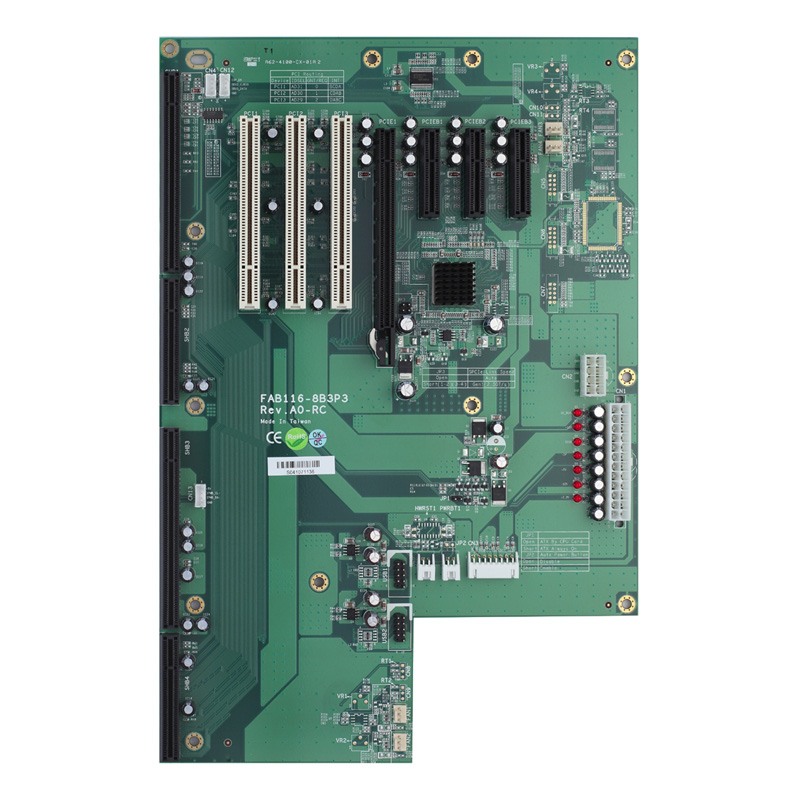

8-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
FAB116
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Designed for PICMG 1.3 SBC
  • Compatible with AX60551 and AX60552 chassis
  • Supports one PICMG 1.3 CPU card slot, three PCIe x4 slots, one PCIe x16 slot, and three 32bit/33MHz PCI slots
The FAB116 features a PICMG 1.3 CPU card slot, one PCIe x16 slot, three PCIe x4 slots, three PCI, and built in a 24-pin ATX power connector and 8-pin connector for thermal detected board. Two high speed USB 2.0 ports are featured. The FAB116 is compatible with Axiomtek's AX60551 and AX60552 chassis.

Specifications

The object is temporarily unavailable, please check back later.

Ordering Information

  • FAB116
    8-slot ATX-supported PICMG 1.3 Bus Passive Backplane

Download

Drivers

Software

Manual

Date Description Version Download File
2022/04/12 Quick Manual V1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/11/21 UKCA Declaration of Conformity
2023/11/21 CE-Conformity Declaration
