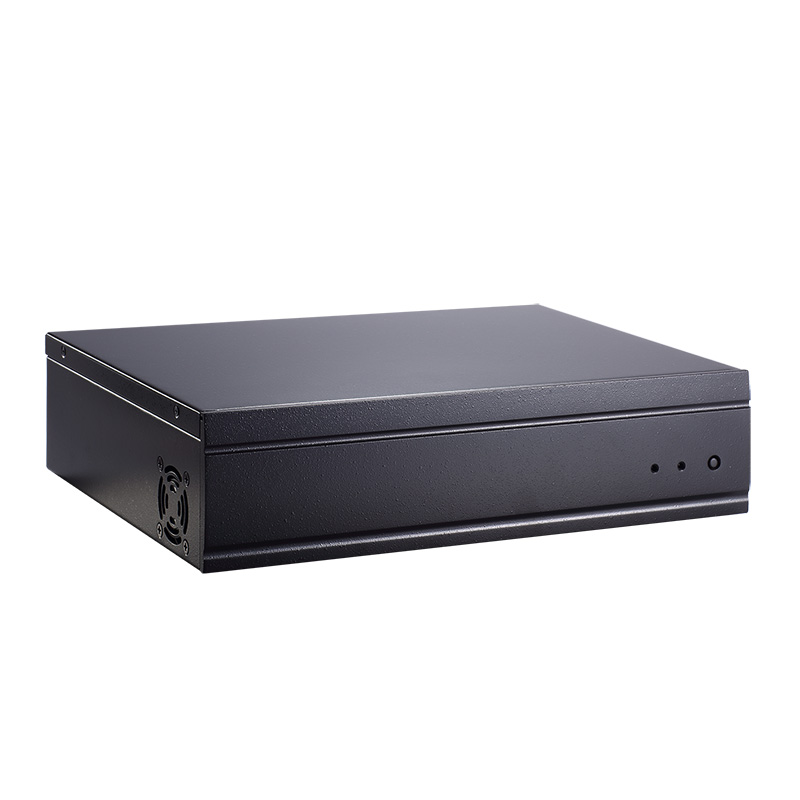

ECM500

Status : Available

Embedded Chassis for Mini-ITX SBC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ECM500
ECM500
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Designed for low power Mini-ITX SBC
  • One 2.5" SSD/HDD supported
  • Supports one PCI Express card slot
  • Side cooling holes enhance the ventilation effect
  • Three D-Sub connectors at the rear side

Specifications


Height
  • N/A
Expansion
  • 1 x PCI Express card slot
Drive Bay
  • 1 x 2.5" HDD (9.5 mm height)
Cooling System
  • N/A
System Board
  • Mini-ITX SBC
Backplane Options
  • N/A

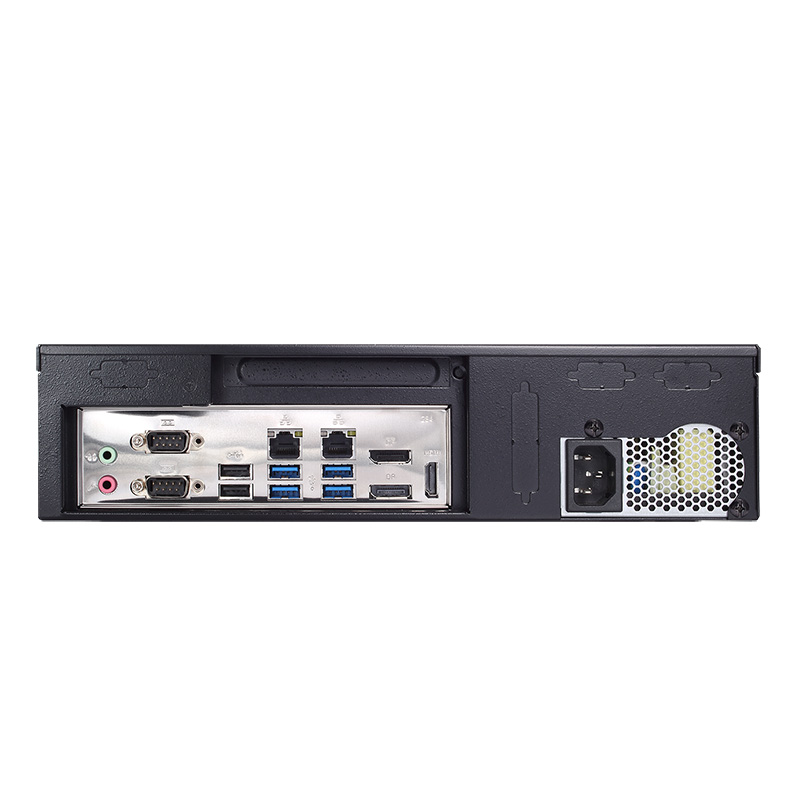

I/O Interface
  • 1 x Standard Mini-ITX I/O bracket space
  • 3 x D-Sub connector
Front Panel Indicators
  • 1 x Green LED for system power-on
  • 1 x Red LED HDD Active
Front Panel Controls
  • 1 x Power button
Power
  • ATX 250W
Operating Temperature
  • N/A
Dimensions
(W x D x H)
  • 217.2 x 300 x 74 mm (8.55" x 11.81" x 2.91")
Weight (net/gross)
  • N/A
Certifications
  • EMI pre-scan meets EN55032 Class A

Ordering Information

  • ECM500 (P/N-E272500101)
    Embedded MicroBox for Mini-ITX SBC
  • 50916624000E
    Flex ATX 250W FSP250-50FGBBIM w/cable
  • 50954724200E ATX_AUTO 300W FSP300-57FCB L=750mm
  • SBC Options
    MANO842/MANO300/MANO500/MANO520/MANO540/MANO560
