AX93322

Status : Available

8- Port LAN Module with Intel® I350-AM4 GbE Ethernet Controller

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX93322
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® I350-AM4 Ethernet controller
  • 8 SFP or 4 SFP and 4 RJ-45
  • PCIe 2.0 x8 golden finger
  • 2-pair LAN Bypass (optional)
  • Supports Intel® Virtualization Technology for connectivity
  • RoHS compliant

The AX93322 LAN module is built with an Intel® I350-AM4 GbE Ethernet controller, incorporating Jumbo Frames, Intel® VT-c and VMDq to optimize the processing of network data traffic. It also provides an optional LAN bypass function to ensure smooth network connectivity at all times, making it an ideal solution for users seeking better protection of their essential business communications in the event of a power outage, system shutdown or crash.

Specifications


Controller
  • Intel® I350-AM4
Speed/Connector
  • 8 x SFP or 4 x SFP & 4 x RJ-45
Interface
  • PCIe 2.0 x8
LAN Bypass
  • Optional (refer to ordering Information)
Jumbo Frames
  • Yes
Virtualization
  • VMDq, SR-IOV
Acceleration
  • DPDK
Watchdog Timer
  • Yes
Available Models
  • NA363R, NA580, NA590, NA592, NA720, NA721, NA860, NA861, and NA870
Operation Temperature
  • 0°C to +40°C (+32°F to +104°F)
Humidity
  • 10% - 90% RH, non-condensing
Dimensions
  • 78.9 x 175 x 42.8 mm (3.11" x 6.89" x 1.69")

Ordering Information

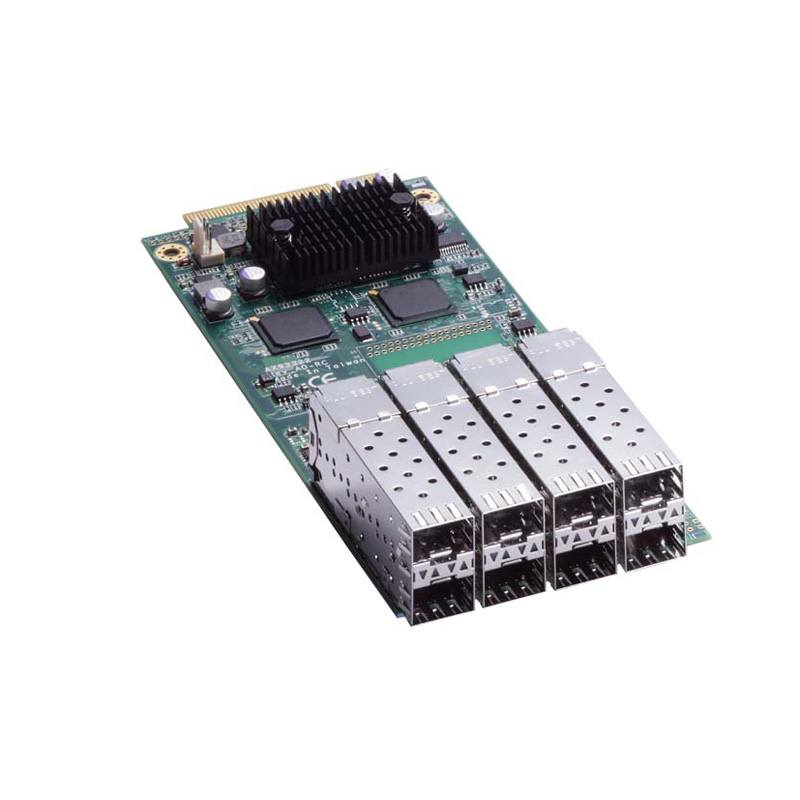

  • AX93322-8FI-350 LAN Module (P/N-E393322102)
    LAN module with Intel® I350-AM4 and 8 fiber LAN ports with LAN tray
  • AX93322-8MIL-350 LAN Module (P/N-E393322103)
    LAN module with Intel® I350-AM4, 4 copper, and 4 fiber LAN ports with 2-pair LAN bypass

Download

This object is currently under update, please visit later.
