AX93358

Status : Available

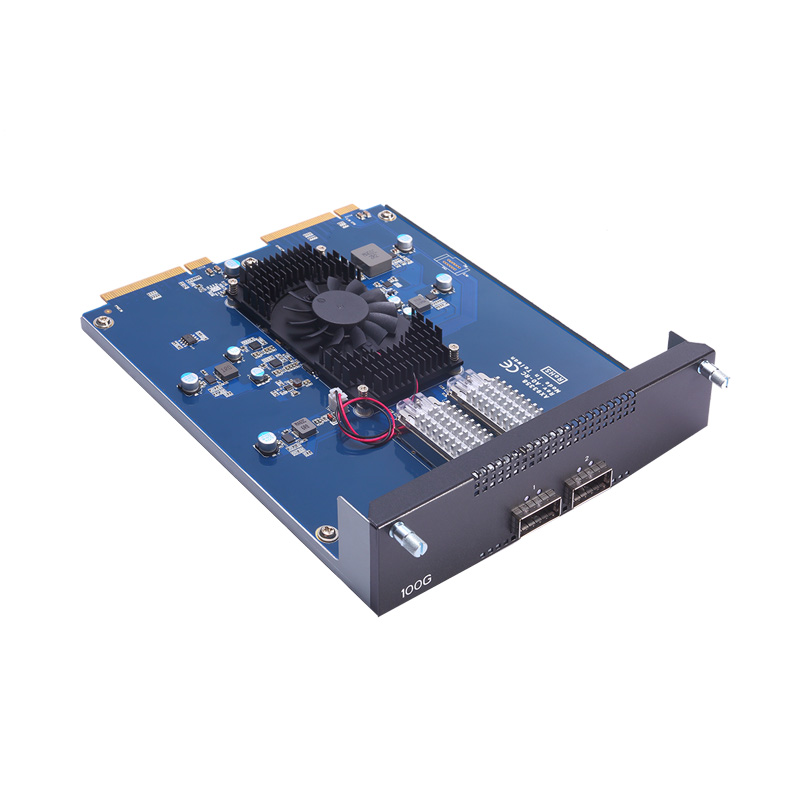

Dual-Port 100 Gb/s QSFP28 Ethernet Module with Intel® E810

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX93358
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Supports multiple port speeds with a single architecture: 100/50/25/10/1GbE
  • Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)
  • Enhanced server virtualization: 256 VFs, 768 VSIs
  • Enhanced Data Plane Development Kit (DPDK)
  • Suitable for data centers or cloud computing

The AX93357 is a dual-port 100GbE QSFP28 Ethernet module with the Intel® E810-CAM2 controller that supports a maximum of 100Gb/s data rate per port with a single architecture. The AX93357 is equipped with PCIe 4.0 x16 host interface and compatible with Axiomtek’s latest 3rd generation Intel® Xeon-based (Ice Lake-SP) network appliance, NA870, for improving the efficiency of performing workloads. This high-bandwidth Ethernet module is specially designed to provide broad interoperability, critical performance optimizations, and increased agility for 5G networks, communications, cloud computing, data centers, and enterprise IT network solutions.

Specifications


Controller
  • Intel® E810-CAM2
Speed/Connector
  • 2 x QSFP28
Interface
  • 2 x PCIe Gen3 x8 (Double slot width)
LAN Bypass
  • N/A
Jumbo Frames
  • Yes
Virtualization
  • SR-IOV with up to 256 VFs, 768 VSIs
Acceleration
  • N/A
Watchdog Timer
  • Yes
Available Models
  • NA870
Operation Temperature
  • 0°C to +40°C (+32°C to +140°C)
Humidity
  • 10% - 90% RH, non-condensing
Dimensions
  • 158.10 x 184.78 x 42.80 mm

Ordering Information

  • AX93358 (P/N-E393358100)
    Dual-Port 100 Gb/s QSFP28 module with Intel E810, double-width LAN tray

Download

This object is currently under update, please visit later.
