ECM300

Status : Available

Embedded Chassis with Expansion Slots for Mini-ITX SBC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ECM300
ECM300
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Designed for Mini-ITX SBC with expansion slots
  • One 3.5" or 2.5" HDD drive bay
  • 2 PCIe or 1 PCIe x16 expansion slots supported
  • Slim design with 1 system fan
  • 250W power supply supported
  • Easy and quick customization

Specifications


Height
  • N/A
Expansion
  • 1 x PCIe x16 or 2 x PCIe x8
Drive Bay
  • 1 x 3.5" HDD or 1 x 2.5" HDD (9.5 mm height)
Cooling System
  • 80 x 80 mm system fan
System Board
  • Mini-ITX SBC
Backplane Options
  • N/A
I/O Interface
  • 2 x USB 2.0

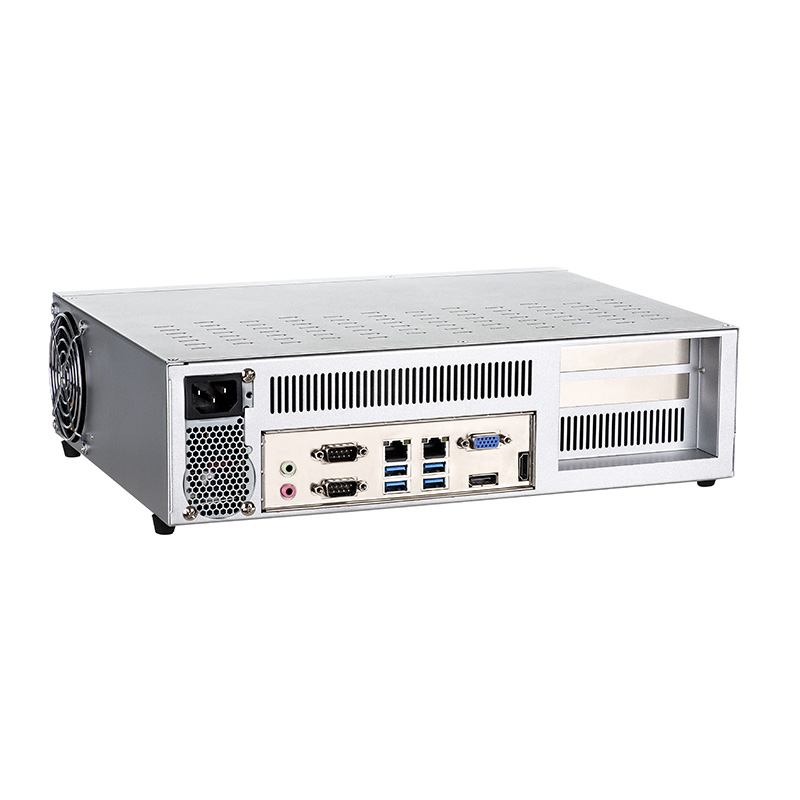

  • 1 x standard Mini-ITX I/O bracket space

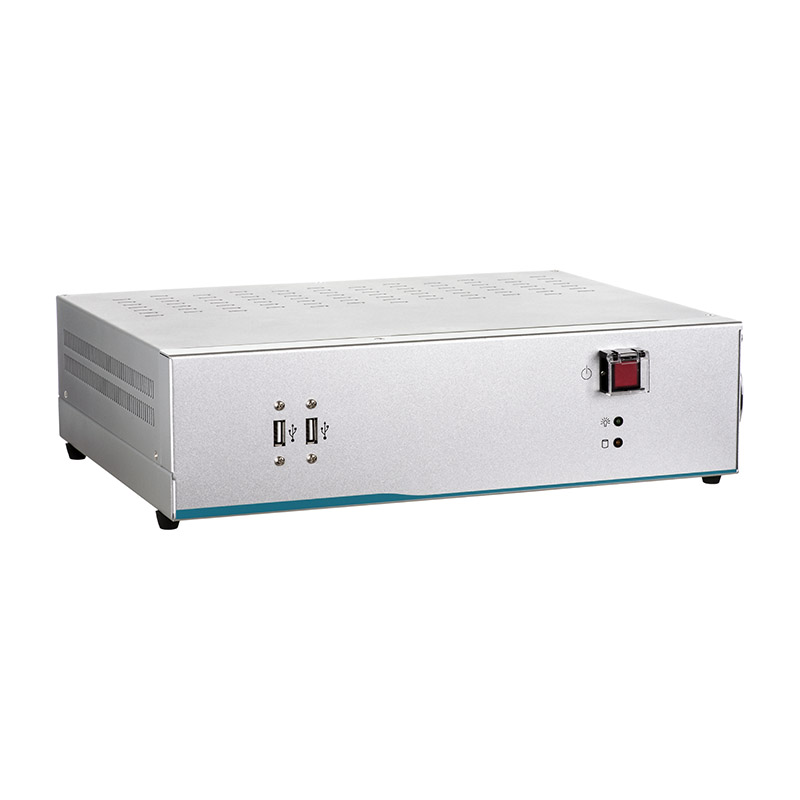

Front Panel Indicators
  • 1 x Green LED for system power-on
  • 1 x Orange LED for HDD active
Front Panel Controls
  • 1 x ATX power button with cover
Power
  • ATX 250W
  • Input: AC 115 to 230V
  • Output: +3.3V @ 10A, +5V @ 10A, +12V @ 8.5A, -12V @ 0.4A, +5VSB @ 1A
Operating Temperature
  • N/A
Dimensions
(W x D x H)
  • 335 x 250 x 93.5 mm (13.2" x 9.8" x 3.68")
Weight (net/gross)
  • N/A
Certifications
  • EMI pre-scan meets EN 55022 Class A

Ordering Information

  • ECM300
    Embedded chassis with expansion slots for Mini-ITX SBC
  • SBC Options
    MANO520-H310 (P/N-E38M520100), MANO500-Q170 (P/N-E38M500106), MANO500-H110 (P/N-E38M500100)
  • 5A009672300E
    AX96723 (1 x PCIe x16 riser card)
  • 83961471000E
    AX96147 (2 x PCIe x8 riser card)
  • 881723000A0E
    Wall mount kit
  • 50916624000E
    250W AC power supply
  • 82723001030E
    250W fan bracket kit
  • Power cord

Download

Drivers

Software

Manual

Date Description Version Download File
2020/11/03 2D drawing VA1

Design Guide

Technical Announcement

Certificates
